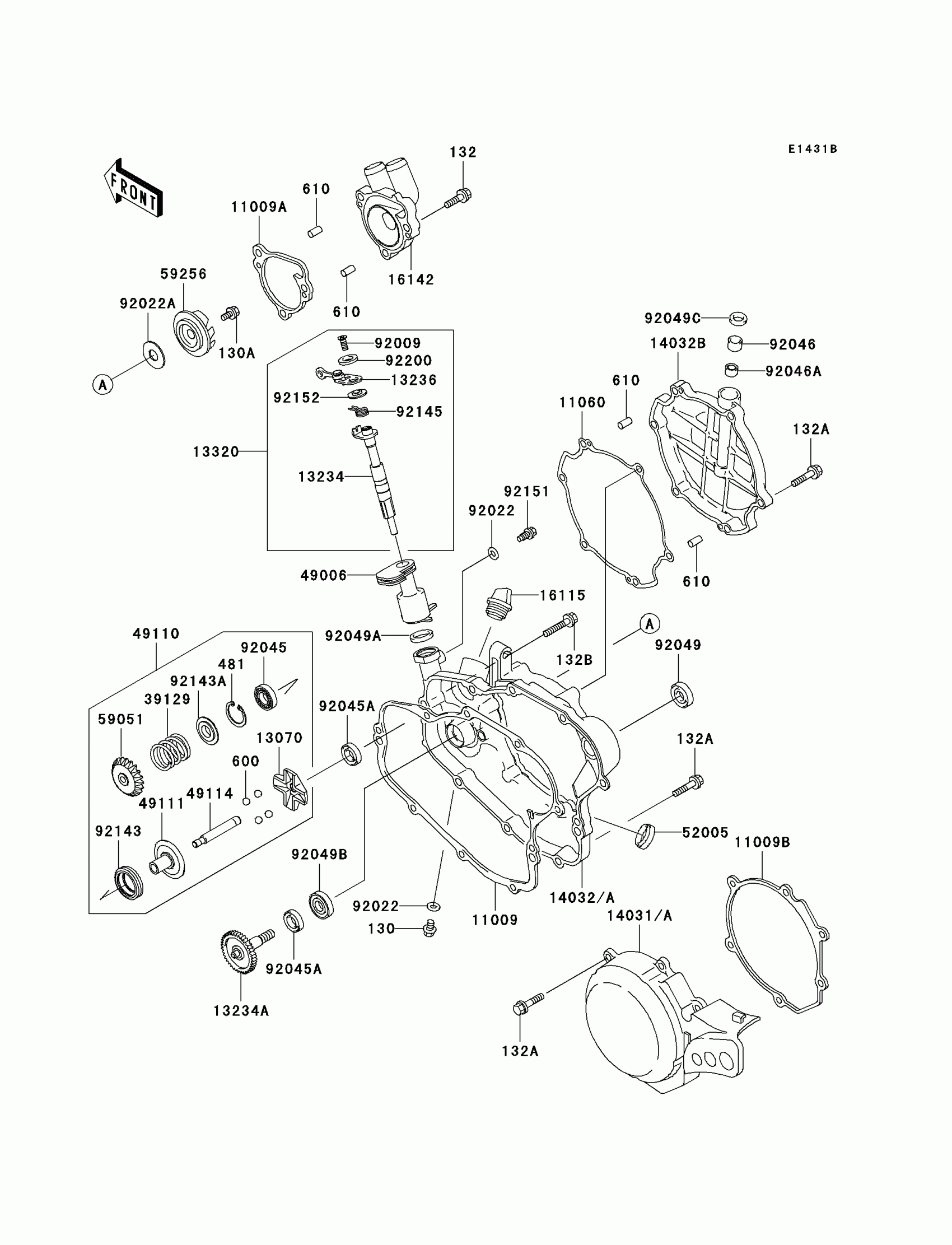

Kawasaki KX100 Engine Cover(s)(D4/D5) Diagram

#

Description
Price

130

BOLT-FLANGED,6X8

130B0608

$0.67

11009

GASKET,CLUTCH COVER

11009-1971

Unavailable

11009A

GASKET,PUMP COVER

11009-1972

$7.51

11009B

GASKET,GENERATOR COVER

11009-1973

$18.74

11060

GASKET,CLUTCH COVER

11060-1795

$17.39

13070

GUIDE,GOVERNOR

13070-1309

$53.37

13234

SHAFT-COMP

13234-0008

$48.97

13234A

SHAFT-COMP,WATER PUMP

13234-1103

$71.47

13236

LEVER-COMP

13236-0023

$6.28

13320

LEVER-ASSY

13320-0002

Unavailable

14031

COVER-GENERATOR

14031-0029

$77.66

14032A

COVER-CLUTCH,INSIDE

14032-0041

$213.14

14032B

COVER-CLUTCH,OUTSIDE

14032-1463

$83.56

16115

CAP-OIL FILLER

16115-018

$10.56

16142

COVER-PUMP,WATER

16142-1144

$77.97

39129

SPRING-GOVERNOR

39129-1022

$6.31

49006

BOOT,GOVERNOR

49006-1313

$9.40

49110

GOVERNOR-ASSY

49110-0001

$167.94

49111

HOLDER-GOVERNOR WEIGHT

49111-1064

$26.65

49114

SHAFT-GOVERNOR

49114-1106

$19.32

52005

GAUGE,OIL LEVEL

52005-1055

$14.76

59051

GEAR-SPUR

59051-1412

$29.95

59256

IMPELLER

59256-1064

$36.12

92009

SCREW,6X14

92009-1958

Unavailable

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,5.2X13X1

92022-1380

$4.31

92045

BEARING-BALL

92045-0010

$34.12

92045A

BEARING-BALL,608MC3

92045-1305

$12.37

92046

BEARING-NEEDLE,HK1010FM

92046-1160

$16.58

92046A

BEARING-NEEDLE,6BTM109

92046-1217

$17.17

92049

SEAL-OIL,SB16244

92049-002

$8.86

92049A

SEAL-OIL,AG0353-F0

92049-1262

$6.57

92049B

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$17.95

92049C

SEAL-OIL,BG1408F0

92049-1414

$5.52

92143

COLLAR

92143-1932

$20.52

92143A

COLLAR

92143-1933

$9.27

92145

SPRING

92145-0089

$4.63

92151

BOLT,FLANGED,6X11

92151-1180

$2.46

92152

COLLAR,LEVER

92152-0085

$4.18

92200

WASHER,LEVER

92200-0040

$3.74

130A

BOLT-FLANGED

130P0510

$1.76

132

BOLT-FLANGED-SMALL

132G0620

$2.33

132A

BOLT-FLANGED-SMALL

132G0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

481

CIRCLIP-TYPE-C,24MM

481J2400

$3.40

600

BALL-STEEL,5/16

600A1000

$0.73

610

ROLLER,4X8

610A0408

$4.31
