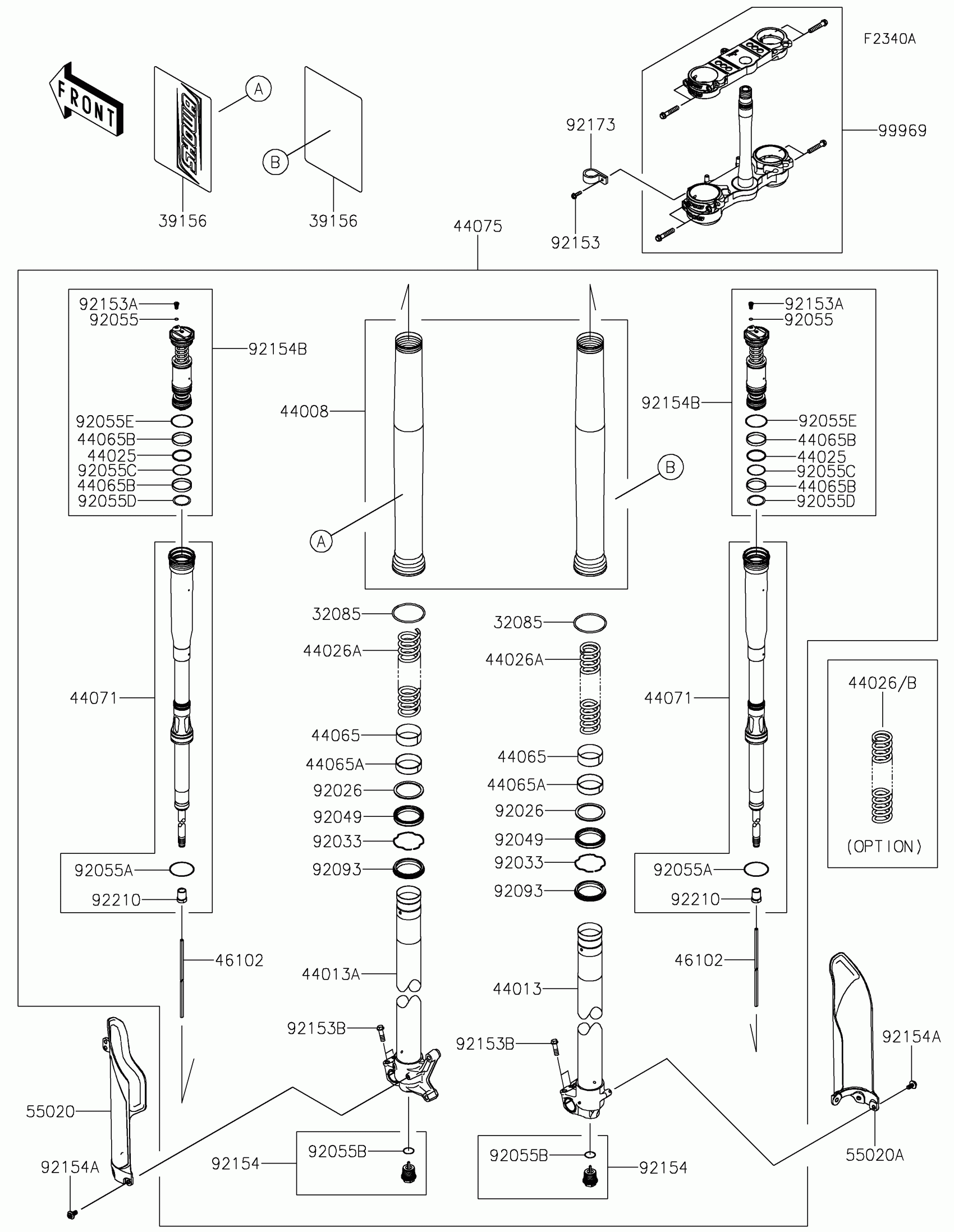

Kawasaki KX™450SR Front Fork(LPFNN) Diagram
#
32085
STOPPER,RING
32085-0773
$6.00
39156
PAD,PROTECTION
39156-2824
$43.27
44008
PIPE-FORK OUTER,SET(LH/RH)
44008-0121
$1,506.48
44013
PIPE-FORK INNER,RH
44013-0410
$970.66
44013A
PIPE-FORK INNER,LH
44013-0411
$970.66
44025
RING-FORK PISTON
44025-0010
$20.04
44026
SPRING-FRONT FORK,K=4.8N/MM
44026-0226
$111.27
44026A
SPRING-FRONT FORK,K=5.0N/MM
44026-0227
$111.27
44026B
SPRING-FRONT FORK,K=5.2N/MM
44026-0228
$111.27
44065
BUSHING-FRONT FORK
44065-0049
$15.06
44065A
BUSHING-FRONT FORK
44065-0050
$14.49
44065B
BUSHING-FRONT FORK
44065-0062
$20.44
44071
DAMPER-ASSY,FORK
44071-1602
$481.45
44075
DAMPER-SET-FORK
44075-0527
$4,093.74
46102
ROD
46102-0637
$14.17
55020
GUARD,FORK,LH,EBONY
55020-2231-6C
$55.96
55020A
GUARD,FORK,RH,EBONY
55020-2232-6C
$55.96
92026
SPACER,SEAL
92026-0785
$4.18
92033
RING-SNAP
92033-0751
$6.18
92049
SEAL-OIL
92049-0768
$32.48
92055
RING-O
92055-0094
$2.97
92055A
RING-O
92055-0744
$3.72
92055B
RING-O
92055-0804
$1.63
92055C
RING-O
92055-0805
$4.72
92055D
RING-O
92055-0806
$2.32
92055E
RING-O
92055-0807
$5.65
92093
SEAL
92093-0657
$21.59
92153
BOLT,FLANGED
92153-1397
$3.90
92153A
BOLT,PLUG
92153-1398
$3.39
92153B
BOLT,FLANGED,8X40
92153-1399
$4.65
92154
BOLT,CNT
92154-2286
$43.54
92154A
BOLT
92154-3776
$6.63
92154B
BOLT,FORK
92154-7121
$225.91
92173
CLAMP
92173-1579
$15.41
92210
NUT,LOCK
92210-0922
$15.20
99969
FORK CLAMP,XTRIG
99969-3880
$668.53
