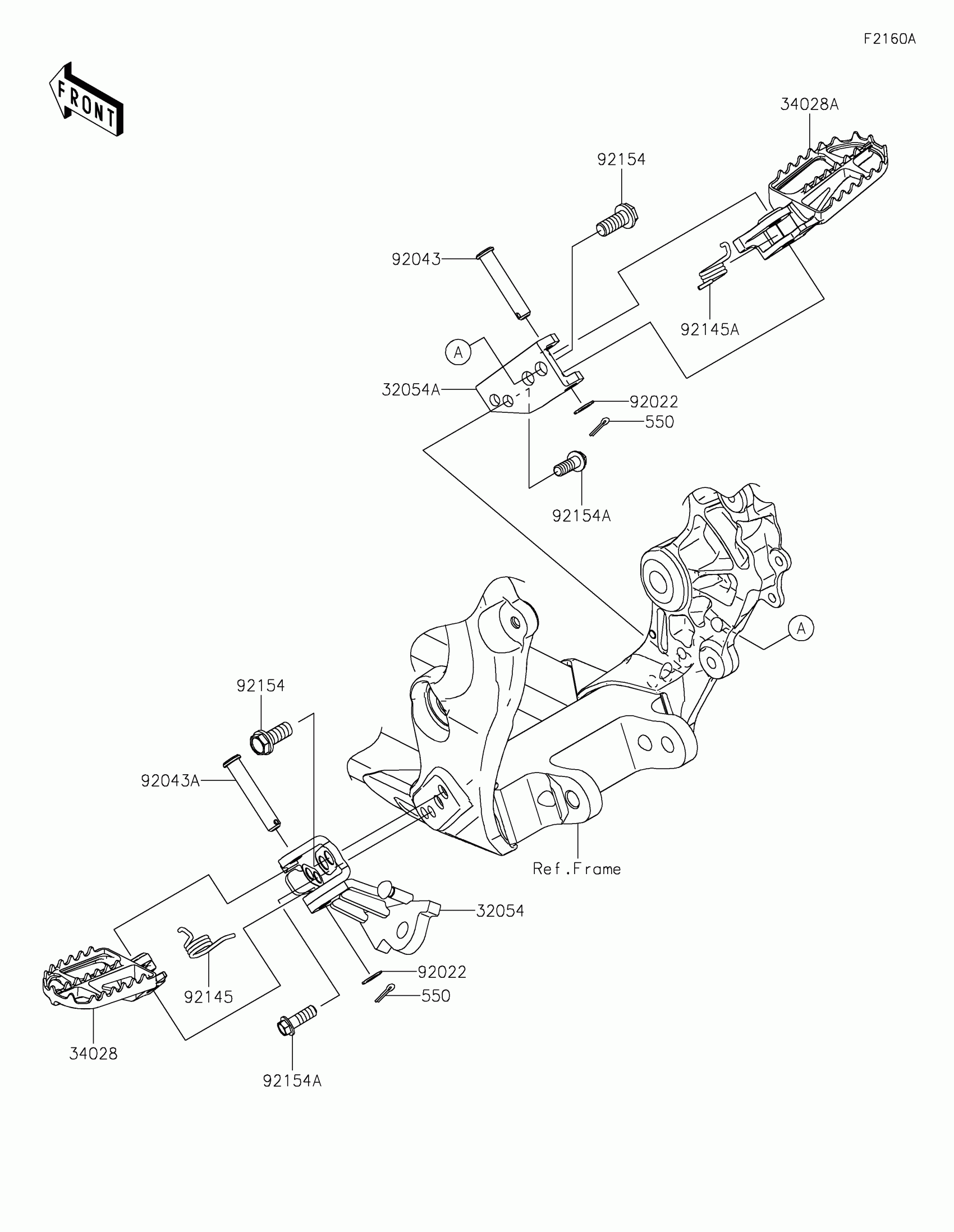

Kawasaki KX™250X Footrests(DPFNN/DRFNN) Diagram

Description

Price

32054

BRACKET-STEP,LH

32054-0094

$143.67

32054A

BRACKET-STEP,RH

32054-0096

$27.80

34028

STEP,WIDE,LH

34028-0360

$67.20

34028A

STEP,WIDE,RH

34028-0361

$67.20

92022

WASHER,10.2X16X1

92022-1829

$4.31

92043

PIN,10X42.5

92043-0074

$10.37

92043A

PIN,10X53

92043-1743

$13.60

92145

SPRING,STEP,LH

92145-0819

$5.01

92145A

SPRING,STEP,RH

92145-0820

$5.01

92154

BOLT,FLANGED,10X23

92154-0545

$5.05

92154A

BOLT,8X23,MEC

92154-2987

$2.95

550

PIN-COTTER,3.0X20

550S3020

$3.63
