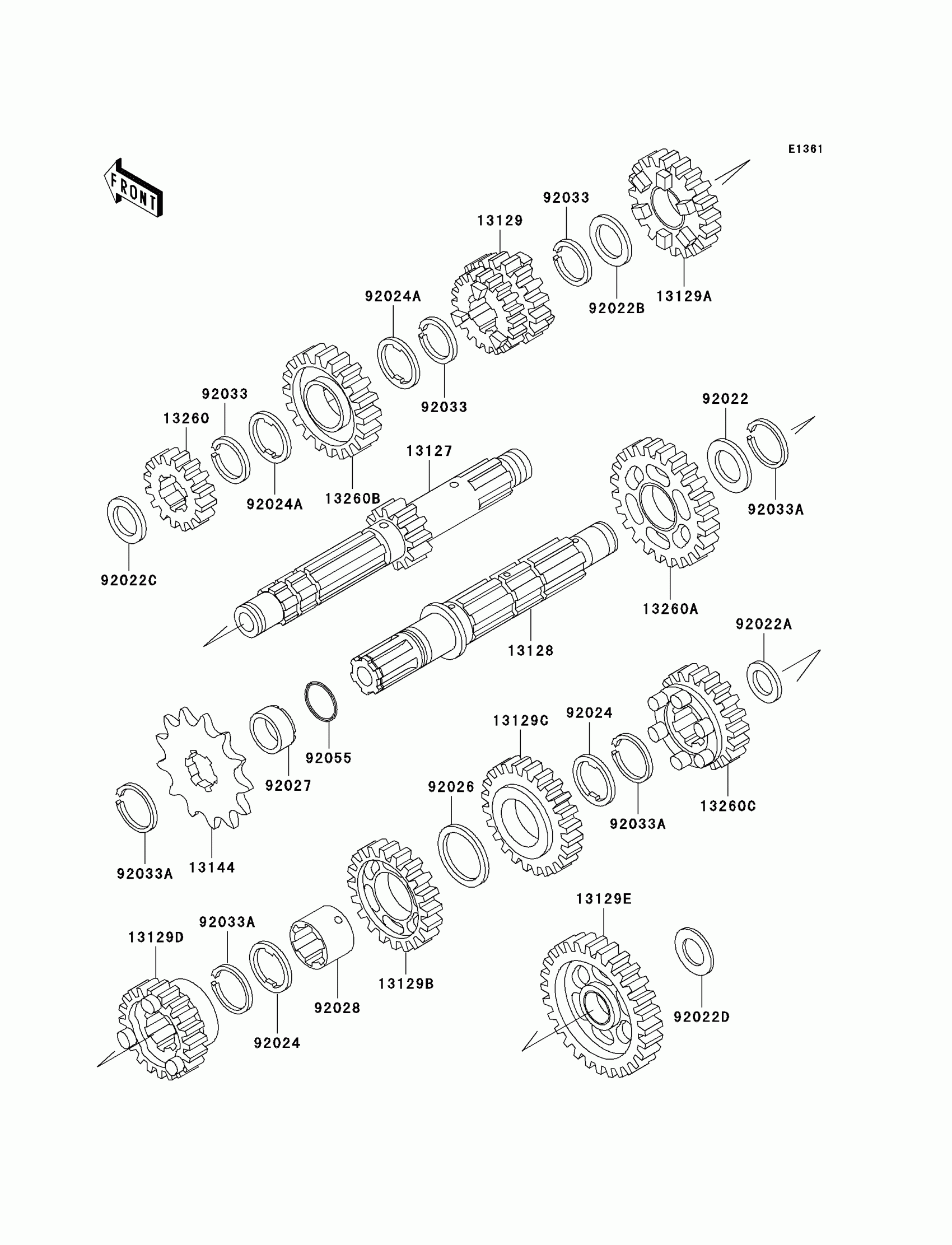

Kawasaki KLX300R Transmission(KLX300-A7) Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,10T

13127-1223

$221.72

13128

SHAFT-TRANSMISSION OUTPUT

13128-1213

$211.43

13129

GEAR,INPUT 3RD&4TH,18&20T

13129-1602

$156.38

13129A

GEAR,INPUT 5TH,20T

13129-1603

$135.38

13129B

GEAR,OUTPUT 3RD,27T

13129-1650

$125.01

13129C

GEAR,OUTPUT 4TH,25T

13129-1651

$135.38

13129D

GEAR,OUTPUT TOP,19T

13129-1653

$135.38

13129E

GEAR,OUTPUT LOW,30T

13129-1800

$148.17

13144

SPROCKET-OUTPUT,14T

13144-1005

$35.93

13260

GEAR,INPUT 2ND,15T

13260-1385

$135.38

13260A

GEAR,OUTPUT 2ND,30T

13260-1386

$125.01

13260B

GEAR,INPUT TOP,21T

13260-1595

$139.73

13260C

GEAR,OUTPUT 5TH,21T

13260-1596

$135.38

92022

WASHER,25.3X30X0.5

92022-159

$8.58

92022A

WASHER,17.3X25X0.5

92022-1614

$4.31

92022B

WASHER,22.3X27X0.5

92022-198

$5.52

92022C

WASHER,17.3X28X1

92022-255

$8.58

92022D

WASHER,17.3X30X1.4

92022-270

$9.84

92024

WASHER,TOOTHED,22.5X31X0.5

92024-038

$6.22

92024A

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

92026

SPACER,30X38X1.0

92026-079

$8.86

92027

COLLAR,25X32X15.3

92027-1800

$28.72

92028

BUSHING,OUTPUT GEAR

92028-1016

$28.88

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,24MM

92033-026

$8.79

92055

RING-O,21.5X1.5

92055-1293

$5.00
