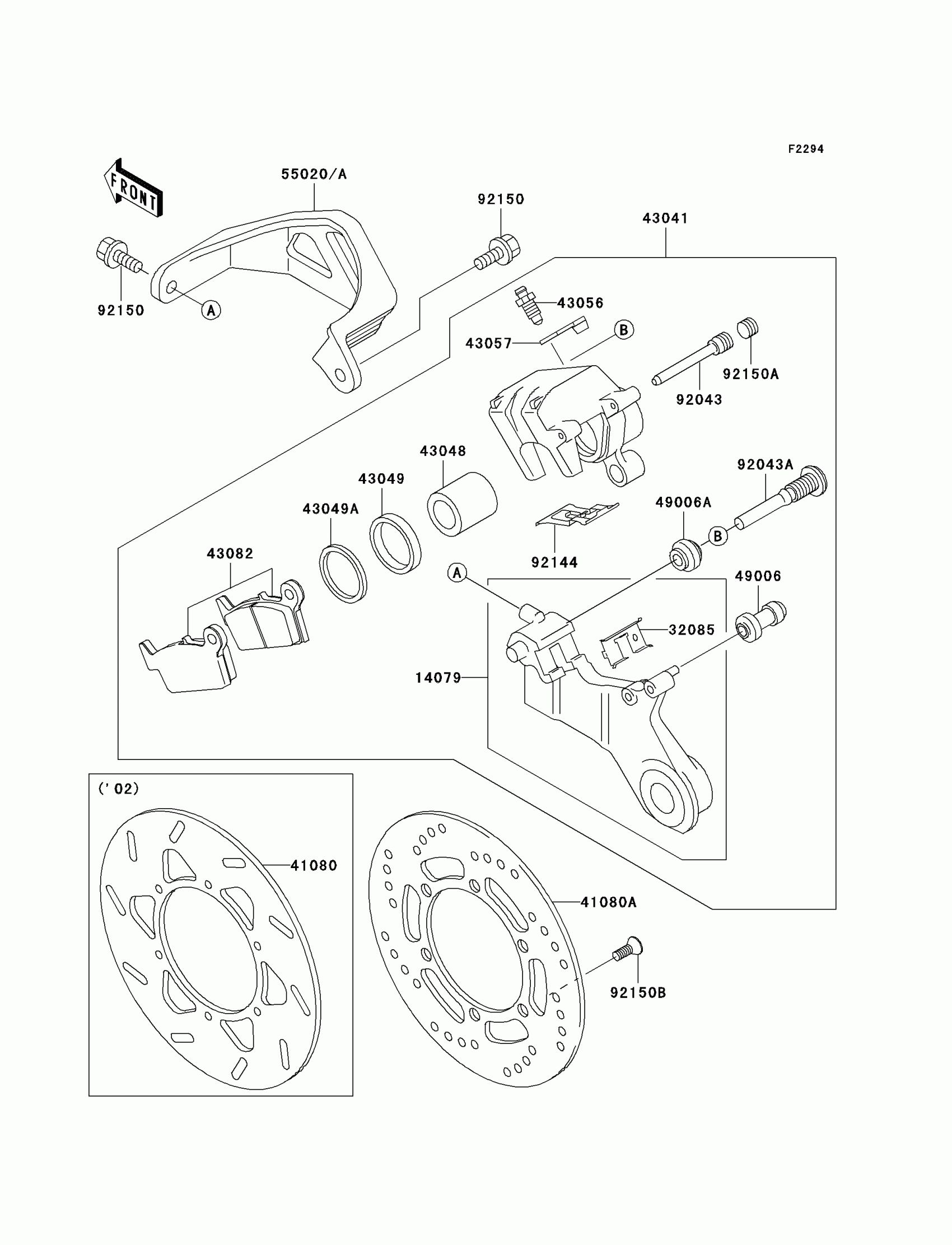

Kawasaki KLX300R Rear Brake(KLX300-A7/A8) Diagram

Description

Price

14079

HOLDER-ASSY,REAR CALIPER

14079-1105

$166.48

32085

STOPPER,PAD

32085-1386

$8.86

41080A

DISC,RR

41080-1528

$312.36

43041

CALIPER-ASSY,RR

43041-1577

$389.27

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1173

$45.69

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

55020

GUARD,RR CALIPER,WHITE

55020-1488-RZ

$30.62

92043

PIN,HANGER

92043-1507

$13.75

92043A

92043-1508

$13.75

92144

SPRING,PAD

92144-1819

$8.03

92150

BOLT,6X14

92150-1340

$5.07

92150A

BOLT,PLUG

92150-1692

$7.84

92150B

BOLT,DISC PLATE,8X15

92150-1811

$5.00
