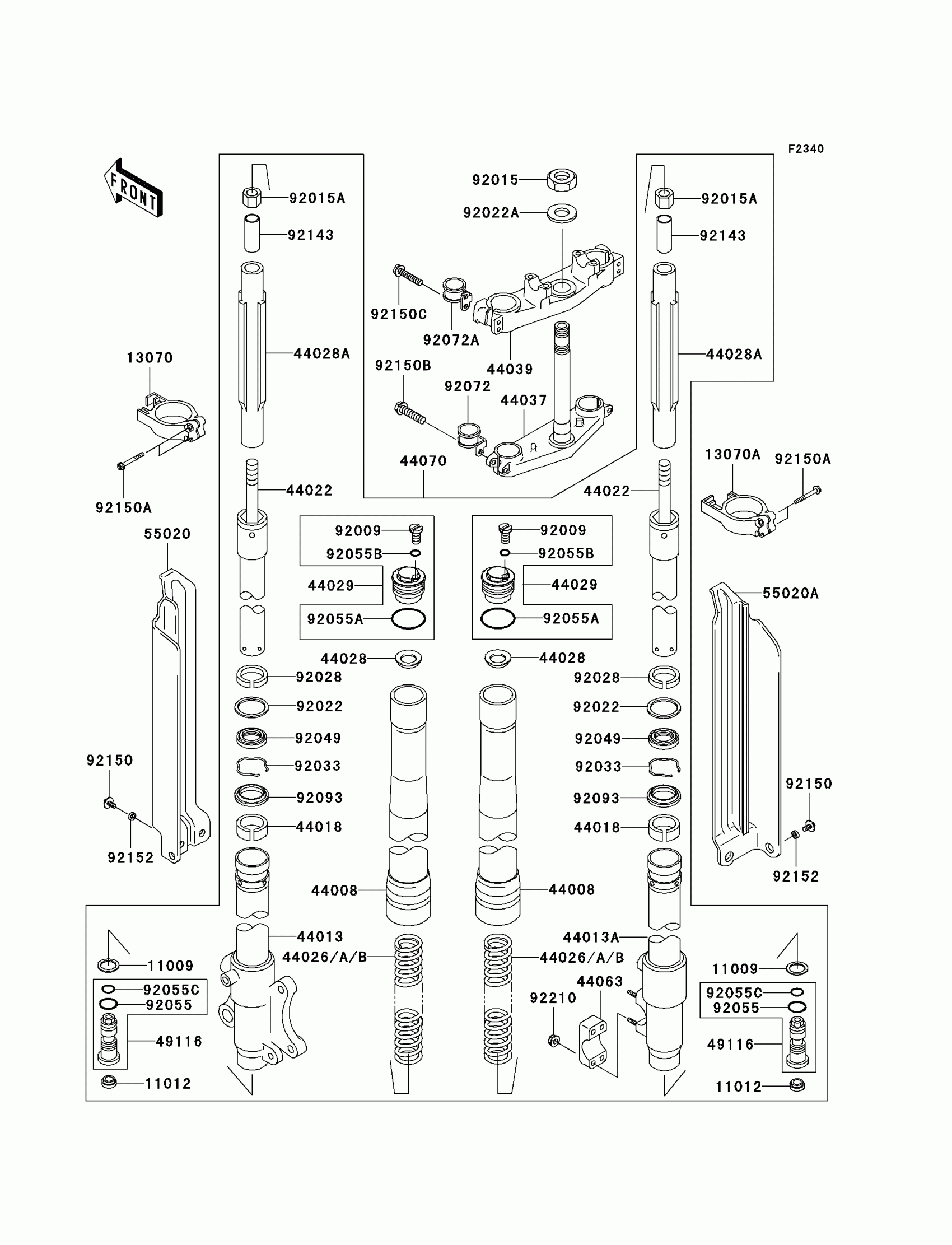

Kawasaki KLX300R Front Fork(A6F) Diagram
#
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
11012
CAP,FORK CYLINDER
11012-1381
$6.11
13070
GUIDE,FORK,LH,WHITE
13070-1263-RZ
$35.12
13070A
GUIDE,FORK,RH,WHITE
13070-1264-RZ
$35.12
44008
PIPE-FORK OUTER,GOLD
44008-1028-828
$1,053.85
44013
PIPE-FORK INNER,LH
44013-1387
$607.28
44013A
PIPE-FORK INNER,RH
44013-1388
$607.28
44018
PISTON-FORK,INNER PIPE
44018-1056
$28.45
44022
CYLINDER-FORK
44022-1314
$396.02
44026
SPRING-FRONT FORK,K=3.43N/MM
44026-1551
$72.63
44026A
SPRING-FRONT FORK,K=3.63N/MM
44026-1552
$72.63
44026B
SPRING-FRONT FORK,K=3.725N/MM
44026-1603
$104.36
44028
GUIDE-FORK SPRING
44028-1081
$12.12
44028A
GUIDE-FORK SPRING
44028-1084
$12.85
44029
SEAT-FORK SPRING
44029-1149
$123.28
44037
HOLDER-FORK UNDER
44037-1291
$742.74
44039
HOLDER-FORK UPPER
44039-1240
$325.95
44063
HOLDER-FRONT AXLE
44063-1056
$55.31
44070
DAMPER-ASSY,FORK,GOLD
44070-1565-828
$2,855.03
49116
VALVE-ASSY,FORK
49116-1145
$177.89
55020
GUARD,FORK,LH,WHITE
55020-0196-RZ
$55.20
55020A
GUARD,FORK,RH,WHITE
55020-0199-RZ
$55.20
92009
SCREW
92009-1568
$7.21
92015
NUT,STEERING STEM,22MM
92015-1653
$16.69
92015A
NUT
92015-1839
$19.64
92022
WASHER
92022-1299
$8.58
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92028
BUSHING
92028-1581
$21.80
92033
RING-SNAP
92033-1077
$4.96
92049
SEAL-OIL
92049-1373
$28.98
92055
RING-O
92055-1156
$1.42
92055A
RING-O,FORK,AIR TUBE
92055-1333
$6.00
92055B
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92055C
RING-O,FORK VALVE
92055-1502
$7.45
92072
BAND
92072-1267
$20.92
92072A
BAND
92072-1268
$23.46
92093
SEAL,FORK OUTER TUBE
92093-1342
$18.72
92143
COLLAR,FORK
92143-1643
$23.48
92150
BOLT,6X14
92150-1340
$5.07
92150A
BOLT,FLANGED,5X40
92150-1434
$4.60
92150B
BOLT,FLANGED,8X40
92150-1446
$12.68
92150C
BOLT,FLANGED,8X40
92150-1516
$14.15
92152
COLLAR,8X12.7X4
92152-0315
$5.13
92210
NUT,FLANGED,6MM
92210-1070
$7.47
