Description

Price

13127

SHAFT-TRANSMISSION INPUT,12T

13127-0648

$110.54

13128

SHAFT-TRANSMISSION OUTPUT

13128-0679

$148.67

13144

SPROCKET-OUTPUT,14T

13144-0562

$33.51

13262

GEAR,INPUT 5TH,24T

13262-0965

$41.17

13262A

GEAR,INPUT 3RD,19T

13262-0966

$65.18

13262B

GEAR,INPUT 2ND,16T

13262-0967

$46.16

13262C

GEAR,INPUT 4TH,22T

13262-0968

$64.74

13262D

GEAR,OUTPUT 4TH,26T

13262-0969

$41.62

13262E

GEAR,OUTPUT LOW,35T

13262-0970

$50.62

13262F

GEAR,OUTPUT 2ND,32T

13262-0971

$47.72

13262G

GEAR,OUTPUT 5TH,24T

13262-0972

$60.21

13262H

GEAR,OUTPUT 3RD,28T

13262-0973

$77.79

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.65

92026

SPACER,12.2X24X0.5

92026-0754

$1.54

92026A

SPACER,17.2X23X0.5

92026-0755

$4.31

92033

RING-SNAP

92033-0731

$4.26

92055

RING-O,16.8X1.9

92055-0151

$3.90

92139

BUSHING

92139-0286

$17.10

92139A

BUSHING,17X19X9.5

92139-0795

$11.02

92139B

BUSHING,17X19X7.4

92139-0796

$5.92

92139C

BUSHING,12X14X9.4

92139-0797

$5.29

92152

COLLAR,SPROCKET

92152-0998

$14.04

92180

SHIM

92180-0774

$3.29

92200

WASHER,17.3X22X0.5

92200-0865

$3.92

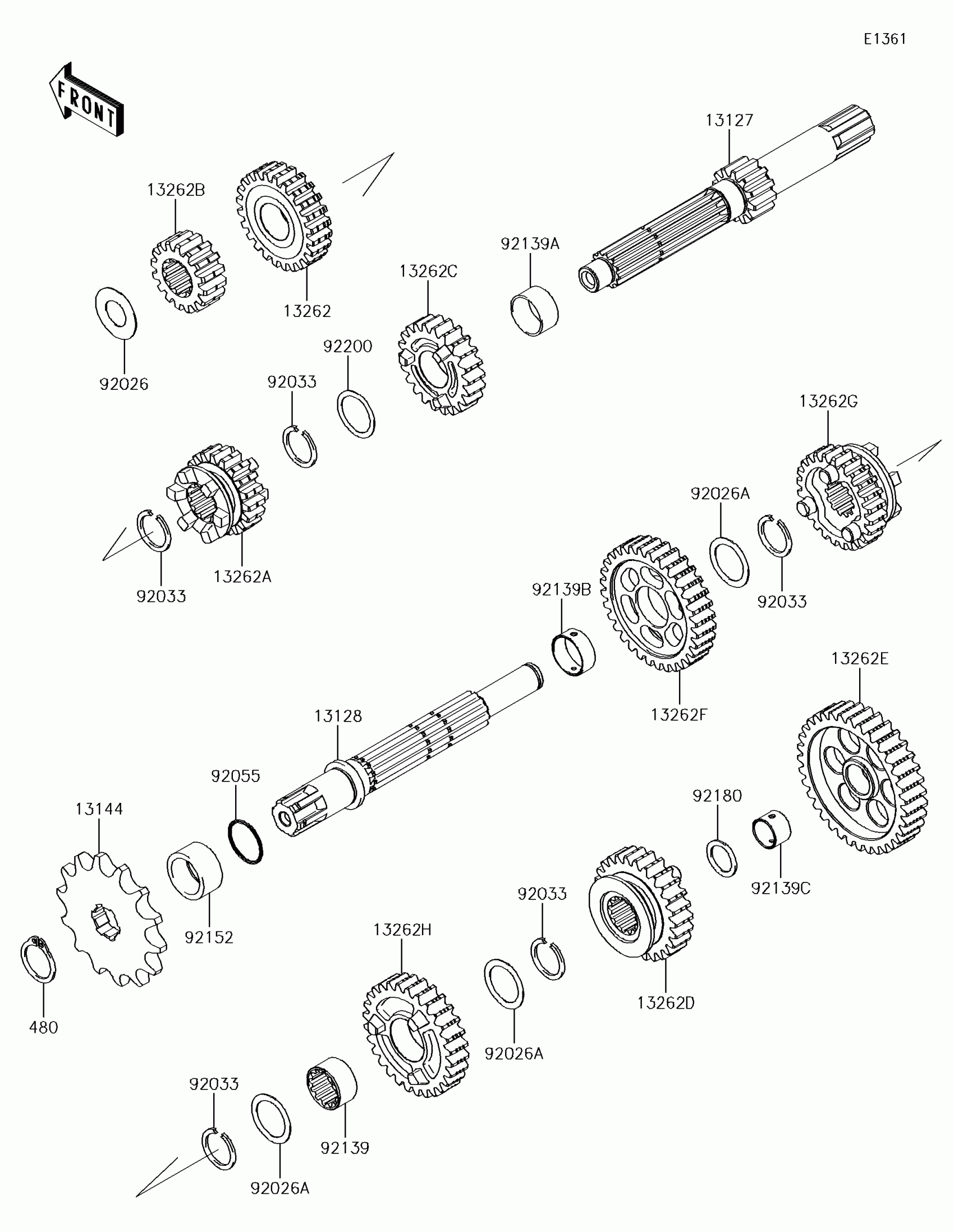

Kawasaki KLX150BF Transmission Diagram
