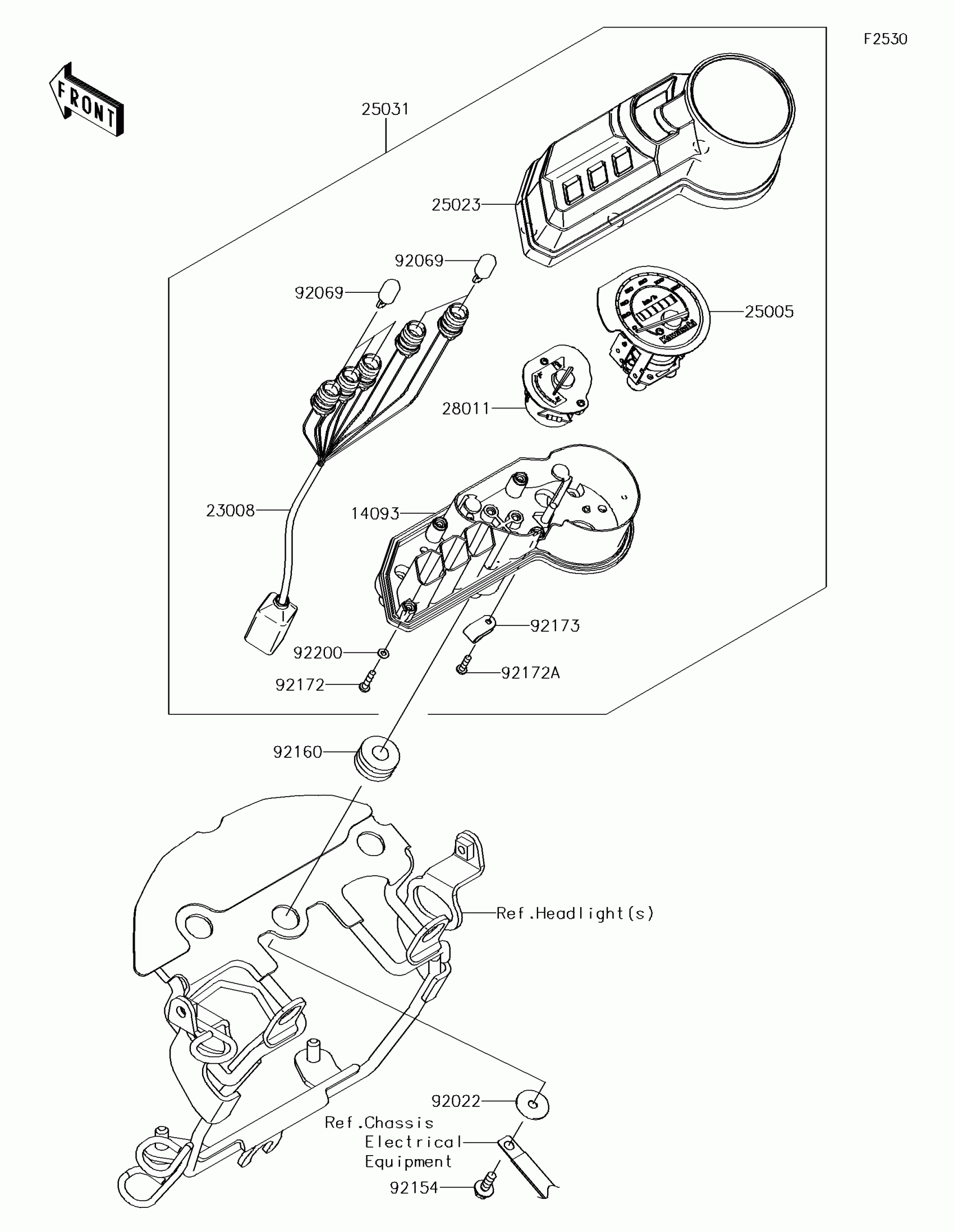

Kawasaki KLX150BF Meter(s) Diagram

Description

Price

14093

COVER

14093-0471

$49.37

23008

SOCKET-ASSY

23008-0175

$109.63

25005

SPEEDOMETER

25005-0138

$78.76

25023

COVER-METER CASE

25023-0123

$59.06

25031

METER-ASSY,KPH

25031-0697

$308.84

28011

METER

28011-0657

$27.29

92022

WASHER,5.5X20X1.2

92022-104

$4.31

92069

BULB,12V 1.7W,T10

92069-0100

$14.56

92154

BOLT,FLANGED,5X14

92154-0458

$2.06

92160

DAMPER

92160-1162

$5.00

92172

SCREW,3X12

92172-1103

$0.63

92172A

SCREW

92172-1104

$0.63

92173

CLAMP

92173-1577

$1.19

92200

WASHER

92200-1823

$0.95
