Description

Price

132

BOLT-FLANGED-SMALL,8X35

132BA0835

$4.76

44008A

PIPE-FORK OUTER,SILVER

44008-0080-KX

$232.77

44013

PIPE-FORK INNER

44013-0274

$371.43

44013A

PIPE-FORK INNER

44013-0275

$371.43

44037

HOLDER-FORK UNDER,P.SILVER

44037-0155-458

$254.15

44039

HOLDER-FORK UPPER,P.SILVER

44039-0129-458

$156.48

44065

BUSHING-FRONT FORK

44065-0034

$9.34

44065A

BUSHING-FRONT FORK

44065-0035

$9.34

44071

DAMPER-ASSY,LH,SILVER/P.SILVER

44071-1081-50N

$555.05

44071B

DAMPER-ASSY,RH,SILVER/P.SILVER

44071-1082-50N

$555.05

55020

GUARD,FORK,LH,EBONY

55020-1862-6C

$47.40

55020A

GUARD,FORK,RH,EBONY

55020-1863-6C

$47.40

92026

SPACER,OUTER TUBE

92026-1275

$19.60

92033

RING-SNAP,FORK

92033-1193

$6.33

92049

SEAL-OIL

92049-0786

$29.84

92055

RING-O

92055-0850

$3.93

92093

SEAL

92093-0159

$20.74

92151

BOLT,FLANGED,8X35

92151-1635

$10.49

92151A

BOLT,SOCKET,6X14

92151-1654

$1.83

92154A

BOLT,SILVER

92154-1894-KX

$74.93

92161

DAMPER

92161-0440

$7.68

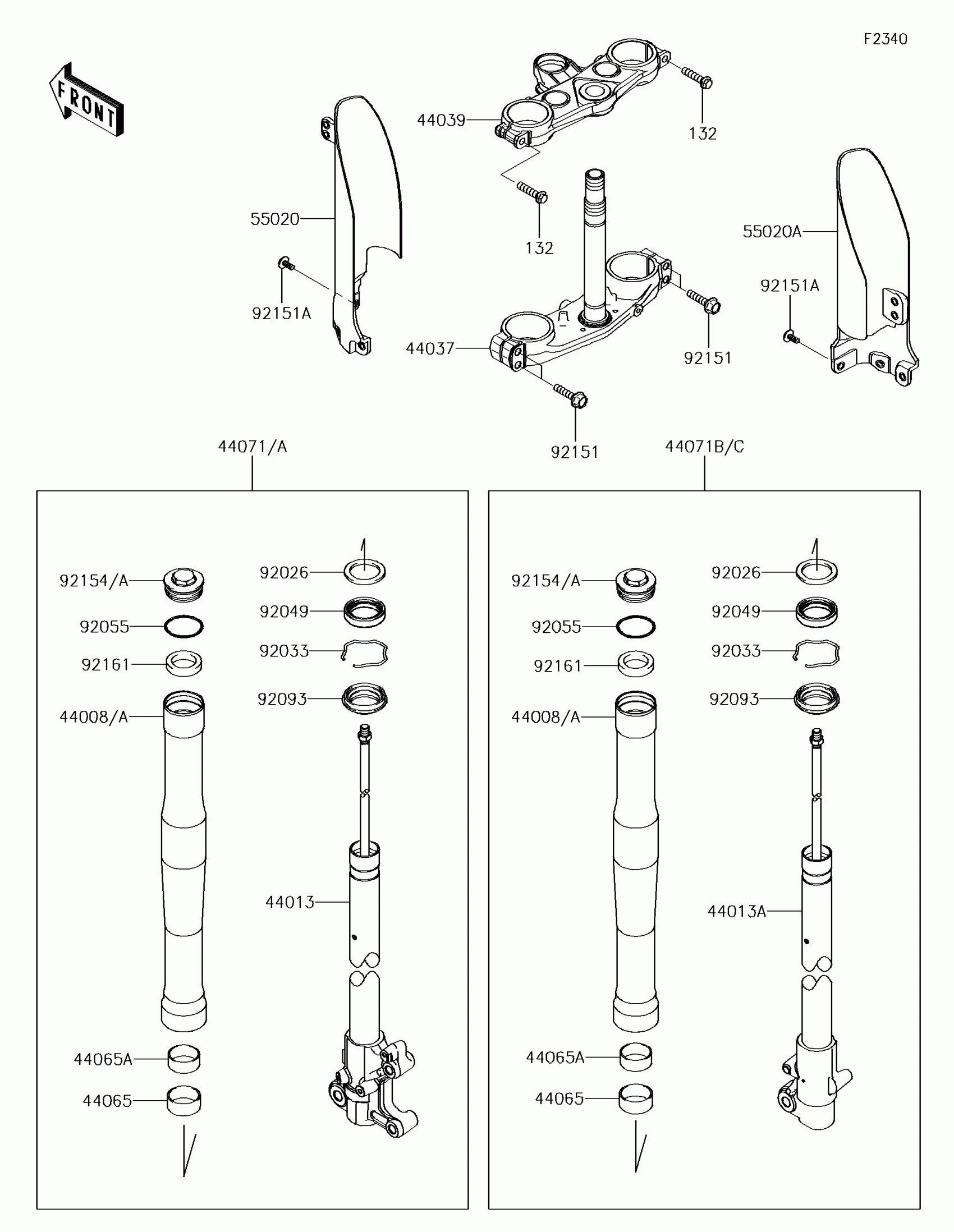

Kawasaki KLX150BF Front Fork Diagram

BOLT-FLANGED-SMALL,8X35

PIPE-FORK OUTER,SILVER

PIPE-FORK INNER

PIPE-FORK INNER

HOLDER-FORK UNDER,P.SILVER

HOLDER-FORK UPPER,P.SILVER

BUSHING-FRONT FORK

BUSHING-FRONT FORK

DAMPER-ASSY,LH,SILVER/P.SILVER

DAMPER-ASSY,RH,SILVER/P.SILVER

GUARD,FORK,LH,EBONY

GUARD,FORK,RH,EBONY

SPACER,OUTER TUBE

RING-SNAP,FORK

SEAL-OIL

RING-O

SEAL

BOLT,FLANGED,8X35

BOLT,SOCKET,6X14

BOLT,SILVER

DAMPER
