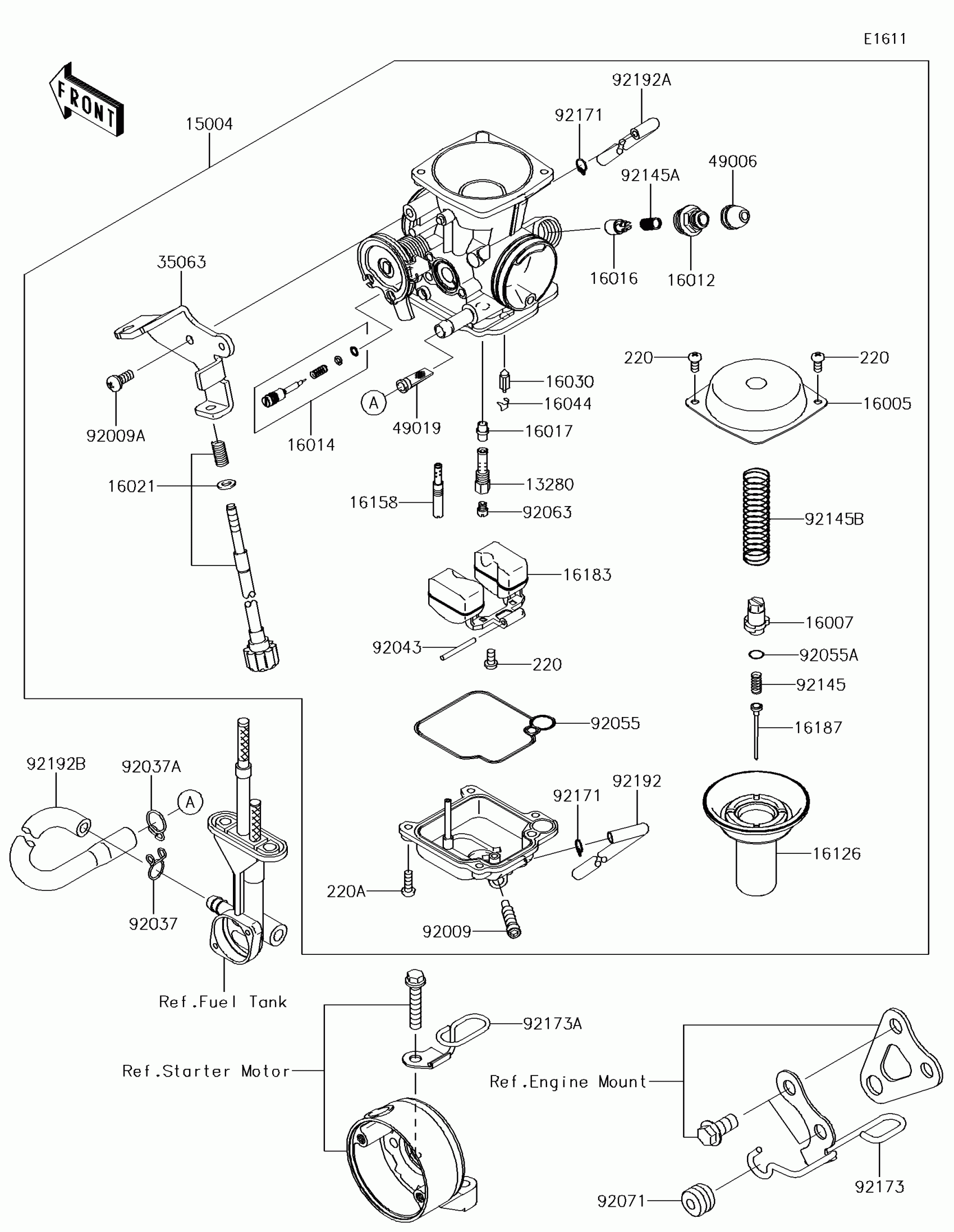

Kawasaki KLX150BF Carburetor Diagram
#
13280
HOLDER
13280-0235
$8.60
15004
CARBURETOR-ASSY
15004-0911
Unavailable
16005
TOP-CHAMBER
16005-0003
$8.30
16007
SEAT-SPRING
16007-0020
$8.30
16012
CAP-STARTER PLUNGER
16012-0003
$11.61
16014
SCREW-PILOT AIR
16014-0016
$14.12
16016
PLUNGER,STARTER
16016-0014
$17.10
16017
JET-NEEDLE
16017-0017
$14.00
16021
SCREW-THROTTLE STOP
16021-0022
$11.38
16030
VALVE-FLOAT
16030-0005
$50.19
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16126
VALVE
16126-0020
$68.20
16158
JET-SLOW
16158-0007
$82.29
16183
FLOAT-ASSY
16183-0004
$23.99
16187
NEEDLE-JET
16187-0573
Unavailable
220
SCREW-PAN-CROS,4X8
220AA0408
$0.68
220A
SCREW-PAN-CROS,4X12
220AA0412
$0.21
35063
STAY
35063-0684
$22.60
49006
BOOT
49006-0039
$6.89
49019
FILTER-FUEL
49019-1097
$9.23
92009
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92009A
SCREW,PLATE
92009-1865
$2.38
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP
92037-1935
$5.38
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,CHAMBER GASKET
92055-0084
$16.92
92055A
RING-O
92055-1223
$5.52
92063
JET-MAIN,#112
92063-0020
$15.45
92071
GROMMET
92071-0038
$3.87
92145
SPRING
92145-0309
$5.25
92145A
SPRING,COIL
92145-0313
$12.82
92145B
SPRING
92145-0936
$18.72
92171
CLAMP
92171-0494
$4.92
92173
CLAMP
92173-1066
$5.38
92173A
CLAMP
92173-1430
Unavailable
92192
TUBE
92192-0233
$14.26
92192A
TUBE
92192-0876
$8.12
92192B
TUBE,TAP-ASSY-CARBURETOR
92192-1726
$6.57
