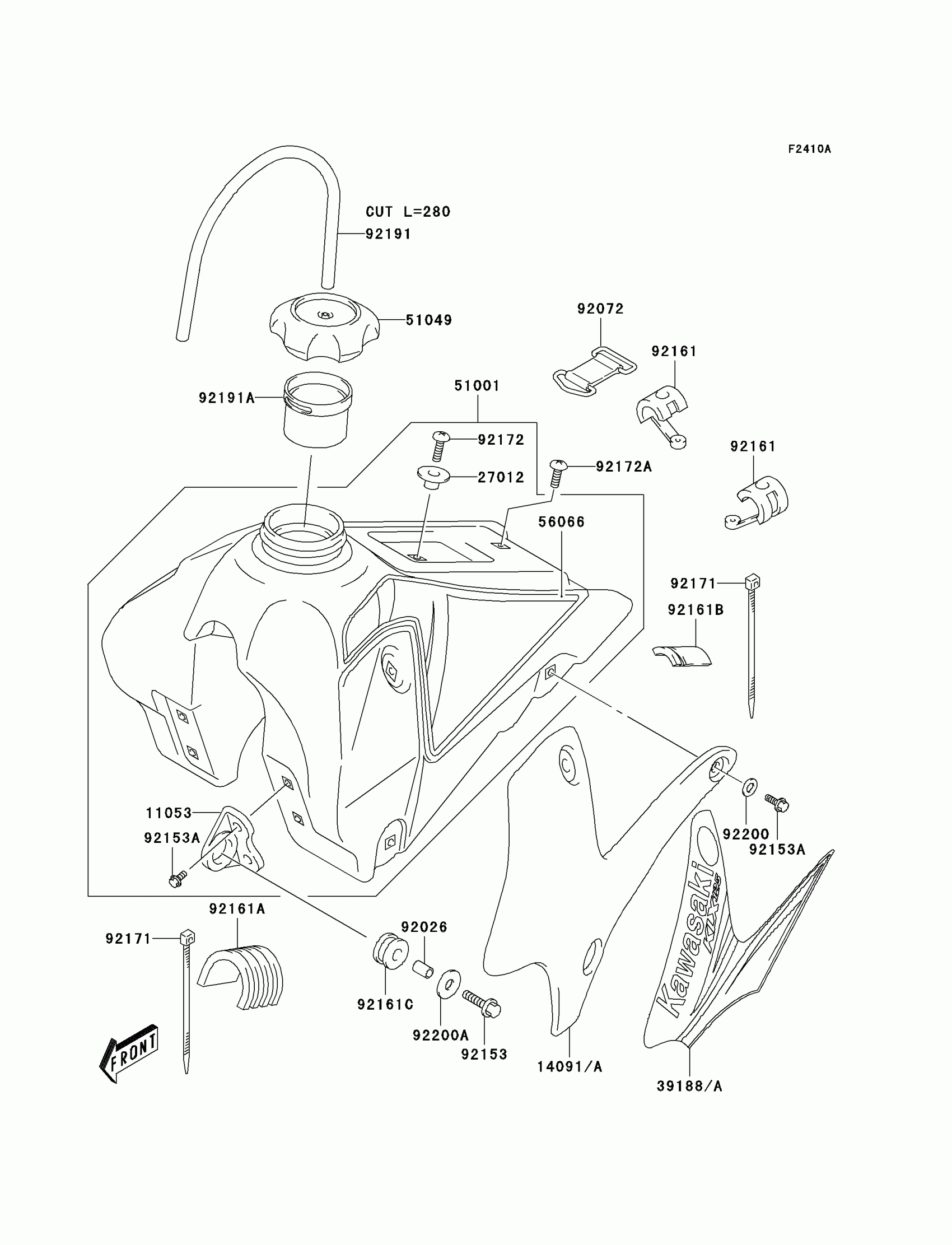

Kawasaki KLX125L Fuel Tank(B2) Diagram
#
Description
Price
11053
BRACKET,FUEL TANK,FR
11053-S001
$12.89
14091
COVER,FUEL TANK,RH,L.GREEN
14091-S062-535
$47.88
14091A
COVER,FUEL TANK,LH,L.GREEN
14091-S063-535
$47.88
27012
HOOK,SEAT FRONT
27012-S003
$9.23
39188
TAPE,FUEL TANK COVER,RH
39188-S006-553
$84.76
39188A
TAPE,FUEL TANK COVER,LH
39188-S007-553
$84.76
51001
TANK-COMP-FUEL,BLACK
51001-S018-539
Unavailable
51049
CAP-TANK
51049-S004
$43.94
56066
PATTERN,TAPE SET,FUEL TANK
56066-S027-568
$185.26
92026
SPACER,FUEL TANK,FR
92026-S049
$2.79
92072
BAND,FUEL TANK,RR
92072-S004
$15.27
92153
BOLT
92153-S003
Unavailable
92153A
BOLT
92153-S144
Unavailable
92161
DAMPER,FUEL TANK
92161-S062
$9.27
92161A
DAMPER,FUEL TANK
92161-S063
$24.70
92161B
DAMPER,FUEL TANK
92161-S064
$9.27
92161C
DAMPER,FUEL TANK
92161-S065
$6.55
92171
CLAMP,FUEL TANK CUSHION
92171-S056
$4.92
92172
SCREW
92172-S019
$1.92
92172A
SCREW
92172-S055
$1.92
92191
TUBE,FUEL TANK BREATHER
92191-S028
$9.59
92191A
TUBE,FUEL TANK FILLER
92191-S029
$8.18
92200
WASHER
92200-S078
$2.64
92200A
WASHER
92200-S080
$2.79
