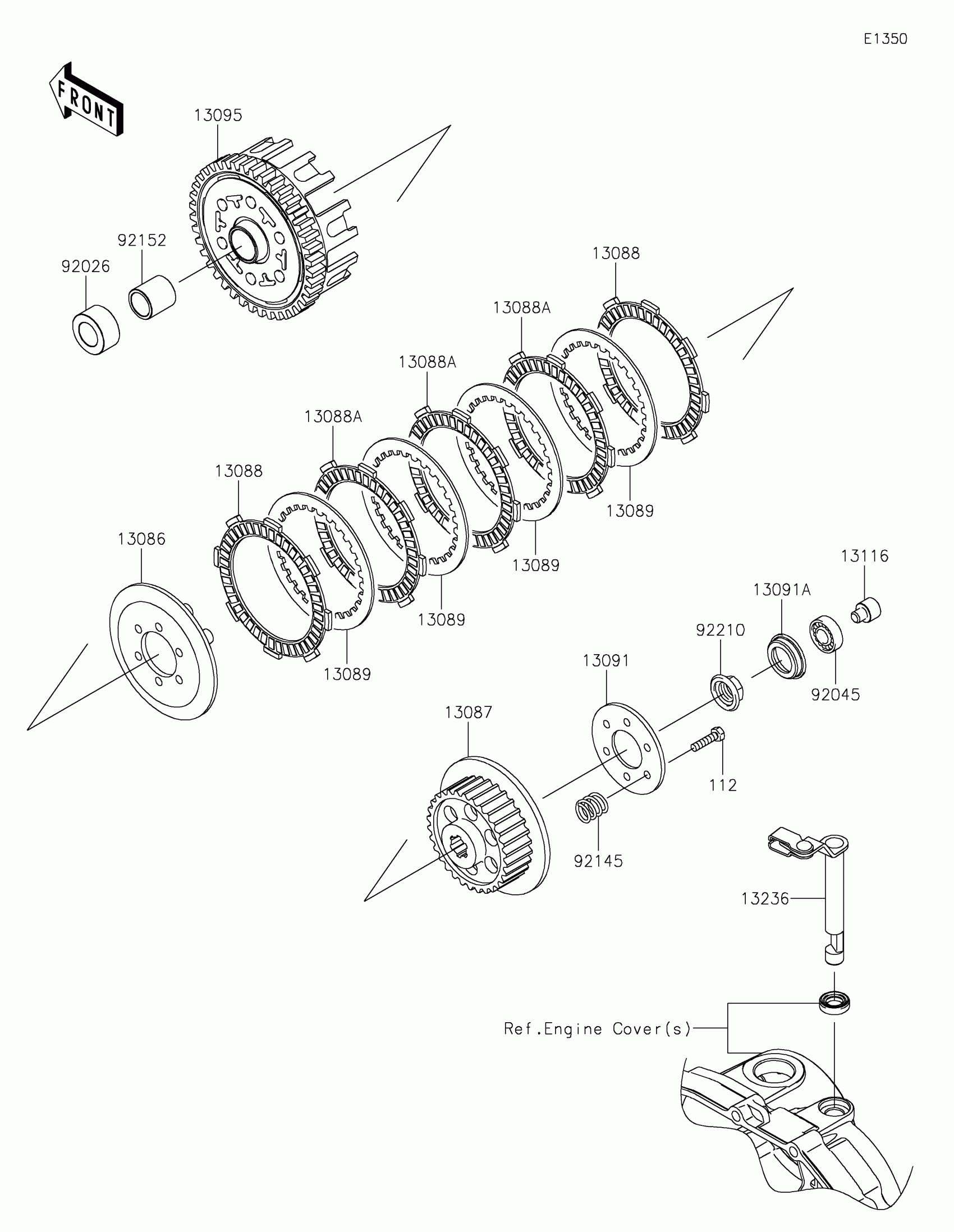

Kawasaki KLX110L Clutch Diagram

Description

Price

13086

WHEEL-CLUTCH

13086-1065

$29.44

13087

HUB-CLUTCH

13087-1151

$40.67

13088

PLATE-FRICTION

13088-0047

$12.66

13088A

PLATE-FRICTION

13088-0048

$12.66

13089

PLATE-CLUTCH

13089-1087

$12.80

13091

HOLDER,CLUTCH

13091-1782

$7.90

13091A

HOLDER

13091-1787

$12.92

13095

HOUSING-COMP-CLUTCH

13095-1403

$95.50

13116

ROD-PUSH

13116-0038

$7.24

13236

LEVER-COMP

13236-0177

$51.62

92026

SPACER

92026-1605

$4.20

92045

BEARING-BALL,#628

92045-1123

$23.34

92145

SPRING

92145-0713

$6.89

92152

COLLAR,17X22X22.7

92152-0393

$16.97

92210

NUT,14MM

92210-1374

$9.71

112

BOLT-UPSET,5X20

112BA0520

$5.52
