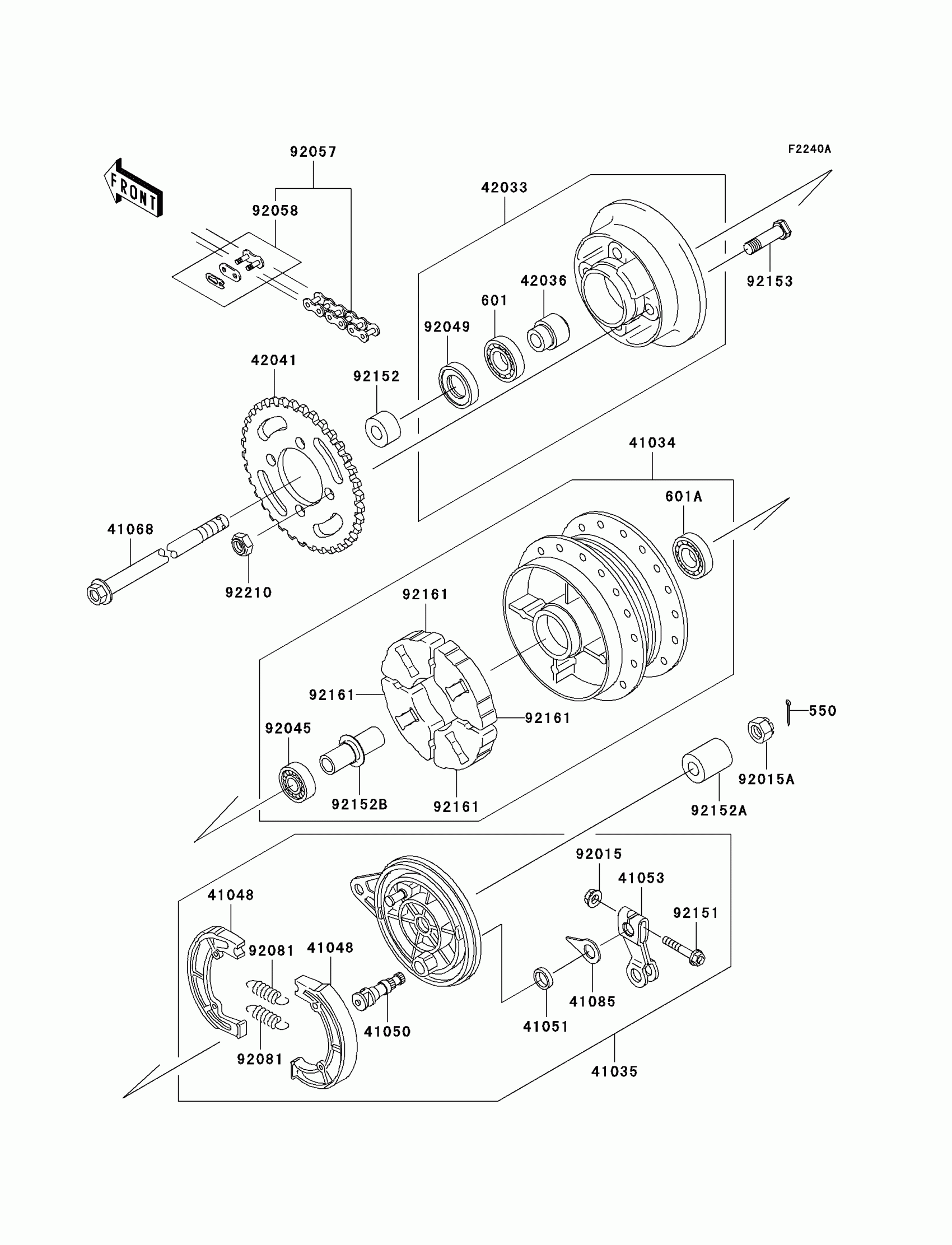

Kawasaki KLX110 Rear Hub(A4) Diagram
#
Description
Price
550
PIN-COTTER,2.5X20
550S2520
$2.63
601
BEARING-BALL,#6004UG
601B6004UG
$37.11
601A
BEARING-BALL,#6301UG
601B6301UG
$29.43
41034
DRUM-ASSY,REAR BRAKE
41034-0010
$78.86
41035
PANEL-ASSY-BRAKE,RR
41035-1542
$97.54
41048
SHOE-BRAKE
41048-1141
$21.67
41050
CAM-BRAKE
41050-1082
$8.03
41051
SEAL,BRAKE CAM
41051-001
$4.26
41053
LEVER-BRAKE CAM
41053-1089
$5.92
41068
AXLE,RR
41068-0016
$26.98
41085
INDICATOR
41085-1079
$0.84
42033
COUPLING-ASSY,RR HUB
42033-1223
$67.26
42036
SLEEVE,RR HUB COUPLING,L=29
42036-1292
$8.98
42041
SPROCKET-HUB,33T
42041-0006
Unavailable
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92015A
NUT,CASTLE,12MM
92015-1870
$6.36
92045
BEARING-BALL,6201ZC3/5C
92045-1308
$13.99
92049
SEAL-OIL,SC26X42X8
92049-1490
$3.29
92057
CHAIN,DRIVE,DID420DXX86L
92057-0090
$56.29
92058
JOINT-CHAIN,DRIVE
92058-0006
$12.53
92081
SPRING,BRAKE SHOE
92081-1766
$8.03
92151
BOLT,FLANGED,6X34
92151-1209
$3.71
92152
COLLAR,RR AXLE,LH,L=14.8
92152-1405
$9.43
92152A
COLLAR,RR AXLE,RH,L=32
92152-1406
$11.81
92152B
COLLAR,REAR BRAKE DRUM,L=58
92152-1409
$11.81
92153
BOLT,10X36
92153-1120
$10.49
92161
DAMPER,RR HUB SHOCK
92161-0084
$9.39
92210
NUT,LOCK,10MM
92210-1351
$7.65
