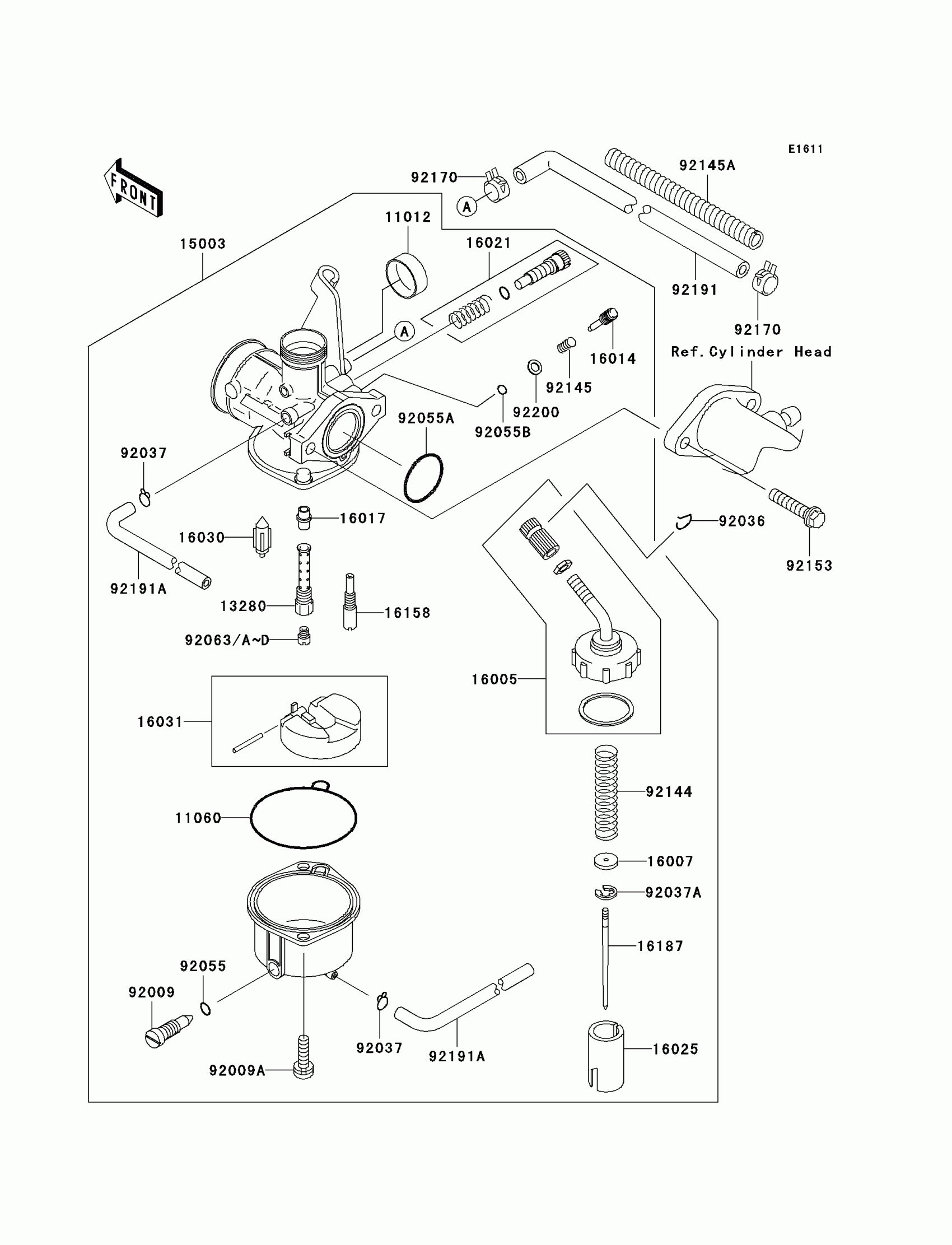

Kawasaki KLX110 Carburetor(A6F/A7F)(US) Diagram
#
11012
CAP,CHOKE
11012-1940
Unavailable
11060
GASKET,FLOAT CHAMBER
11060-1700
Unavailable
13280
HOLDER,NEEDLE JET
13280-1092
$14.42
15003
CARBURETOR-ASSY
15003-0097
$202.82
16005
TOP-CHAMBER
16005-1091
$23.76
16007
SEAT-SPRING
16007-1103
$7.27
16014
SCREW-PILOT AIR
16014-0011
$19.06
16017
JET-NEEDLE
16017-1434
$47.13
16021
SCREW-THROTTLE STOP
16021-1241
$17.50
16025
VALVE-THROTTLE,CA3.0
16025-1209
$98.91
16030
VALVE-FLOAT,FLOAT
16030-0002
Unavailable
16031
FLOAT
16031-1088
$52.55
16158
JET-SLOW,#38
16158-1063
$14.90
16187
NEEDLE-JET,NCFA
16187-1228
$35.93
92009
SCREW,DRAIN
92009-1057
$7.84
92009A
SCREW
92009-1750
$4.39
92036
RING-SNAP
92036-018
$3.89
92037
CLAMP,TUBE
92037-1142
$4.31
92037A
CLAMP,JET NEEDLE
92037-1401
$4.31
92055
RING-O
92055-1053
$4.69
92055A
RING-O
92055-1541
$2.78
92055B
RING-O
92055-1542
$4.31
92063
JET-MAIN,#85
92063-1326
Unavailable
92063A
JET-MAIN,#78
92063-1393
Unavailable
92063B
JET-MAIN,#75
92063-1395
Unavailable
92063C
JET-MAIN,#80
92063-1396
$12.56
92063D
JET-MAIN,#82
92063-1397
Unavailable
92144
SPRING,THROTTLE
92144-1875
$16.26
92145
SPRING
92145-0004
$6.02
92145A
SPRING,HOSE PROTECTER
92145-1481
$6.12
92153
BOLT,FLANGED-SMALL,6X28
92153-1309
$2.97
92170
CLAMP
92170-1872
$3.98
92191
TUBE,FUEL
92191-1700
$16.26
92191A
TUBE,3.5X6.5X418
92191-1735
$18.20
92200
WASHER
92200-1270
$2.49
