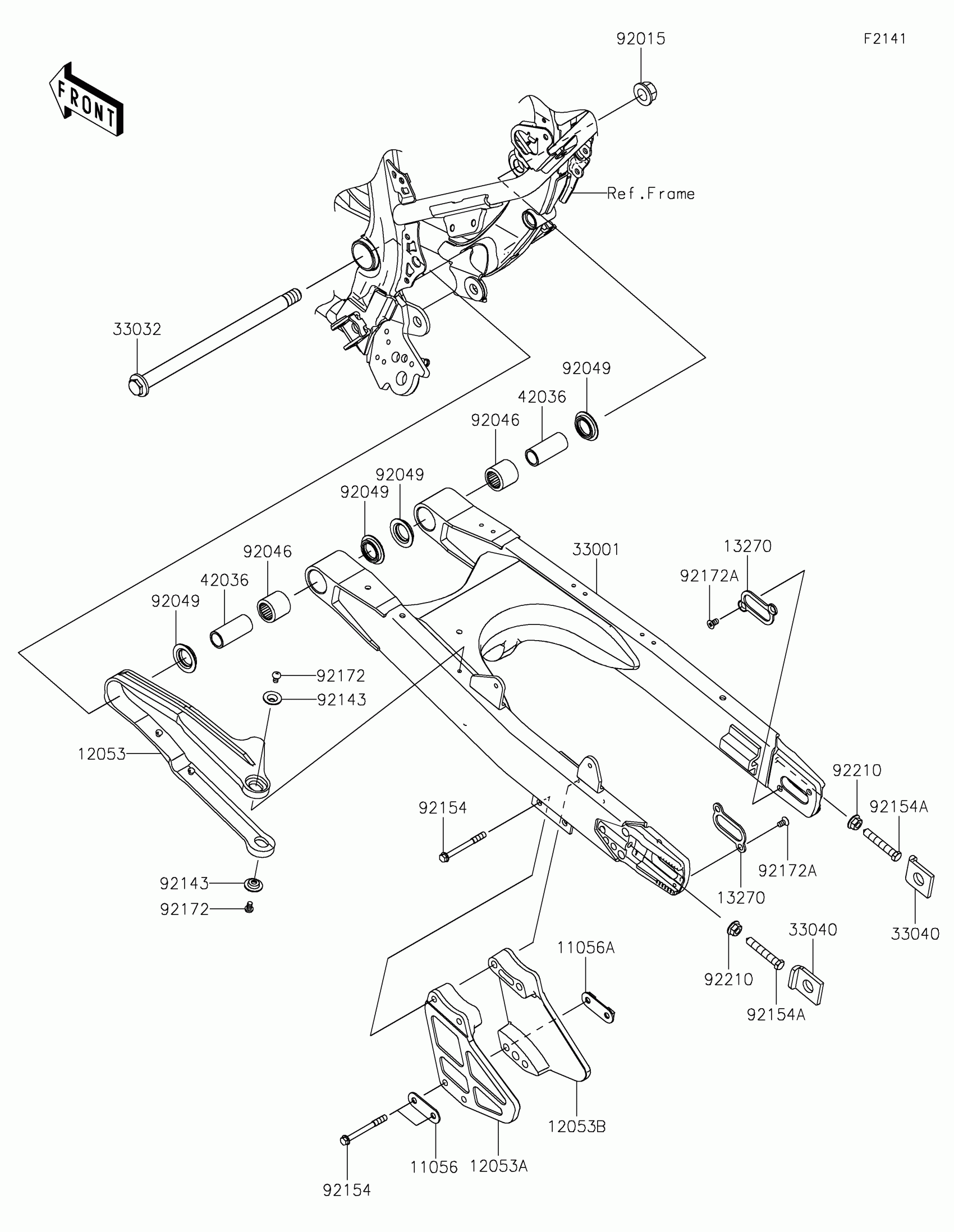

Kawasaki KLX®230 DF ABS Swingarm Diagram

Description

Price

11056

BRACKET

11056-2395

$1.19

11056A

BRACKET,WITH NUT

11056-2396

$2.00

12053

GUIDE-CHAIN

12053-0345

$64.20

12053A

GUIDE-CHAIN,RR,OUTSIDE

12053-0372

$10.75

12053B

GUIDE-CHAIN,RR,INSIDE

12053-0387

$9.83

13270

PLATE

13270-1899

$7.27

33001

ARM-COMP-SWING,F.S.BLACK

33001-0763-18R

$512.90

33032

SHAFT-SWING ARM,14X243

33032-0076

$42.29

33040

ADJUSTER-CHAIN

33040-0115

$6.83

42036

SLEEVE,15X20X46

42036-0831

$15.43

92015

NUT,14MM

92015-1435

$5.44

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92049

SEAL-OIL

92049-0849

$9.28

92143

COLLAR

92143-1676

$6.22

92154

BOLT,FLANGED,6X60

92154-2762

$3.57

92154A

BOLT,8X46

92154-7493

$18.84

92172

SCREW,5X8

92172-1540

$2.03

92172A

SCREW,5X10

92172-1541

$1.91

92210

NUT,FLANGED,8MM

92210-0555

$2.03
