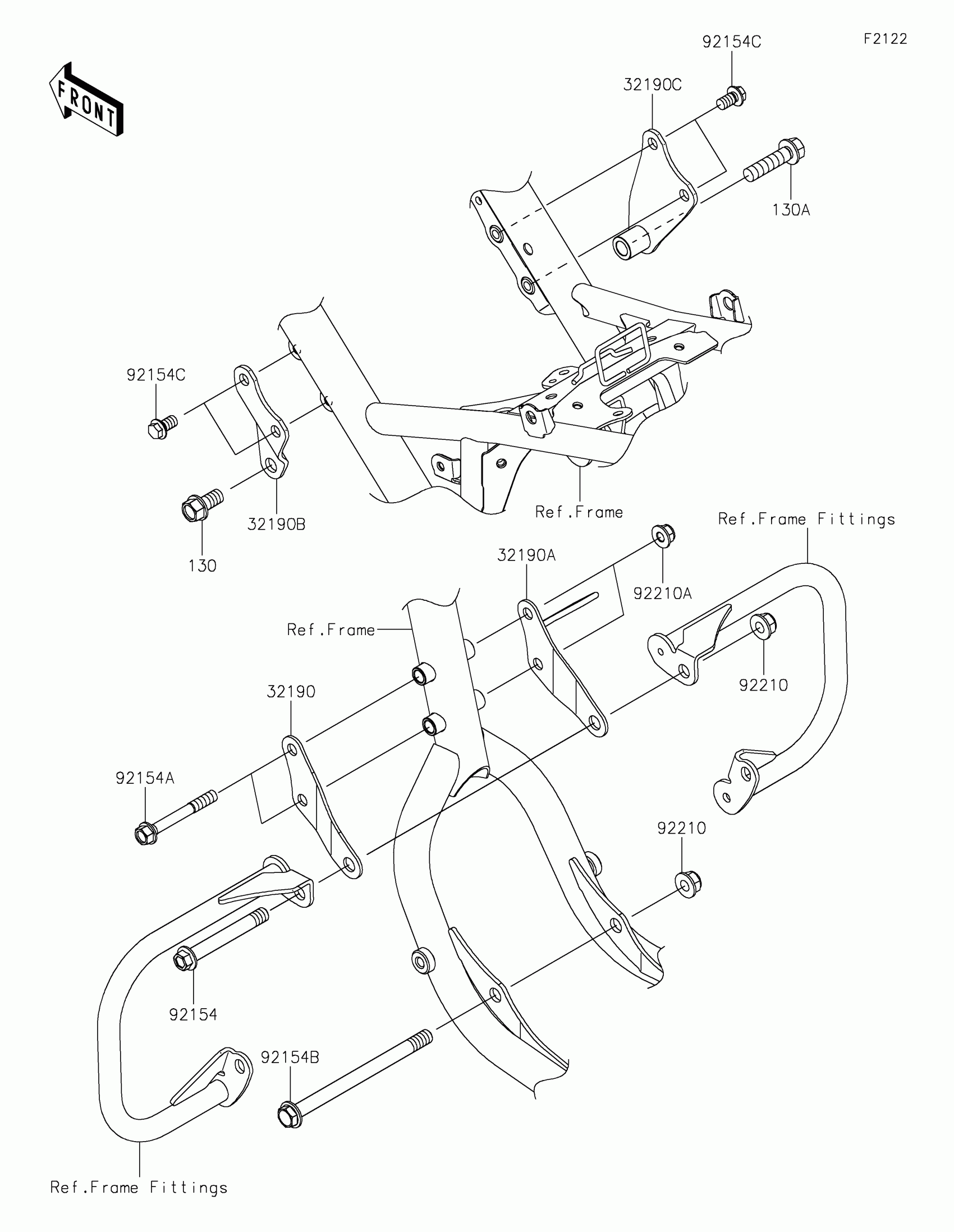

Kawasaki KLX®230 DF ABS Engine Mount Diagram

Description

Price

32190

BRACKET-ENGINE,FR,LH

32190-0872

$7.78

32190A

BRACKET-ENGINE,FR,RH

32190-0873

$11.16

32190B

BRACKET-ENGINE,HEAD,LH

32190-0874

$9.23

32190C

BRACKET-ENGINE,HEAD,RH

32190-0875

$15.78

92154

BOLT,FLANGED,10X85

92154-4039

$8.30

92154A

BOLT,FLANGED,8X65

92154-7732

$3.04

92154B

BOLT,FLANGED,10X137

92154-7733

$11.16

92154C

BOLT,FLANGED,8X14

92154-7734

$1.83

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35

92210A

NUT,8MM,M=8.5

92210-1649

$2.95

130

BOLT-FLANGED,10X20

130CB1020

$2.72

130A

BOLT-FLANGED,10X40

130CB1040

$6.41
