Description

Price

11061

GASKET,10.5X16X2

11061-0222

$5.60

14101

SET-CRANKCASE

14101-0053

$268.04

16130

VALVE-ASSY-RELIEF

16130-0002

$25.48

21176

SENSOR,SPEED

21176-0894

$179.33

92022

WASHER,10.2X18X1.0,SK5

92022-1415

$4.69

92043

PIN,6.2X8X14

92043-1741

$3.71

92045

BEARING-BALL,25X42X9

92045-0881

$25.76

92045A

BEARING-BALL,6306CM

92045-0907

$43.15

92045B

BEARING-BALL,6203NSE9C3

92045-0908

$16.54

92045C

BEARING-BALL,6204C3

92045-0909

$21.00

92045D

BEARING-BALL,6205NSE9C3

92045-0910

$30.79

92045E

BEARING-BALL,6203C3

92045-0911

$15.35

92045F

BEARING-BALL,6302CS13

92045-0912

$18.04

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$17.22

92049

SEAL-OIL,32X45X7.5

92049-0825

$22.10

92049A

SEAL-OIL,TC14245

92049-1520

$13.87

92055

RING-O,OD=13

92055-074

$8.58

92055A

RING-O

92055-0958

$8.21

92055B

RING-O,5.5X1.5

92055-1339

$4.32

92062

NOZZLE

92062-0050

$24.48

92062A

NOZZLE,8X8

92062-0567

$3.86

92062B

NOZZLE,6X8,SILVER

92062-1081

$6.47

92066

PLUG,DRAIN

92066-0143

$3.67

92150

BOLT,SOCKET,5X20

92150-1019

$4.26

92154

BOLT,RETURN SPRING

92154-1306

$8.72

92154A

BOLT,W/WASHER,6X14

92154-7475

$3.68

130

BOLT-FLANGED,6X16

130CB0616

$2.55

132

BOLT-FLANGED-SMALL,6X30

132BB0630

$4.12

132A

BOLT-FLANGED-SMALL,6X50

132BB0650

$4.76

132B

BOLT-FLANGED-SMALL,6X65

132BB0665

$4.80

132C

BOLT-FLANGED-SMALL,6X70

132BB0670

$5.30

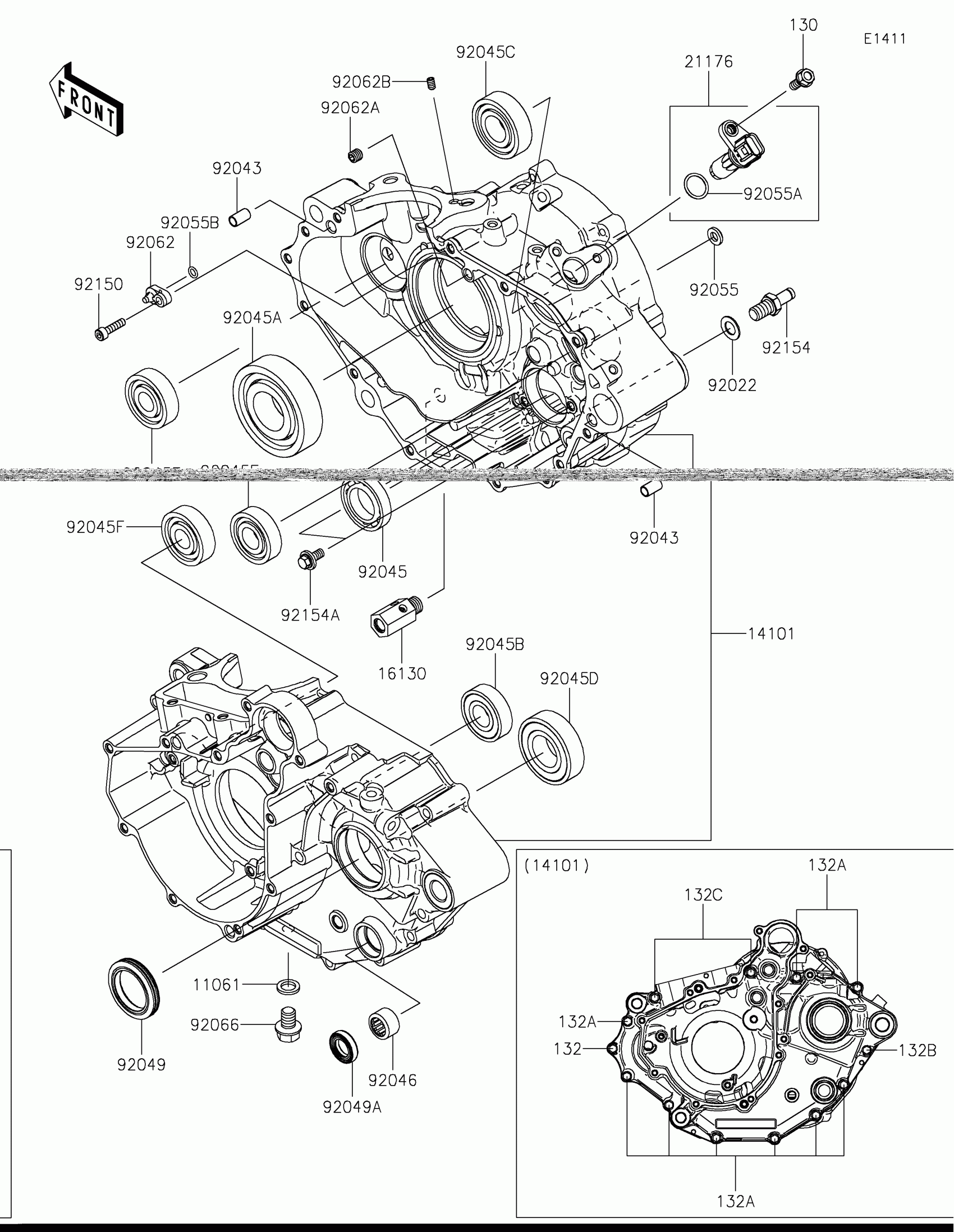

Kawasaki KLX®230 DF ABS Crankcase Diagram
