Description

Price

1

PUMP-FUEL

49040-1002

Unavailable

2

SCREW-PAN-CROS

220B0520

$0.68

3

WASHER SPRING 5MM

461F0500

$0.69

4

GASKET,CHECK VALVE

11009-1333

Unavailable

5

GASKET,CHECK VALVE

11009-1334

Unavailable

6

GASKET,FUEL PUMP,CNT

11009-1335

Unavailable

7

GASKET,DIAPHRAGM

11009-1336

Unavailable

8

VALVE-CHECK,FUEL PUMP

16087-1002

$5.06

9

DIAPHRAGM,FUEL PUMP

43028-1036

Unavailable

10

SPRING,FUEL PUMP

92081-1551

$3.83

11

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

12

WASHER SPRING 6MM

461F0600

$0.69

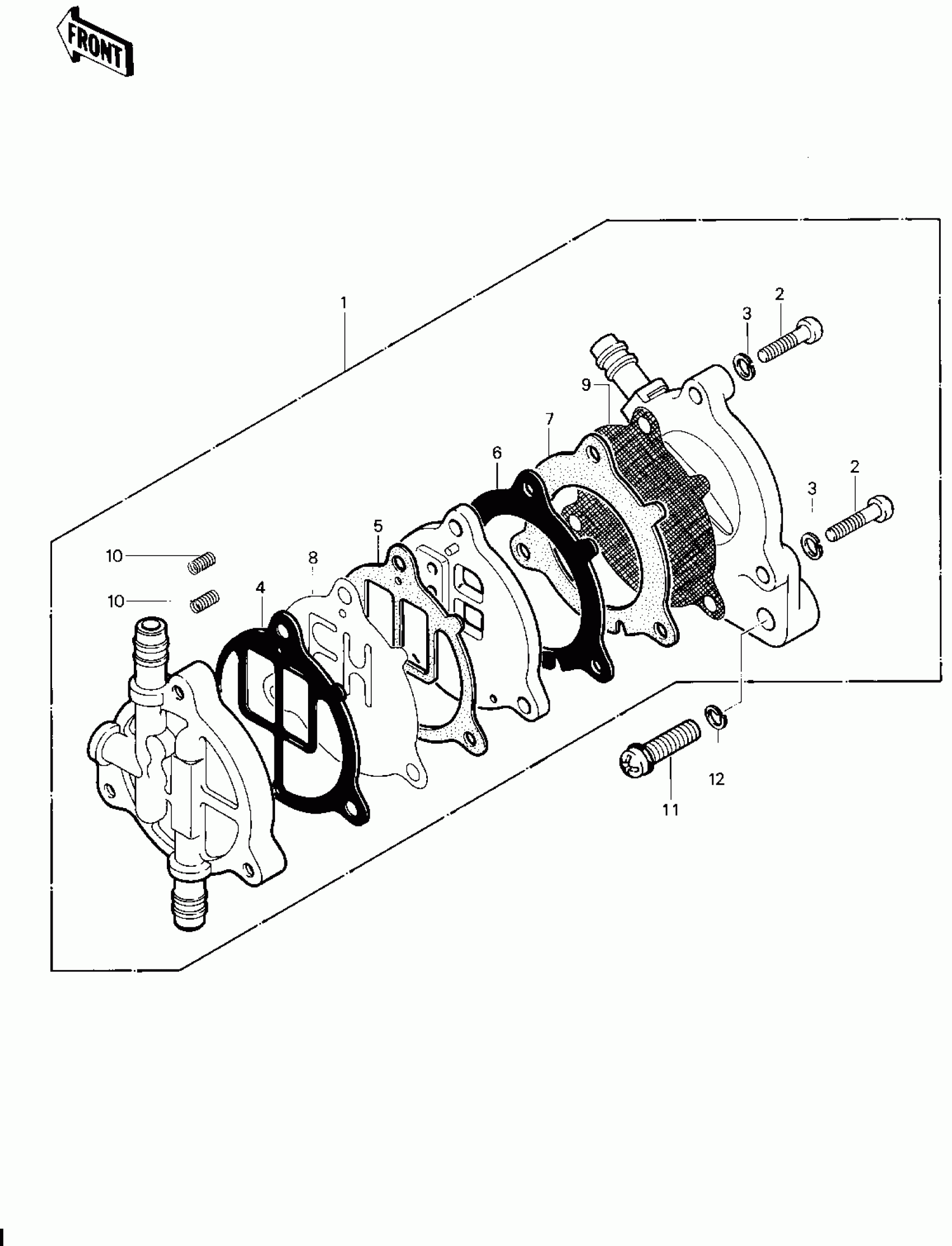

Kawasaki KLT200 FUEL PUMP Diagram

PUMP-FUEL

SCREW-PAN-CROS

WASHER SPRING 5MM

GASKET,CHECK VALVE

GASKET,CHECK VALVE

GASKET,FUEL PUMP,CNT

GASKET,DIAPHRAGM

VALVE-CHECK,FUEL PUMP

DIAPHRAGM,FUEL PUMP

SPRING,FUEL PUMP

SCREW-PAN-CROS,6X20,WHITE

WASHER SPRING 6MM
