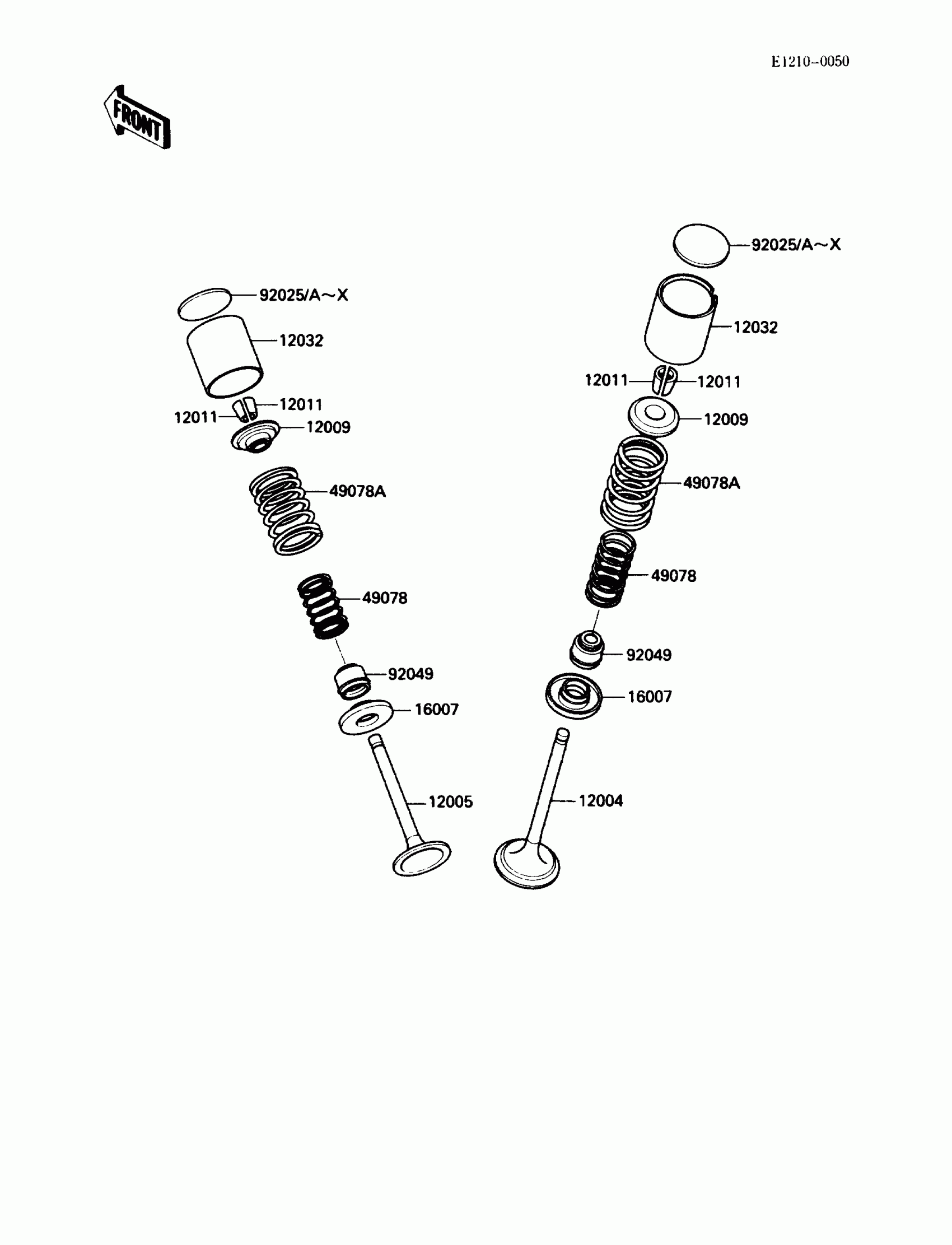

Kawasaki KLR650 Valve Diagram

#

Description
Price

12004

VALVE-INTAKE

12004-1087

$53.01

12005

VALVE-EXHAUST

12005-1085

$87.75

12009

RETAINER-VALVE SPRING

12009-005

$13.08

12011

COLLET,RETAINER

12011-004

$5.46

12032

TAPPET

12032-1002

$70.18

16007

SEAT-SPRING,VALVE

16007-1024

$6.51

49078

SPRING-ENGINE VALVE,INNER

49078-1065

$14.76

49078A

SPRING-ENGINE VALVE,OUTER

49078-1066

$14.76

92025

SHIM,T=2.00

12037-001

Unavailable

92025A

SHIM,T=2.05

12037-002

Unavailable

92025B

SHIM,T=2.10

12037-003

Unavailable

92025C

SHIM,T=2.15

12037-004

Unavailable

92025D

SHIM,T=2.20

12037-005

Unavailable

92025E

SHIM,T=2.25

12037-006

Unavailable

92025F

SHIM,T=2.30

12037-007

Unavailable

92025G

SHIM,T=2.35

12037-008

Unavailable

92025H

SHIM,T=2.40

12037-009

Unavailable

92025I

SHIM,T=2.45

12037-010

Unavailable

92025J

SHIM,T=2.50

12037-011

Unavailable

92025K

SHIM,T=2.55

12037-012

Unavailable

92025L

SHIM,T=2.60

12037-013

Unavailable

92025M

SHIM,T=2.65

12037-014

Unavailable

92025N

SHIM,T=2.70

12037-015

Unavailable

92025O

SHIM,T=2.75

12037-016

Unavailable

92025P

SHIM,T=2.80

12037-017

Unavailable

92025Q

SHIM,T=2.85

12037-018

Unavailable

92025R

SHIM,T=2.90

12037-019

Unavailable

92025S

SHIM,T=2.95

12037-020

Unavailable

92025T

SHIM,T=3.00

12037-021

Unavailable

92025U

SHIM,T=3.05

12037-022

Unavailable

92025V

SHIM,T=3.10

12037-023

Unavailable

92025W

SHIM,T=3.15

12037-024

Unavailable

92025X

SHIM,T=3.20

12037-025

Unavailable

92049

SEAL-OIL,RV37129.5

92049-016

$18.35
