Description

Price

12053

GUIDE-CHAIN,RR

12053-1104

$64.38

12053A

GUIDE-CHAIN,FR

12053-1210

Unavailable

32085

STOPPER,CHAIN ADJUSTER

32085-1256

$24.57

33001

ARM-COMP-SWING,SILVER NO.25

33001-1278-CE

$995.47

33032

SHAFT-SWING ARM

33032-1128

$73.40

33040

ADJUSTER-CHAIN,INNER

33040-1075

$34.73

33040A

ADJUSTER-CHAIN,OUTER

33040-1076

$37.51

33040B

ADJUSTER-CHAIN,OUTER

33040-1078

$39.96

42036

SLEEVE,15X20X47.5

42036-1204

$18.15

42036A

SLEEVE,15X20X82

42036-1205

$27.35

92009

SCREW,6X14

92009-1288

$3.92

92009A

SCREW,5X10

92009-1335

$4.38

92015

NUT,8MM

92015-1364

$3.92

92015A

NUT,14MM

92015-1459

$9.91

92015B

NUT,8MM

92015-1658

$4.87

92015C

NUT,CRIMP 6MM

92015-1796

$6.15

92022

WASHER,16X32X3.2

92022-1701

$4.69

92037

CLAMP,HOSE

92037-1902

$7.55

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92049

SEAL-OIL,ARM

92049-1109

$9.28

187

BOLT-UPSET-WSP

187D0610

$4.67

221

SCREW-CSK-CROS,6X10

221B0610

$3.67

410

WASHER PLAIN 8MM

410B0800

$0.93

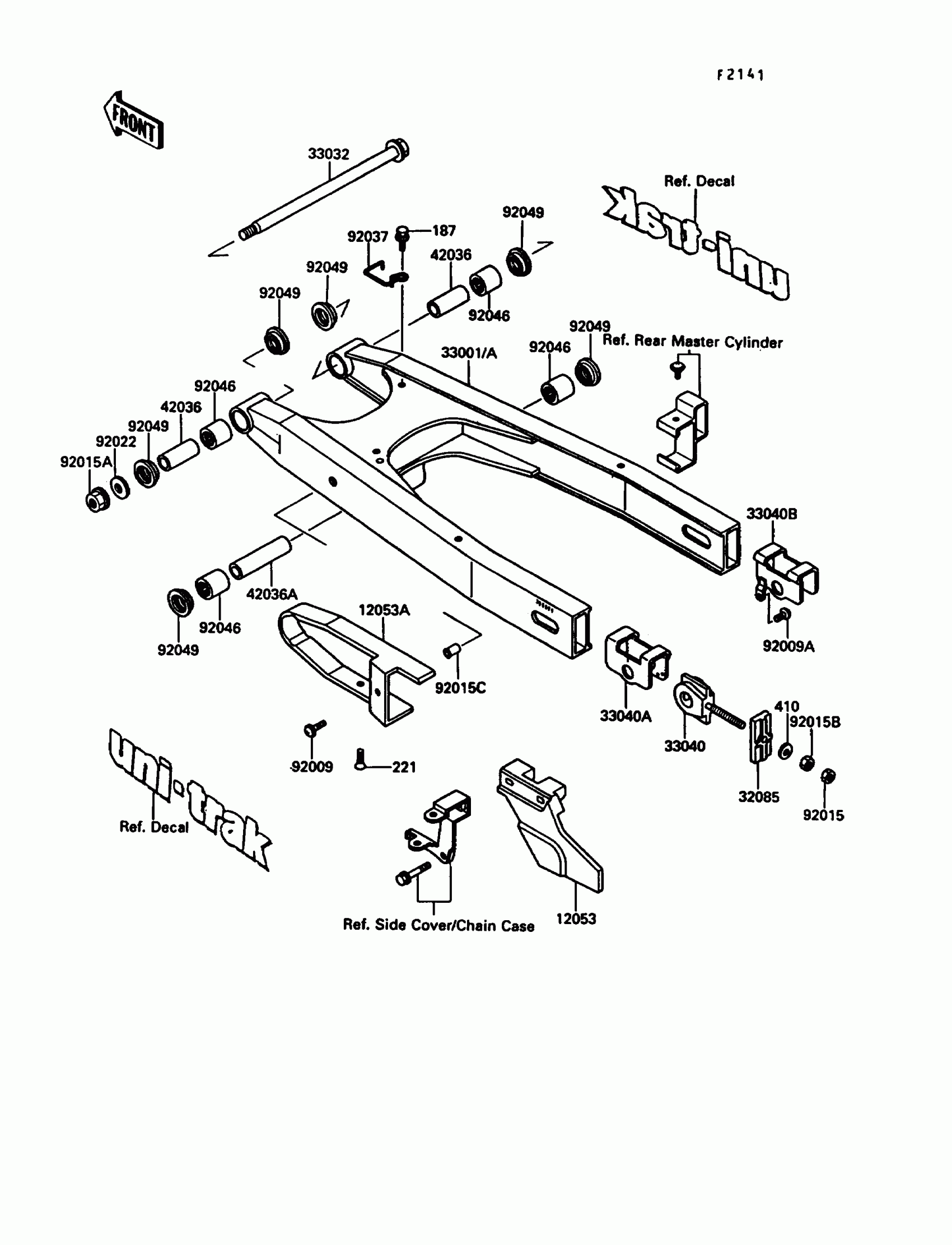

Kawasaki KLR650 Swing Arm Diagram

GUIDE-CHAIN,RR

GUIDE-CHAIN,FR

STOPPER,CHAIN ADJUSTER

ARM-COMP-SWING,SILVER NO.25

SHAFT-SWING ARM

ADJUSTER-CHAIN,INNER

ADJUSTER-CHAIN,OUTER

ADJUSTER-CHAIN,OUTER

SLEEVE,15X20X47.5

SLEEVE,15X20X82

SCREW,6X14

SCREW,5X10

NUT,8MM

NUT,14MM

NUT,8MM

NUT,CRIMP 6MM

WASHER,16X32X3.2

CLAMP,HOSE

BEARING-NEEDLE,BM202726

SEAL-OIL,ARM

BOLT-UPSET-WSP

SCREW-CSK-CROS,6X10

WASHER PLAIN 8MM
