Description

Price

34003

HOLDER-STEP,RR,LH,SILVER NO.25

34003-1275-CE

$101.58

34003B

HOLDER-STEP,RR,RH,SILVER NO.25

34003-1276-CE

$101.58

34003D

HOLDER-STEP,FR,LH,SILVER NO.25

34003-1303-CE

$104.49

34003F

HOLDER-STEP,FR,RH,SILVER NO.25

34003-1304-CE

$104.49

34028

STEP,FR,LH

34028-1193

$37.38

34028A

STEP,FR,RH

34028-1194

$37.38

34028B

STEP,RR,LH

34028-1195

$39.15

34028C

STEP,RR,RH

34028-1196

$39.15

92002

BOLT,FLANGED,8X20

92002-1417

$4.76

92002A

BOLT,SOCKET,8X20

92002-1493

$2.15

92002B

BOLT,SOCKET,8X23.5

92002-1598

$6.27

92022

WASHER,STEP FITTING

92022-1314

$5.24

92022A

WASHER,STEP FITTING

92022-1797

$5.24

92043

PIN,6X28

92043-079

$8.10

92043A

PIN,8X36.5

92043-1339

$7.84

482

CIRCLIP-TYPE-E

482L7000

$3.92

550

PIN COTTER 2.0X15

550D2015

$1.04

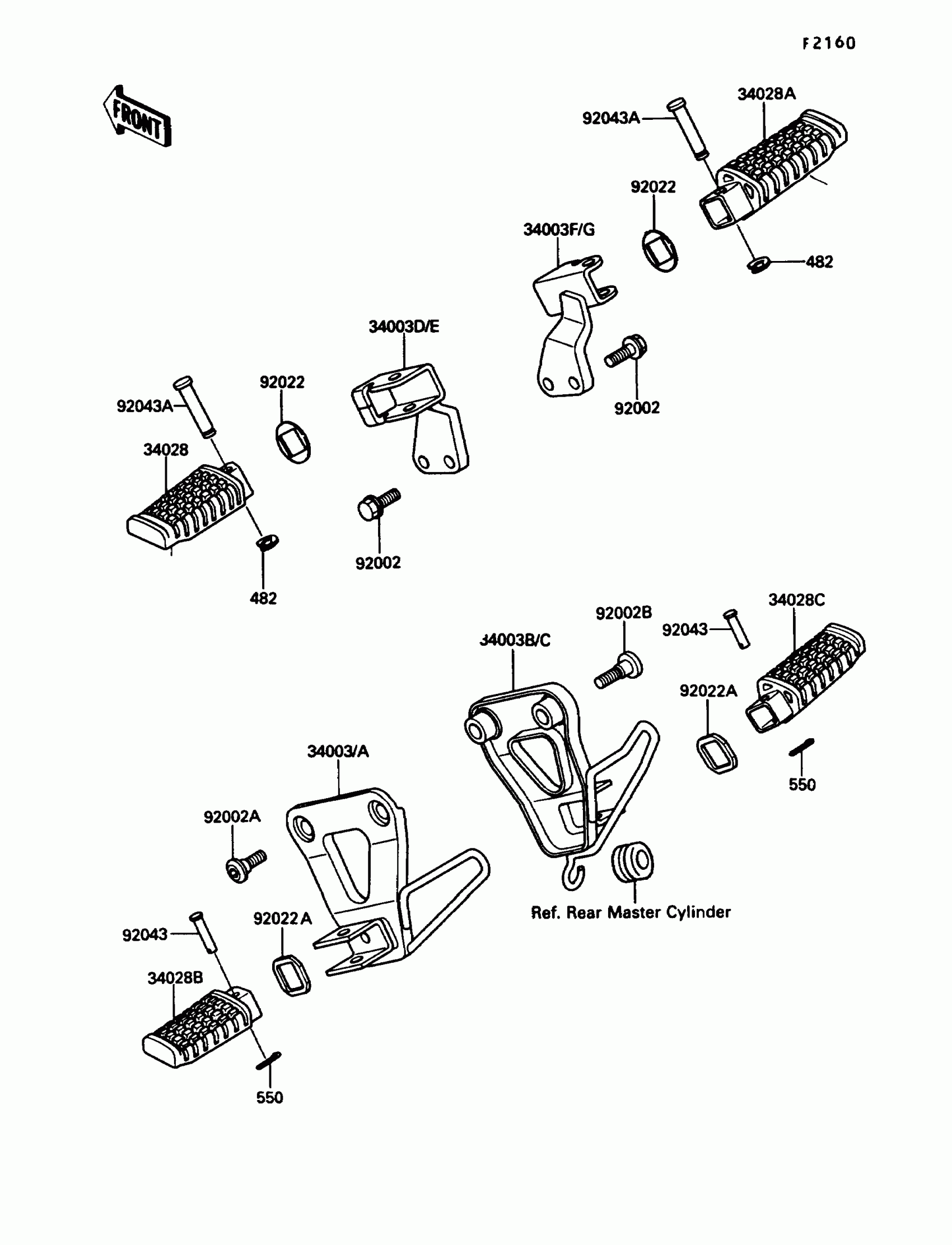

Kawasaki KLR650 Step Diagram

HOLDER-STEP,RR,LH,SILVER NO.25

HOLDER-STEP,RR,RH,SILVER NO.25

HOLDER-STEP,FR,LH,SILVER NO.25

HOLDER-STEP,FR,RH,SILVER NO.25

STEP,FR,LH

STEP,FR,RH

STEP,RR,LH

STEP,RR,RH

BOLT,FLANGED,8X20

BOLT,SOCKET,8X20

BOLT,SOCKET,8X23.5

WASHER,STEP FITTING

WASHER,STEP FITTING

PIN,6X28

PIN,8X36.5

CIRCLIP-TYPE-E

PIN COTTER 2.0X15
