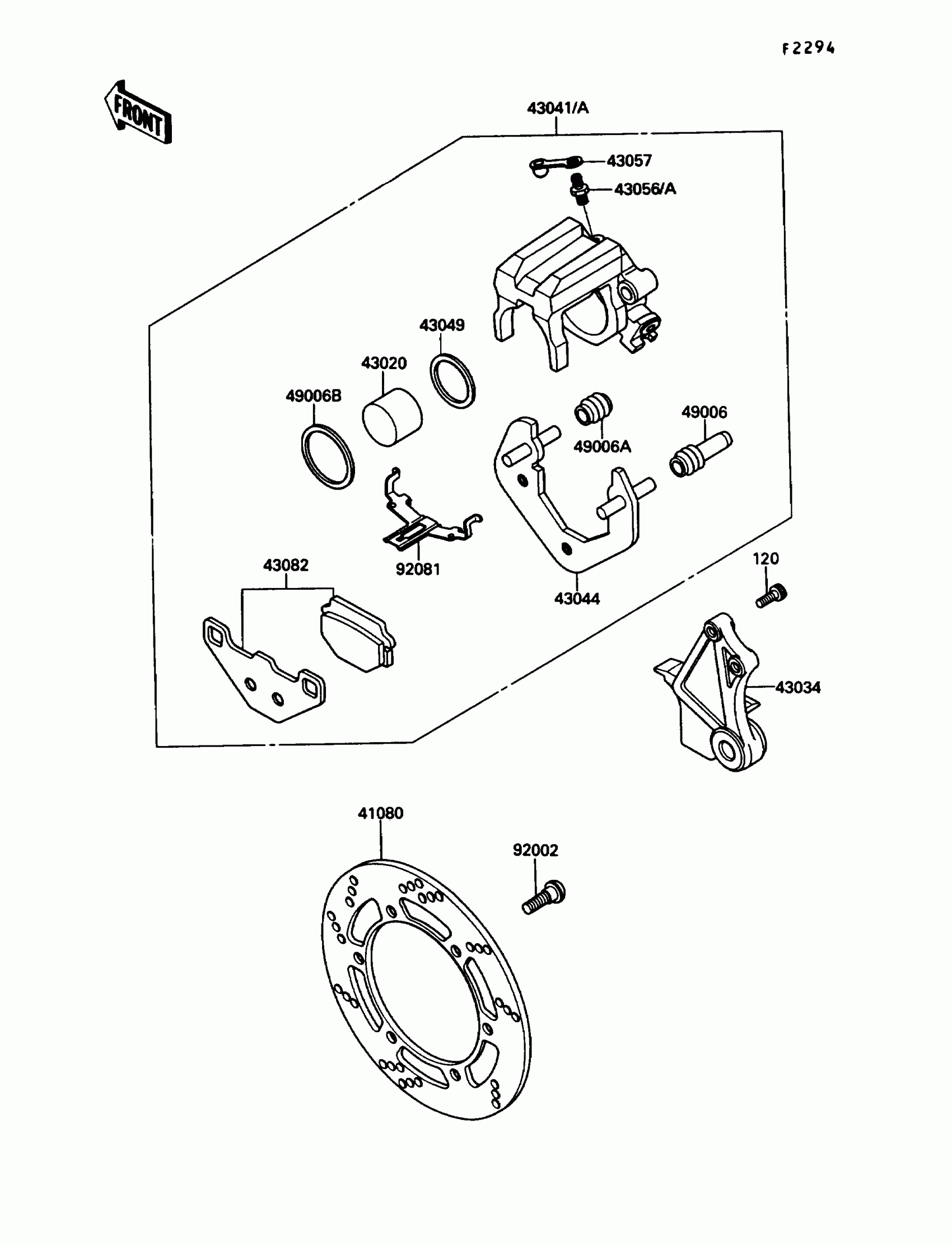

Kawasaki KLR650 Rear Caliper Diagram

Description

Price

41080

DISC,RR

41080-1179

$278.69

43020

PISTON-COMP-BRAKE

43020-1082

$72.80

43034

HOLDER-BRAKE,REAR CALIPER

43034-1094

$132.20

43041A

CALIPER-ASSY,RR

43041-1378

$424.82

43044

HOLDER-COMP-CALIPER,RR

43044-1075

$166.48

43049

PACKING,PISTON SEAL

43049-1026

$13.10

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1096

$50.42

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

49006B

BOOT,PISTON

49006-1091

$17.39

92002

BOLT,DISC PLATE,8MM

92002-1878

$4.69

92081

SPRING,PAD

92081-1341

$14.76

120

BOLT-SOCKET,8X16

120P0816

$4.15
