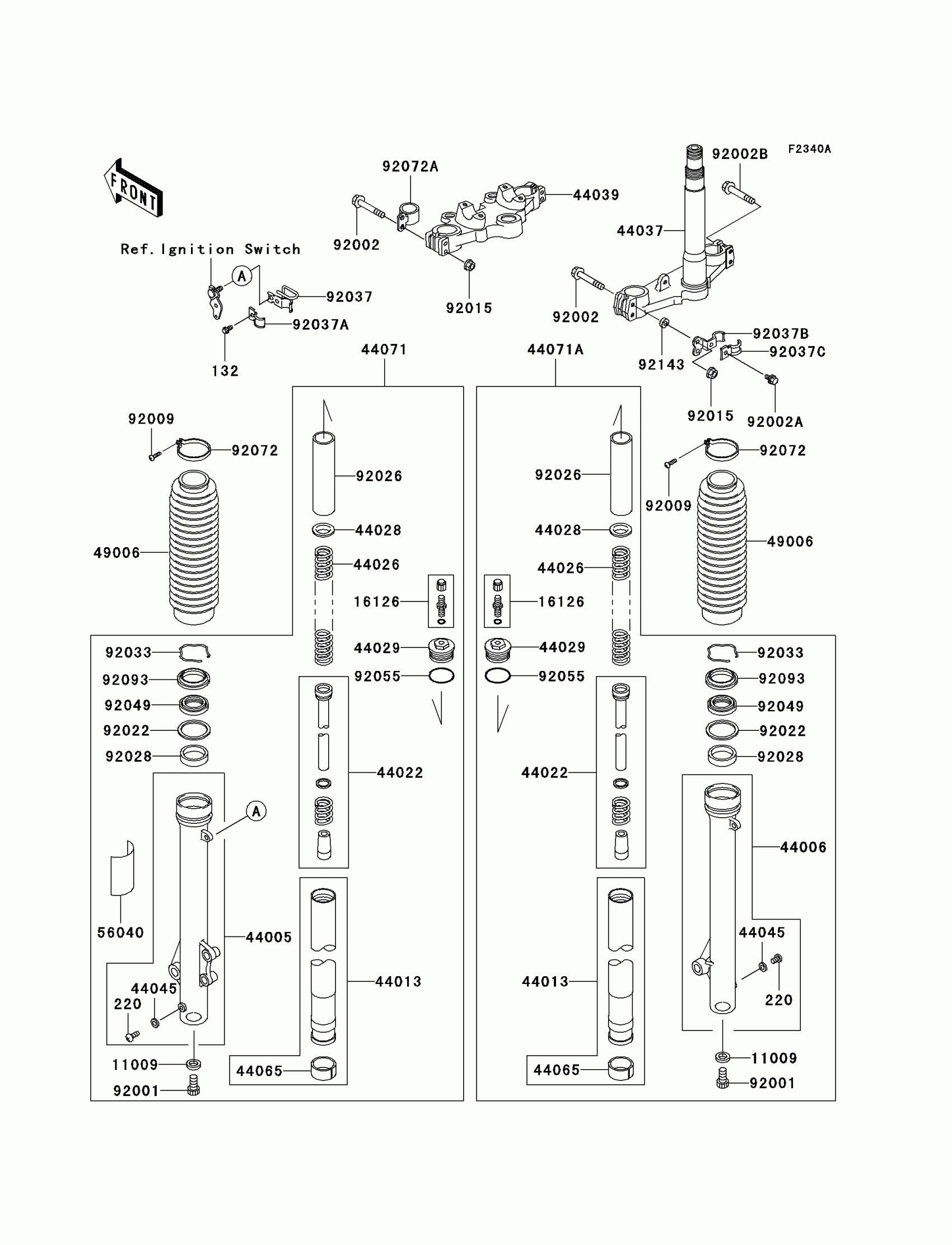

Kawasaki KLR650 Front Fork(A7F) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

220

SCREW-PAN-CROS,4X6

220R0406

$2.97

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

16126

VALVE,AIR

16126-1052

$35.06

44005

PIPE-LEFT FORK OUTER

44005-0011

$518.31

44006

PIPE-RIGHT FORK OUTER

44006-0011

$518.31

44013

PIPE-FORK INNER

44013-1264

$421.10

44022

CYLINDER-FORK

44022-1211

$189.81

44026

SPRING-FRONT FORK

44026-1369

$72.91

44028

GUIDE-FORK SPRING

44028-1003

$11.28

44029

SEAT-FORK SPRING

44029-1042

$72.14

44037

HOLDER-FORK UNDER

44037-1207

$621.65

44039

HOLDER-FORK UPPER

44039-1160

$316.18

44045

GASKET,FORK DRAIN PLUG

44045-002

$5.18

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1057

$49.26

44071

DAMPER-ASSY,FORK,LH

44071-0061

$861.64

44071A

DAMPER-ASSY,FORK,RH

44071-0062

$861.64

49006

BOOT,FORK,BLACK

49006-1222-BD

$80.75

56040

LABEL-WARNING,FRONT FORK

56040-1120

$6.10

92001

BOLT,FORK CYLINDER

92001-1309

$7.62

92002

BOLT,FLANGED,8X55

92002-1158

$9.23

92002A

BOLT

92002-1982

$5.18

92002B

BOLT,FLANGED,8X45

92002-1983

$19.43

92009

SCREW,4X16

92009-1348

$5.18

92015

NUT,FLANGED,8MM

92015-1408

$5.38

92022

WASHER

92022-1242

$8.60

92026

SPACER

92026-1294

$43.78

92028

BUSHING

92028-1125

$25.96

92033

RING-SNAP,FORK

92033-1047

$6.46

92037

CLAMP,HOSE

92037-1897

$15.89

92037A

CLAMP,HOSE

92037-1898

$8.58

92037B

CLAMP

92037-1913

$20.72

92037C

CLAMP

92037-1931

$10.42

92049

SEAL-OIL,FRONT FORK

92049-1180

$22.14

92055

RING-O,FORK TOP CAP

92055-1050

$6.27

92072

BAND,BOOT

92072-1171

Unavailable

92072A

BAND,CABLE

92072-1225

$23.47

92093

SEAL,FRONT FORK

92093-1166

$18.22

92143

COLLAR

92143-1134

$12.78
