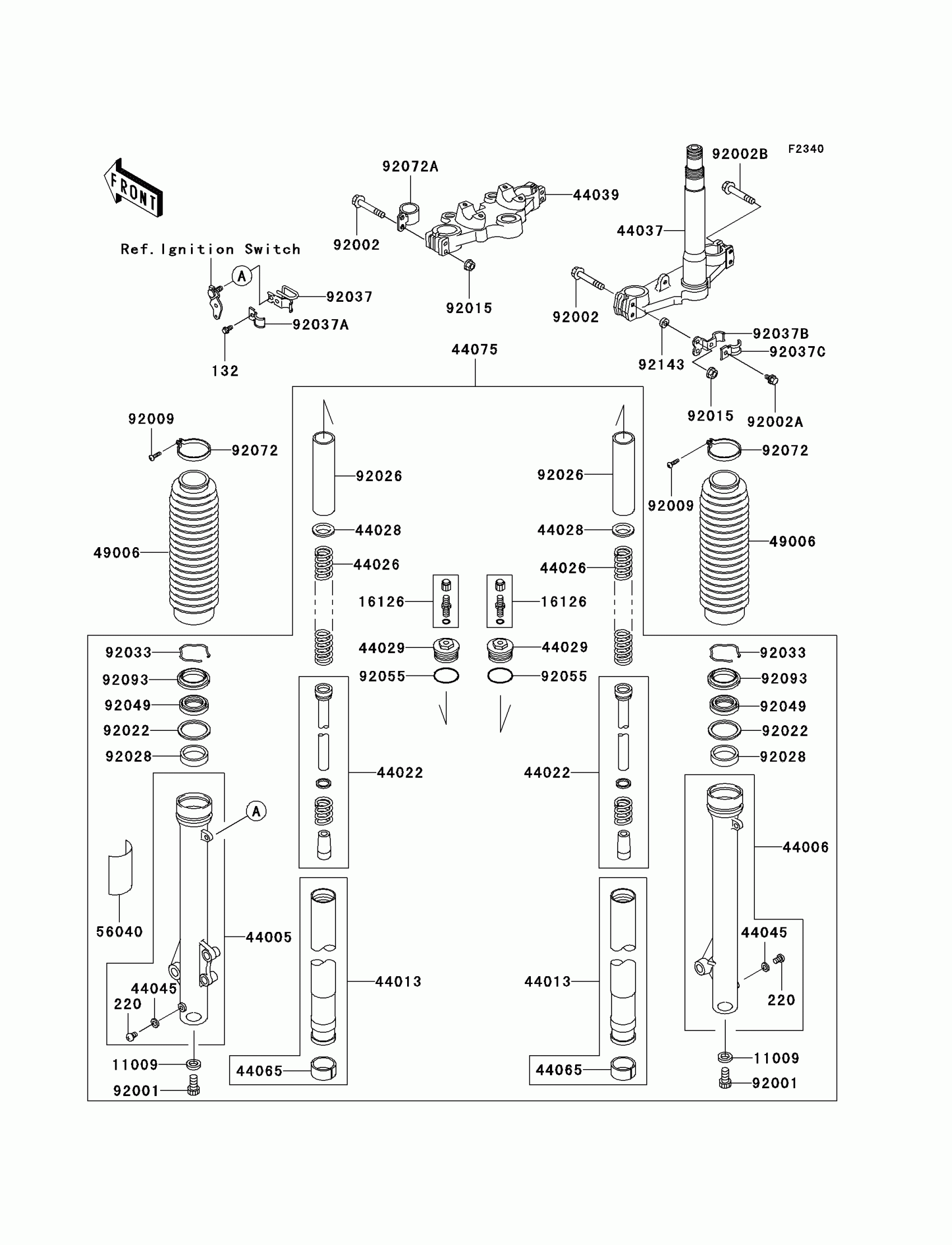

Kawasaki KLR650 Front Fork(A6F) Diagram
#
132
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
220
SCREW-PAN-CROS,4X6
220R0406
$2.97
11009
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
16126
VALVE,AIR
16126-1052
$35.06
44005
PIPE-LEFT FORK OUTER
44005-0011
$518.31
44006
PIPE-RIGHT FORK OUTER
44006-0011
$518.31
44013
PIPE-FORK INNER
44013-1264
$421.10
44022
CYLINDER-FORK
44022-1211
$189.81
44026
SPRING-FRONT FORK
44026-1369
$72.91
44028
GUIDE-FORK SPRING
44028-1003
$11.28
44029
SEAT-FORK SPRING
44029-1042
$72.14
44037
HOLDER-FORK UNDER
44037-1207
$621.65
44039
HOLDER-FORK UPPER
44039-1160
$316.18
44045
GASKET,FORK DRAIN PLUG
44045-002
$5.18
44065
BUSHING-FRONT FORK,INNER PIPE
44065-1057
$49.26
44075
DAMPER-SET-FORK
44075-5004
$1,146.62
49006
BOOT,FORK,BLACK
49006-1222-BD
$80.75
56040
LABEL-WARNING,FRONT FORK
56040-1120
$6.10
92001
BOLT,FORK CYLINDER
92001-1309
$7.62
92002
BOLT,FLANGED,8X55
92002-1158
$9.23
92002A
BOLT
92002-1982
$5.18
92002B
BOLT,FLANGED,8X45
92002-1983
$19.43
92009
SCREW,4X16
92009-1348
$5.18
92015
NUT,FLANGED,8MM
92015-1408
$5.38
92022
WASHER
92022-1242
$8.60
92026
SPACER
92026-1294
$43.78
92028
BUSHING
92028-1125
$25.96
92033
RING-SNAP,FORK
92033-1047
$6.46
92037
CLAMP,HOSE
92037-1897
$15.89
92037A
CLAMP,HOSE
92037-1898
$8.58
92037B
CLAMP
92037-1913
$20.72
92037C
CLAMP
92037-1931
$10.42
92049
SEAL-OIL,FRONT FORK
92049-1180
$22.14
92055
RING-O,FORK TOP CAP
92055-1050
$6.27
92072
BAND,BOOT
92072-1171
Unavailable
92072A
BAND,CABLE
92072-1225
$23.47
92093
SEAL,FRONT FORK
92093-1166
$18.22
92143
COLLAR
92143-1134
$12.78
