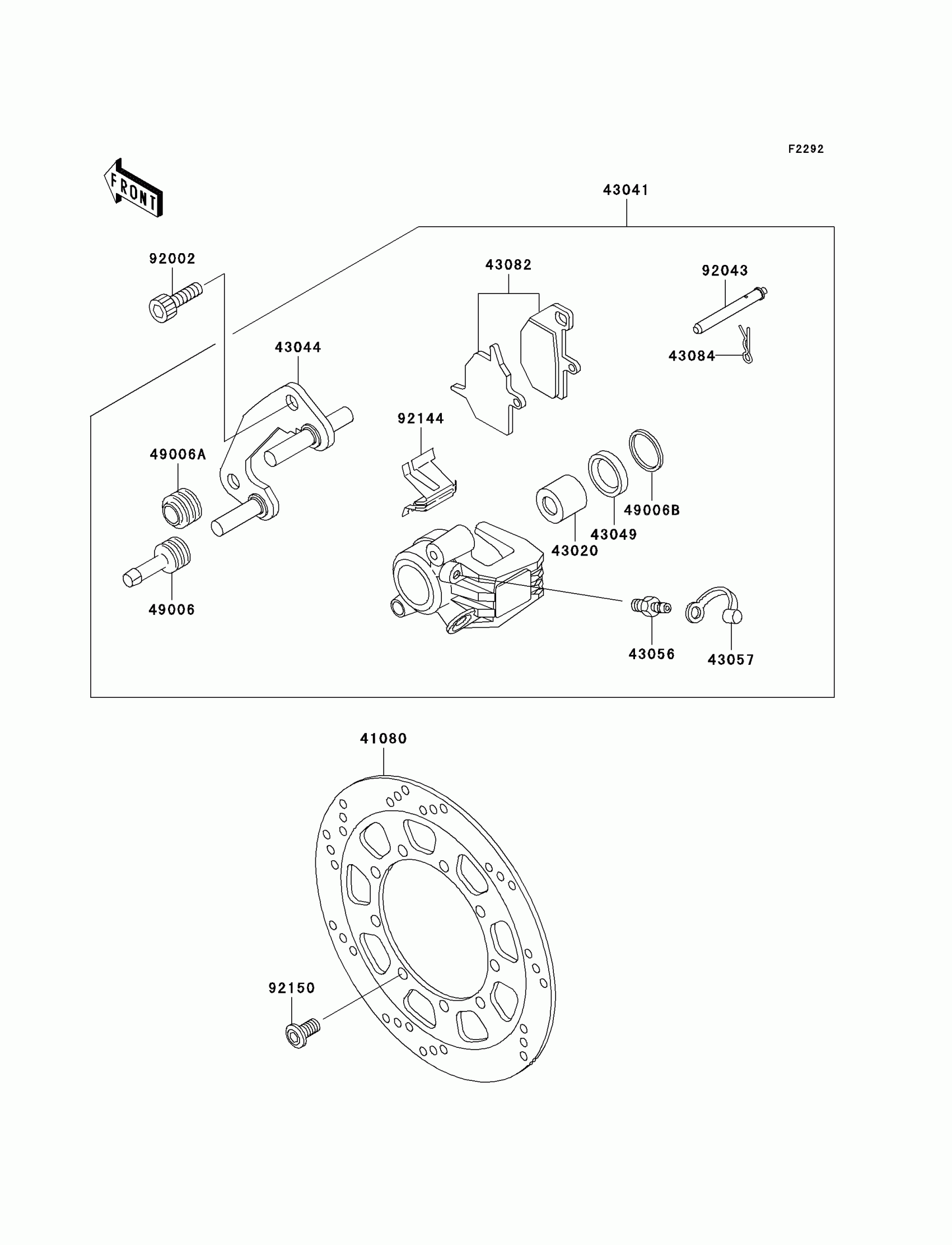

Kawasaki KLR650 Front Brake(A15-A17) Diagram

Description

Price

41080

DISC,FR

41080-1178

$443.35

43020

PISTON-COMP-BRAKE

43020-1097

$72.80

43041

CALIPER-ASSY,FR,LH,BLACK

43041-1907-DJ

$424.82

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1074

$166.48

43049

PACKING,PISTON SEAL

43049-1097

$11.06

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1078

$63.94

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

49006B

BOOT,PISTON SEAL

49006-1212

$23.25

92002

BOLT,SOCKET,8X25

92002-1442

$5.05

92043

PIN,PAD

92043-1356

$10.65

92144

SPRING,PAD

92144-1117

$42.12

92150

BOLT,8X15

92150-1852

$4.69
