Description

Price

35004A

FENDER-FRONT,B.BLUE

35004-1199-6K

$159.15

35019

FLAP,RR

35019-1186

$73.47

35023

FENDER-REAR,RR,P.WHITE

35023-1180-6F

Unavailable

35023A

FENDER-REAR,FR

35023-1181

$64.03

35023B

FENDER-REAR,FR

35023-1195

$70.17

92002

BOLT,6X16

92002-1187

Unavailable

92009

SCREW,6X14

92009-1288

$3.92

92015

NUT,6MM

92015-1602

$7.34

92027

COLLAR

92027-1745

$8.58

92027A

COLLAR

92027-1794

$4.31

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP

92037-1901

Unavailable

92037B

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92039

RIVET

92039-1038

Unavailable

92071

GROMMET

92071-1027

Unavailable

130

BOLT,FLANGED,6X20

130B0620

$1.69

410

WASHER PLAIN 4MM

410B0400

$0.48

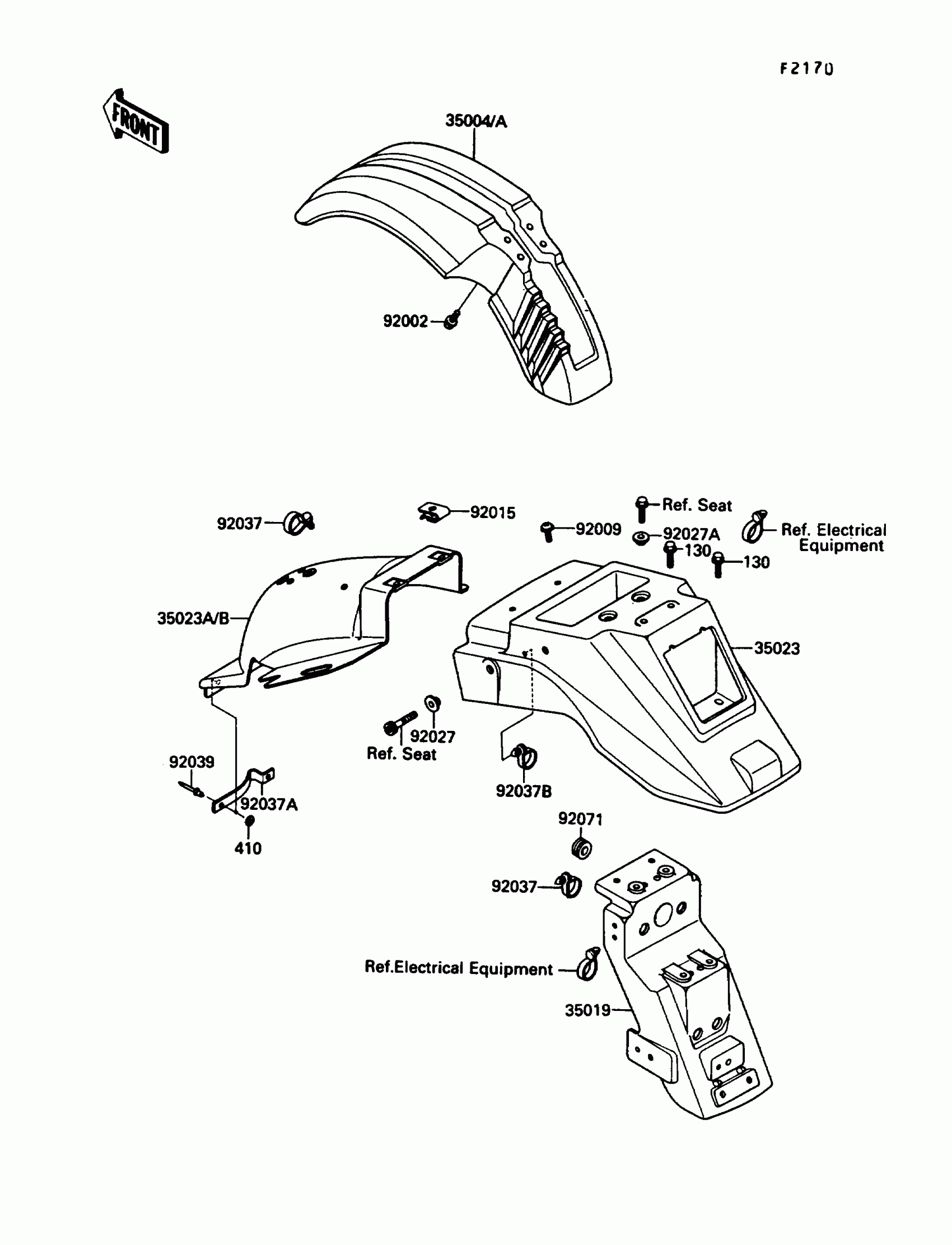

Kawasaki KLR650 Fender Diagram

FENDER-FRONT,B.BLUE

FLAP,RR

FENDER-REAR,RR,P.WHITE

FENDER-REAR,FR

FENDER-REAR,FR

BOLT,6X16

SCREW,6X14

NUT,6MM

COLLAR

COLLAR

CLAMP,SPEED,L=58

CLAMP

CLAMP,SPEED,L=80.5

RIVET

GROMMET

BOLT,FLANGED,6X20

WASHER PLAIN 4MM
