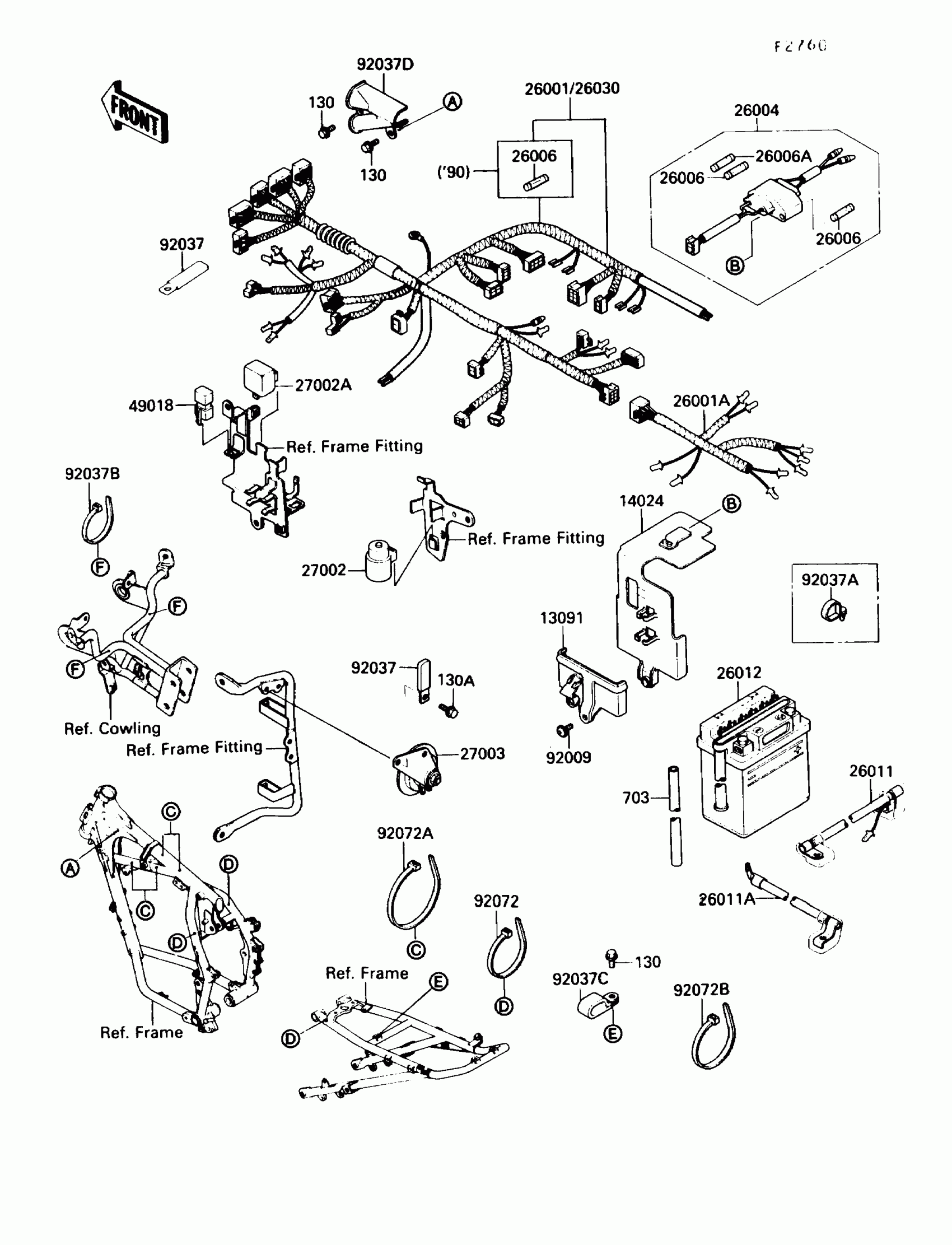

Kawasaki KLR650 Electrical Equipment Diagram

#

Description
Price

13091

HOLDER,BATTERY COVER

13091-1484

$19.07

14024

COVER,BATTERY

14024-1375

$33.65

26001A

HARNESS,RR

26001-1822

$52.38

26004

FUSE-ASSY

26004-1076

$45.48

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$4.96

26006A

FUSE,20A,L=30

26006-1056

$5.06

26011

WIRE-LEAD,BATTERY(+)

26011-1386

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1387

$38.20

26012

BATTERY,12V 14AH,FB14L-A2

26012-1219

$106.84

26030

HARNESS,MAIN

26030-1008

$272.22

27002

RELAY-ASSY

27002-1051

$52.57

27002A

RELAY-ASSY,TURN SIGNAL

27002-1053

$58.83

27003

HORN

27003-1273

$78.61

49018

DIODE

49018-1052

Unavailable

92009

SCREW,6X10

92009-1402

$2.41

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$6.57

92037B

CLAMP

92037-1173

$3.49

92037C

CLAMP

92037-1608

$8.10

92037D

CLAMP,HARNESS

92037-1906

$16.49

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=365

92072-1197

$7.84

92072B

BAND,L=250

92072-1237

$2.14

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT-FLANGED,6X14

130D0614

Unavailable

703

TUBE-RUBBER,8X12X580

703A08580

$20.77
