Description

Price

11009

GASKET,14X18X1.5

11009-1430

$6.51

12004

VALVE-INTAKE

12004-1077

Unavailable

12005

VALVE-EXHAUST

12005-1052

$73.78

12009

RETAINER-VALVE SPRING

12009-1054

$10.86

12011

COLLET

12011-1003

$4.65

12016

ARM-ROCKER

12016-1051

Unavailable

12016A

ARM-ROCKER,EXHAUST

12016-1083

Unavailable

12016B

ARM-ROCKER,EXHAUST

12016-1083

Unavailable

12016C

ARM-ROCKER,EXHAUST

12016-1083

Unavailable

12016D

ARM-ROCKER,EXHAUST

12016-1083

Unavailable

12016E

ARM-ROCKER,INTAKE

12016-1071

$118.18

12020

SHAFT-ROCKER,INTAKE

12020-1055

$43.10

12020A

SHAFT-ROCKER,EXHAUST

12020-1056

$43.10

16007

SEAT-SPRING,17.5X23.8X0.5

16007-1144

$6.16

16007A

SEAT-SPRING,12.1X16.2X0.5

16007-1143

$5.54

49078

SPRING-ENGINE VALVE,INNER

49078-1051

$16.53

49078A

SPRING-ENGINE VALVE,OUTER

49078-1056

$15.06

92009

SCREW,7MM

92009-1279

$10.62

92015

NUT,7MM

92015-1325

$5.00

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$5.13

92081

SPRING,ROCKER ARM

92081-1740

$4.35

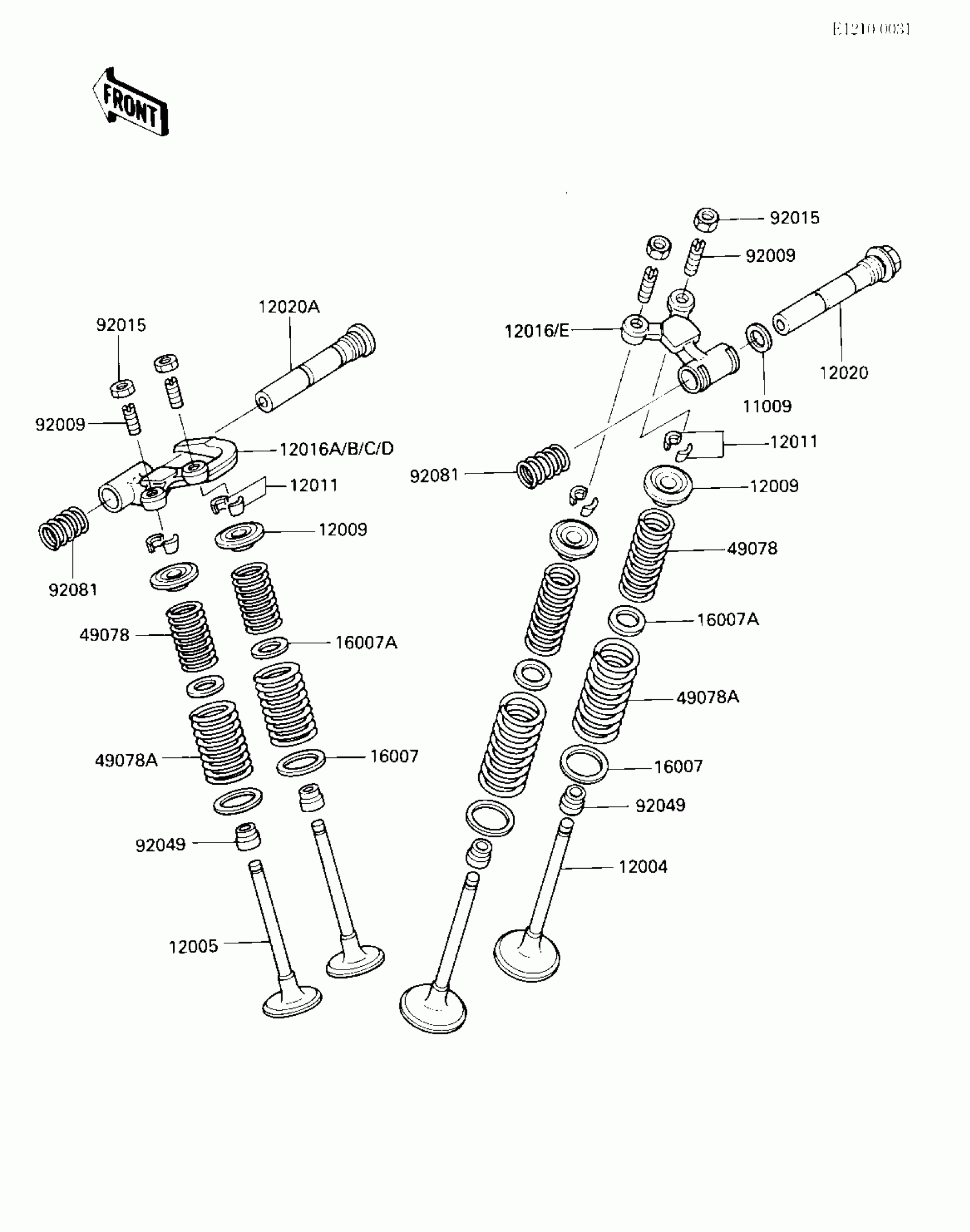

Kawasaki KLR250 ROCKER ARMS/VALVES Diagram

GASKET,14X18X1.5

VALVE-INTAKE

VALVE-EXHAUST

RETAINER-VALVE SPRING

COLLET

ARM-ROCKER

ARM-ROCKER,EXHAUST

ARM-ROCKER,EXHAUST

ARM-ROCKER,EXHAUST

ARM-ROCKER,EXHAUST

ARM-ROCKER,INTAKE

SHAFT-ROCKER,INTAKE

SHAFT-ROCKER,EXHAUST

SEAT-SPRING,17.5X23.8X0.5

SEAT-SPRING,12.1X16.2X0.5

SPRING-ENGINE VALVE,INNER

SPRING-ENGINE VALVE,OUTER

SCREW,7MM

NUT,7MM

SEAL-OIL,RVC2-5.5X8.5X8.3

SPRING,ROCKER ARM
