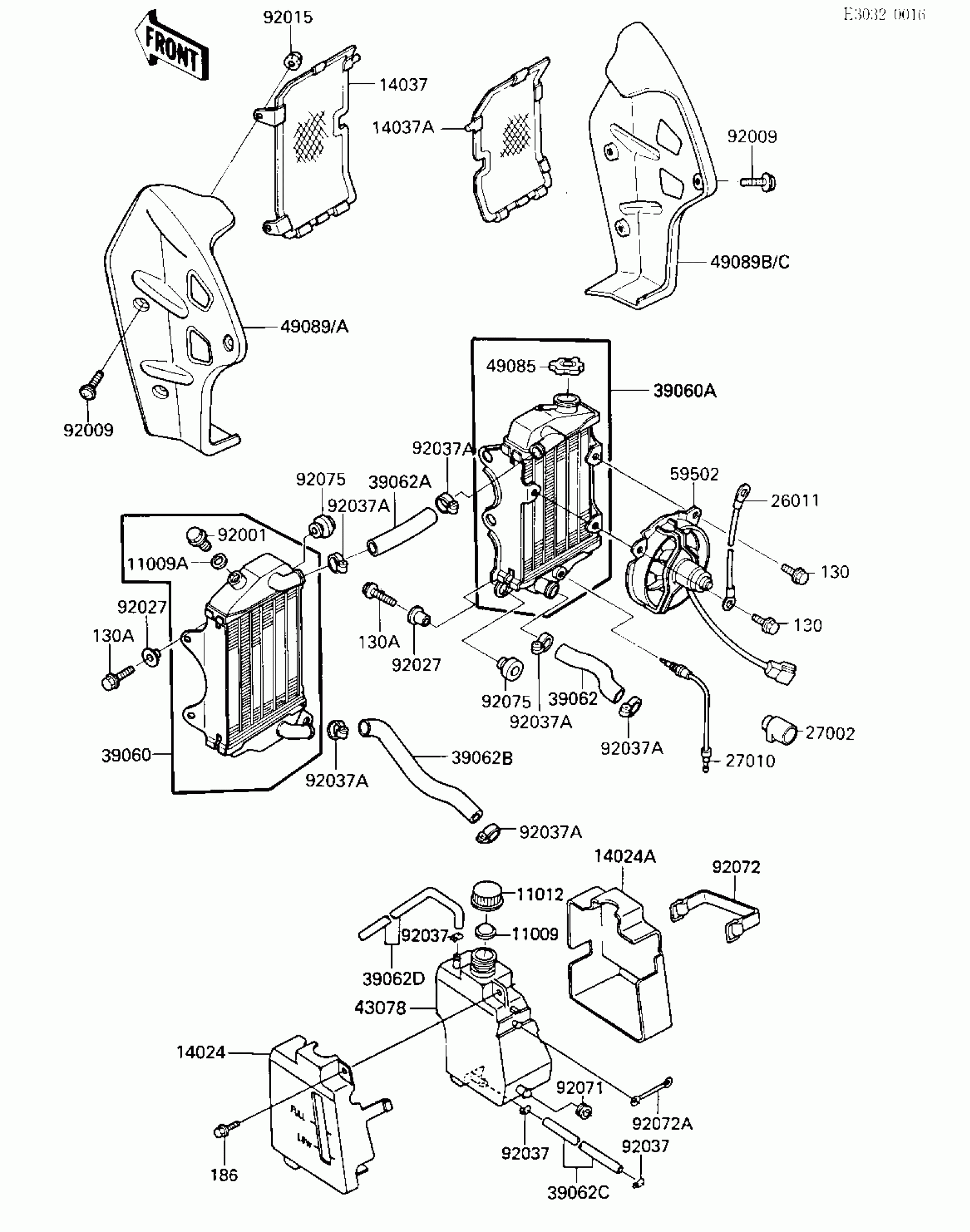

Kawasaki KLR250 RADIATOR/FAN/COOLANT TANK Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11009A

GASKET,DRAIN BOLT

11009-1152

$7.55

11012

CAP

11012-1084

$1.72

14024

COVER,RESERVOIR

14025-1991

$36.67

14024A

COVER,RESERVOIR

14025-1992

$36.67

14037

SCREEN,LH

14037-1061

$68.03

14037A

SCREEN,RH

14037-1062

$68.03

26011

WIRE-LEAD

26011-1278

$7.56

27002

RELAY-ASSY

27002-1051

$52.57

27010

SWITCH,FAN

27010-1180

$134.14

39060

RADIATOR,LH

39060-1060

$601.16

39060A

RADIATOR,RH

39060-1061

$547.56

39062

HOSE-COOLING

39062-1083

$29.73

39062A

HOSE-COOLING

39062-1084

$18.77

39062B

HOSE-COOLING

39062-1085

$35.42

39062C

HOSE-COOLING

39062-1086

$19.59

39062D

HOSE-COOLING

39062-1131

$20.10

43078

RESERVOIR,TANK

43078-1061

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1052

$53.94

49089

SHROUD-ENGINE,LH,BLUE

49089-1057-BA

$58.33

49089B

SHROUD-ENGINE,RH,BLUE

49089-1058-BA

$32.07

59502

FAN-ASSY

59502-1052

$596.05

92001

BOLT,RADIATOR DRAIN

92002-1682

$20.51

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92027

COLLAR,6.5X10X14.1

92027-1183

$5.52

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,COOLING HOSE

92037-1589

$18.57

92071

GROMMET

92071-1115

$5.46

92072

BAND,L=82

92072-053

$12.35

92072A

BAND,L=58

92072-1156

$7.24

92075

DAMPER

92075-1352

$6.52

130

BOLT-FLANGED,6X12

130J0612

$2.19

130A

BOLT-FLANGED

130J0620

$0.43

186

BOLT-UPSET-WP

186J0618

$3.84
