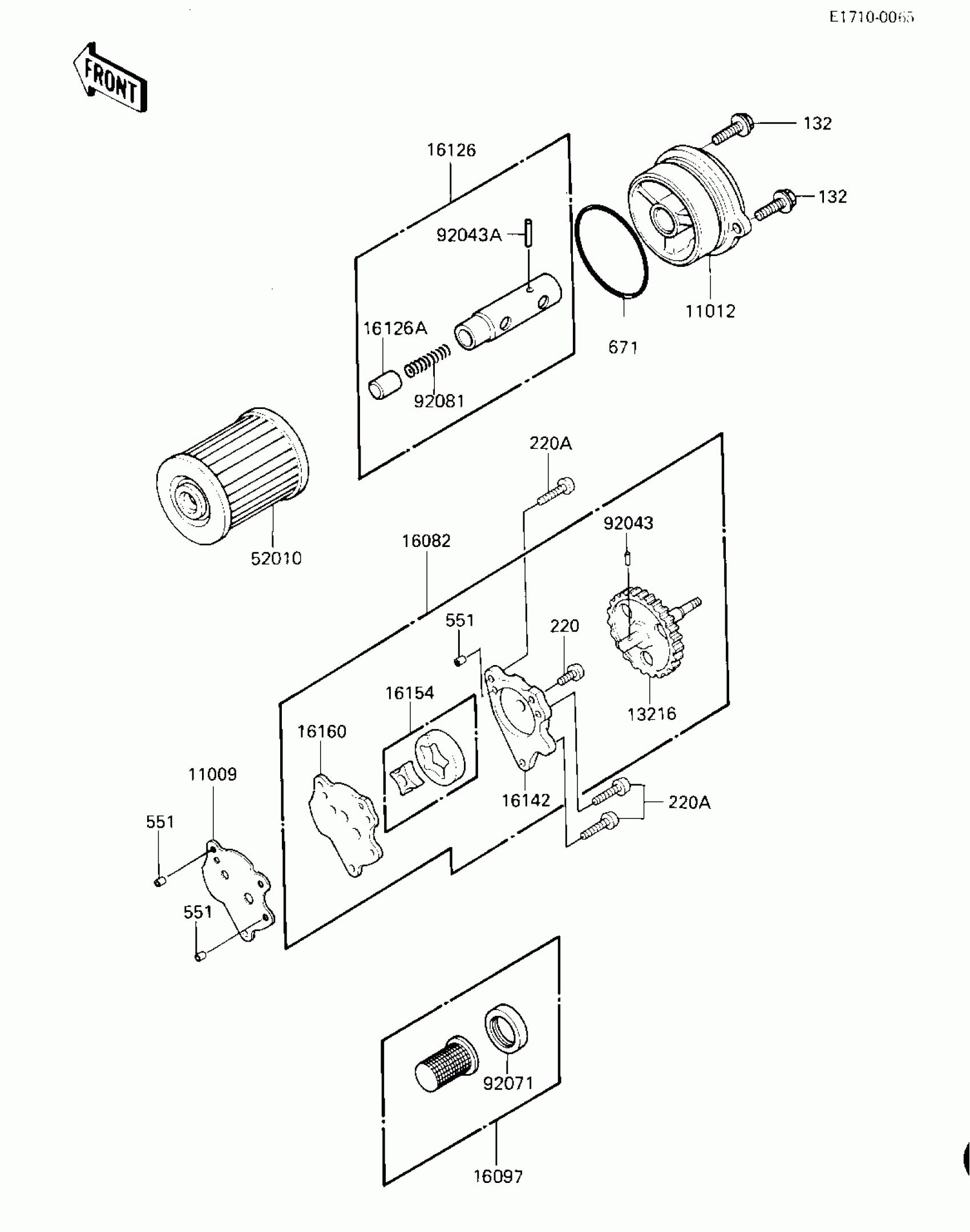

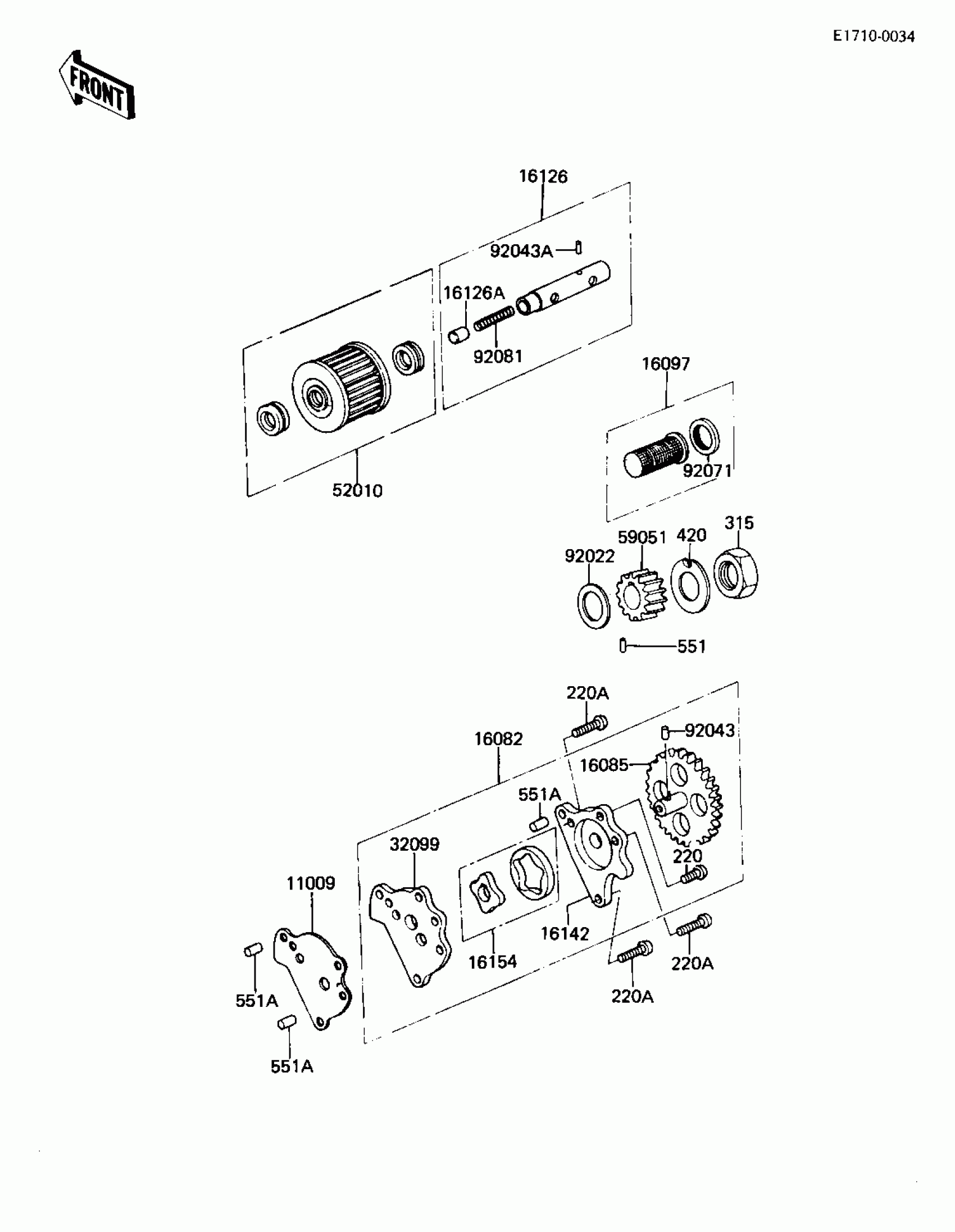

Kawasaki KLR250 OIL PUMP/OIL FILTER Diagram

Description

Price

11009

GASKET,OIL PUMP

11060-1115

$5.18

16082

PUMP ASSY OIL

16082-1015

$181.60

16085

GEAR,OIL PUMP

16085-026

Unavailable

16097

FILTER-ASSY-OIL

16097-1001

$12.23

16126

PISTON-ASSY,VALVE,BY-PASS

16156-002

$23.25

16126A

VALVE

92136-002

$4.65

16142

COVER OIL PUMP

16142-1006

$22.35

16154

ROTOR-PUMP

16154-1008

$34.82

32099

BODY,OIL PUMP

16141-006

$24.49

52010

ELEMENT-OIL FILTER

16099-004

$9.26

59051

GEAR,OIL PUMP

16084-018

$11.54

92022

WASHER,THRUST,16.5X28X1

92022-170

$9.28

92043

PIN,DOWEL,4X12.8

92042-041

$6.57

92043A

PIN,SPRING,2.2X13.5

92043-123

$4.69

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92081

SPRING,PISTON

92081-043

$5.46

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

220A

SCREW PAN HEAD 6X25

220B0625

$2.60

315

NUT-HEX-FINE,16MM

315B1600

Unavailable

420

WASHER-CLAW,16MM

420B1611

$3.59

551

PIN DOWEL 3X12

551A0312

Unavailable

551A

PIN-DOWEL,6X8

551A0608

$3.92
