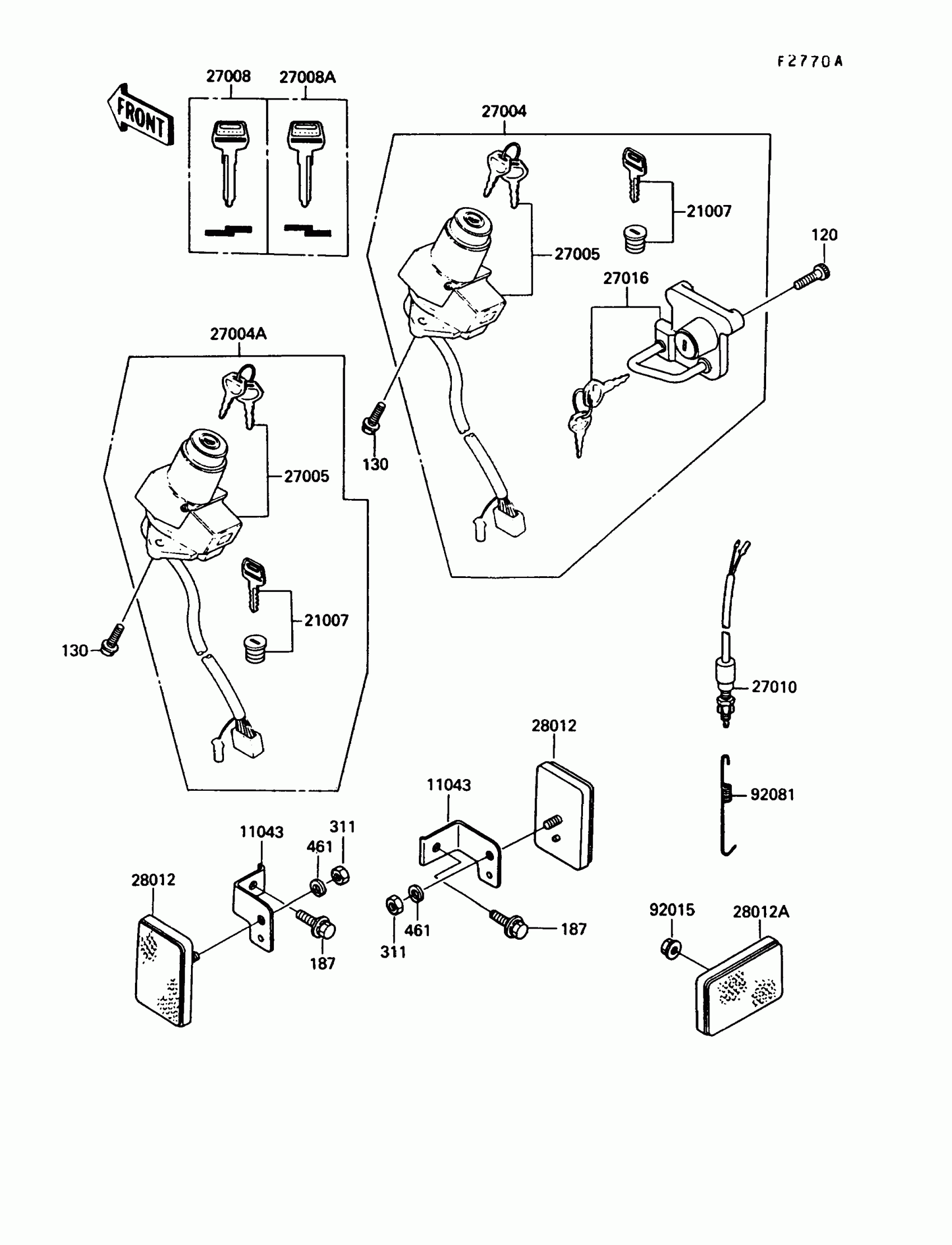

Kawasaki KLR250 Ignition Switch(KL250-D8/D9) Diagram

Description

Price

11043

BRACKET,REFLECTOR,FR

11043-1362

$12.76

21007

ROTOR,LOCK,TANK CAP

21007-5022

$72.74

27004

SWITCH-ASSY

27004-5397

$262.43

27004A

SWITCH-ASSY

27004-5414

$166.48

27005

SWITCH-ASSY-IGNITION

27005-1103

$187.43

27008

KEY-LOCK,BLANK,#A

27008-1034

$18.85

27008A

KEY-LOCK,BLANK,#B

27008-1035

Unavailable

27010

SWITCH,REAR BRAKE

27010-1019

$35.68

27016

LOCK-ASSY,HELMET

27016-5075

$104.05

28012

REFLECTOR-REFLEX

28012-1003

$22.09

28012A

REFLECTOR-REFLEX,RR

28012-1054

$22.46

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

$8.14

120

BOLT-SOCKET,6X12

120S0612

$2.33

130

BOLT-FLANGED,6X14

130D0614

Unavailable

187

BOLT-UPSET-WSP

187C0614

Unavailable

311

NUT-HEX

311B0500

$0.47

461

WASHER SPRING 5MM

461F0500

$0.69
