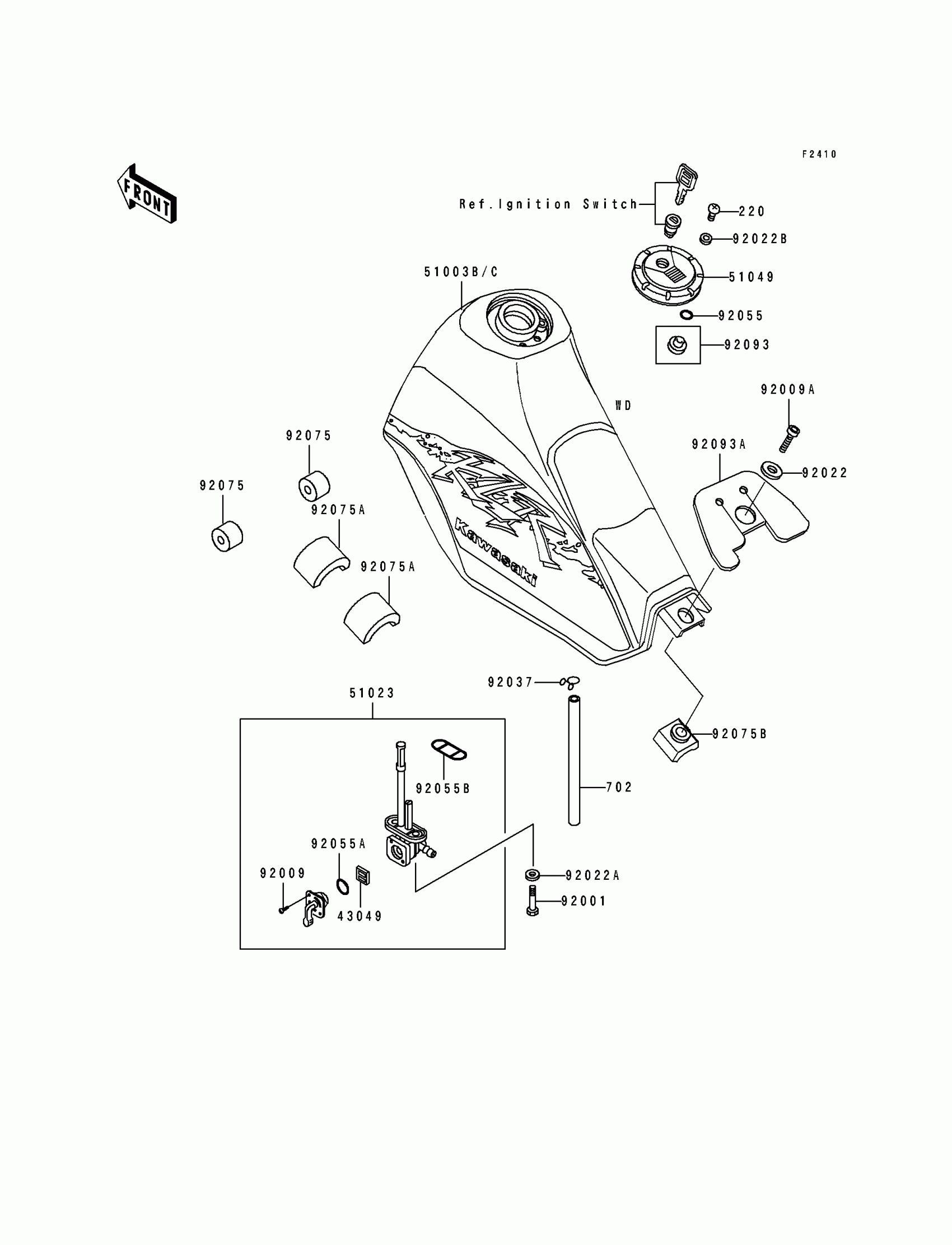

Kawasaki KLR250 Fuel Tank(KL250-D10) Diagram

Description

Price

43049

PACKING,FUEL TAP LEVER

43049-1017

$7.26

51003B

TANK-COMP-FUEL,P.WHITE

51003-5217-F1

$773.15

51003C

TANK-COMP-FUEL,P.WHITE

51003-5221-F1

$794.94

51023

TAP-ASSY,FUEL

51023-1112

$138.53

51049

CAP-TANK,FUEL

51049-1077

$108.49

92001

BOLT,6X20

92001-1091

$3.92

92009

SCREW,3X5

92009-1123

$0.59

92009A

SCREW,6X8

92009-1294

$4.18

92022

WASHER,6.2X38X1.2

92022-1659

$5.23

92022A

WASHER-PLAIN

92022-183

$3.92

92022B

WASHER,5.1X10X1.0

92022-1977

$3.65

92037

CLAMP

92037-1610

$2.00

92055

RING-O

92055-1023

$3.92

92055A

RING-O,FUEL TAP LEVER

92055-1111

$5.00

92055B

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER,FUEL TANK

92075-1382

$28.97

92075B

DAMPER,FUEL TANK

92075-1638

$9.56

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92093A

SEAL,FUEL TANK

92093-1182

$29.34

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,5X750

702A05750

$23.27
