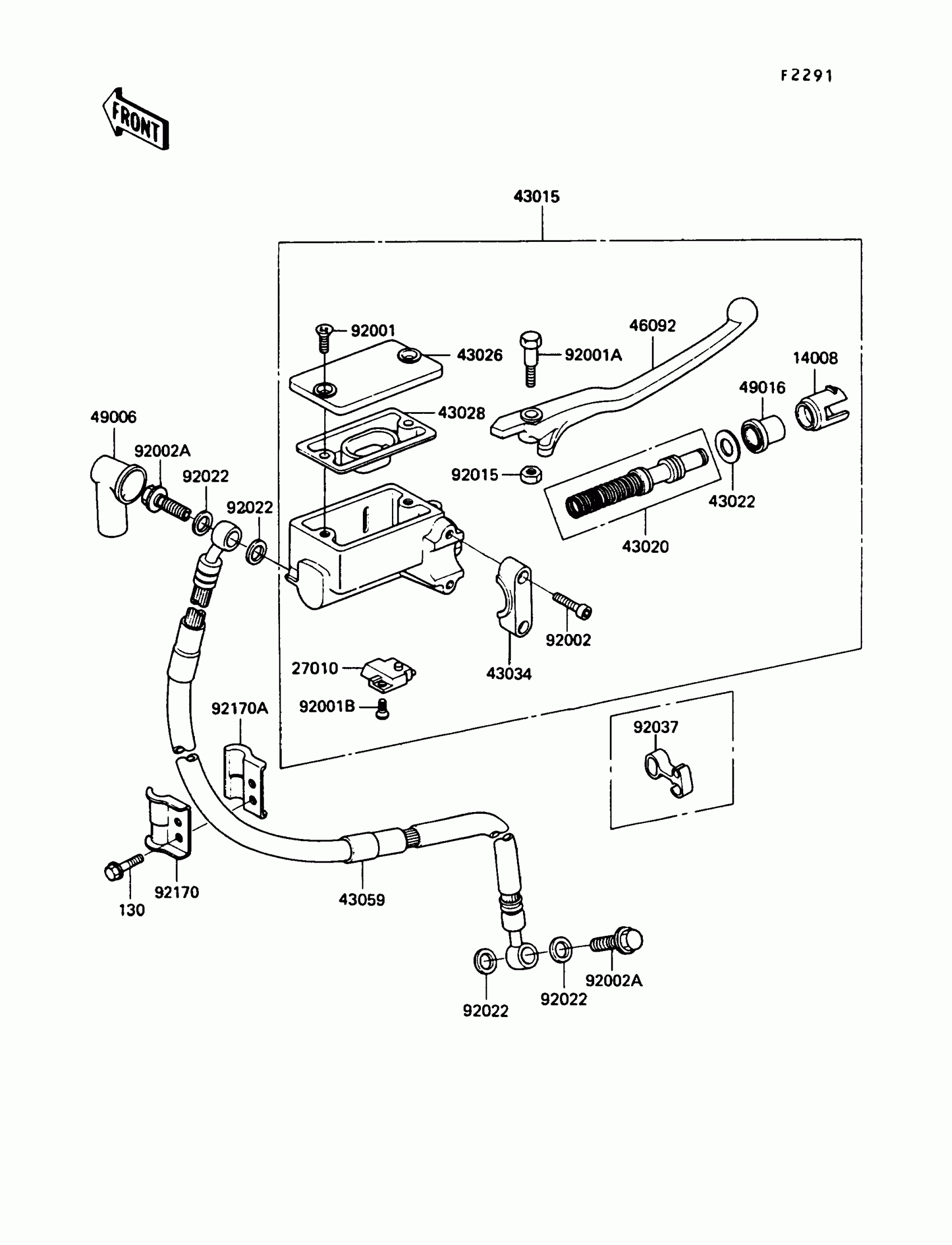

Kawasaki KLR250 Front Master Cylinder(KL250-D7) Diagram

Description

Price

14008

LINER

14008-1030

Unavailable

27010

SWITCH,BRAKE

27010-1056

$44.98

43015

CYLINDER-ASSY-MASTER,FR

43015-1257

Unavailable

43020

PISTON-COMP-BRAKE

43020-1021

$66.01

43022

STOPPER-BRAKE

43022-1008

Unavailable

43026

CAP-BRAKE

43026-1020

$39.19

43028

DIAPHRAGM

43028-1022

Unavailable

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1055

$29.84

43059

HOSE-BRAKE,FR

43059-1281

$136.16

46092

LEVER-GRIP,FRONT BRAKE

46092-1114

$45.02

49006

BOOT,DUST

49006-1040

$11.49

49016

COVER-SEAL

49016-1035

$8.40

92001

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

92001A

BOLT,6X37.3,BLACK

92001-1512

$9.90

92001B

SCREW-CSK-CROS,4X10,BLACK

92001-1532

$4.87

92002

BOLT,SOCKET,6X22

92002-1326

Unavailable

92002A

BOLT,OIL,L=23

92002-1888

$5.48

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

CLAMP,BRAKE HOSE

92037-1629

$9.05

92170

CLAMP,BRAKE HOSE,OUTSIDE

92170-1231

$7.34

92170A

CLAMP,BRAKE HOSE,INSIDE

92170-1232

$7.34

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33
