Description

Price

11043

BRACKET,REAR FLAP

11043-1734

$17.56

11043A

BRACKET

11043-1827

$33.75

14024

COVER,LICENSE PLATE LAMP

14025-1933

$26.22

14024A

COVER,HARNESS

14025-1982

$20.79

35004

FENDER-FRONT,P.WHITE

35004-1153-6F

Unavailable

35023

FENDER-REAR,RR,P.WHITE

35023-1114-6F

Unavailable

92001

BOLT,6X20

92001-1773

$3.96

92002

BOLT,6X16

92002-1187

Unavailable

92002A

BOLT,6X16

92002-1188

$4.10

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92027

COLLAR

92027-122

$8.60

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$6.57

92071

GROMMET

92071-1027

Unavailable

92075

DAMPER

92075-1028

$4.69

130

BOLT-FLANGED

130D0608

$0.63

130A

BOLT-FLANGED

130D0612

$0.67

220

SCREW-PAN-CROS,5X45

220C0545

$2.06

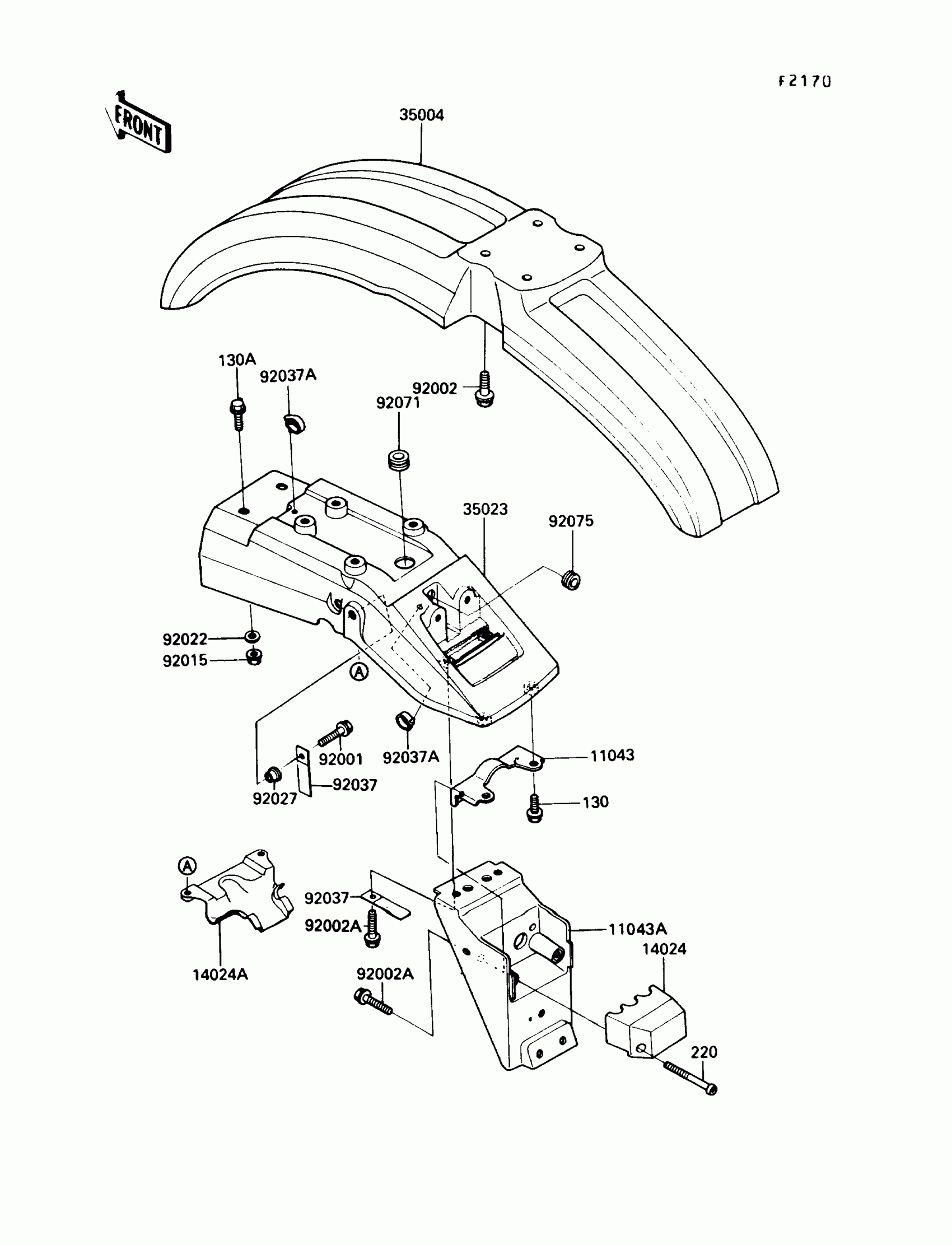

Kawasaki KLR250 Fender Diagram

BRACKET,REAR FLAP

BRACKET

COVER,LICENSE PLATE LAMP

COVER,HARNESS

FENDER-FRONT,P.WHITE

FENDER-REAR,RR,P.WHITE

BOLT,6X20

BOLT,6X16

BOLT,6X16

NUT,FLANGED,6MM

WASHER,6.5X20X1.6

COLLAR

CLAMP,WIRING HARNESS,L=60

CLAMP,SPEED,L=58

GROMMET

DAMPER

BOLT-FLANGED

BOLT-FLANGED

SCREW-PAN-CROS,5X45
