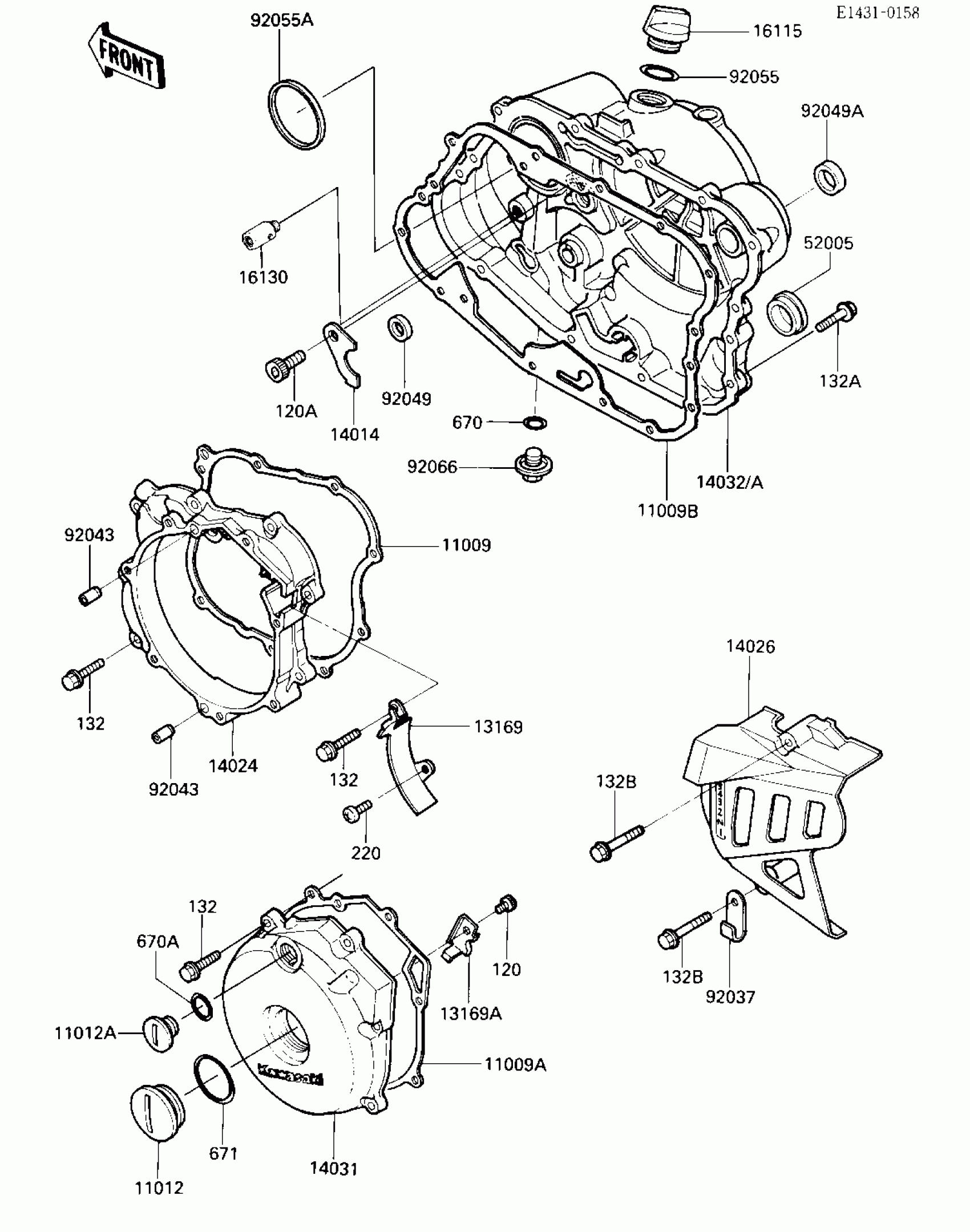

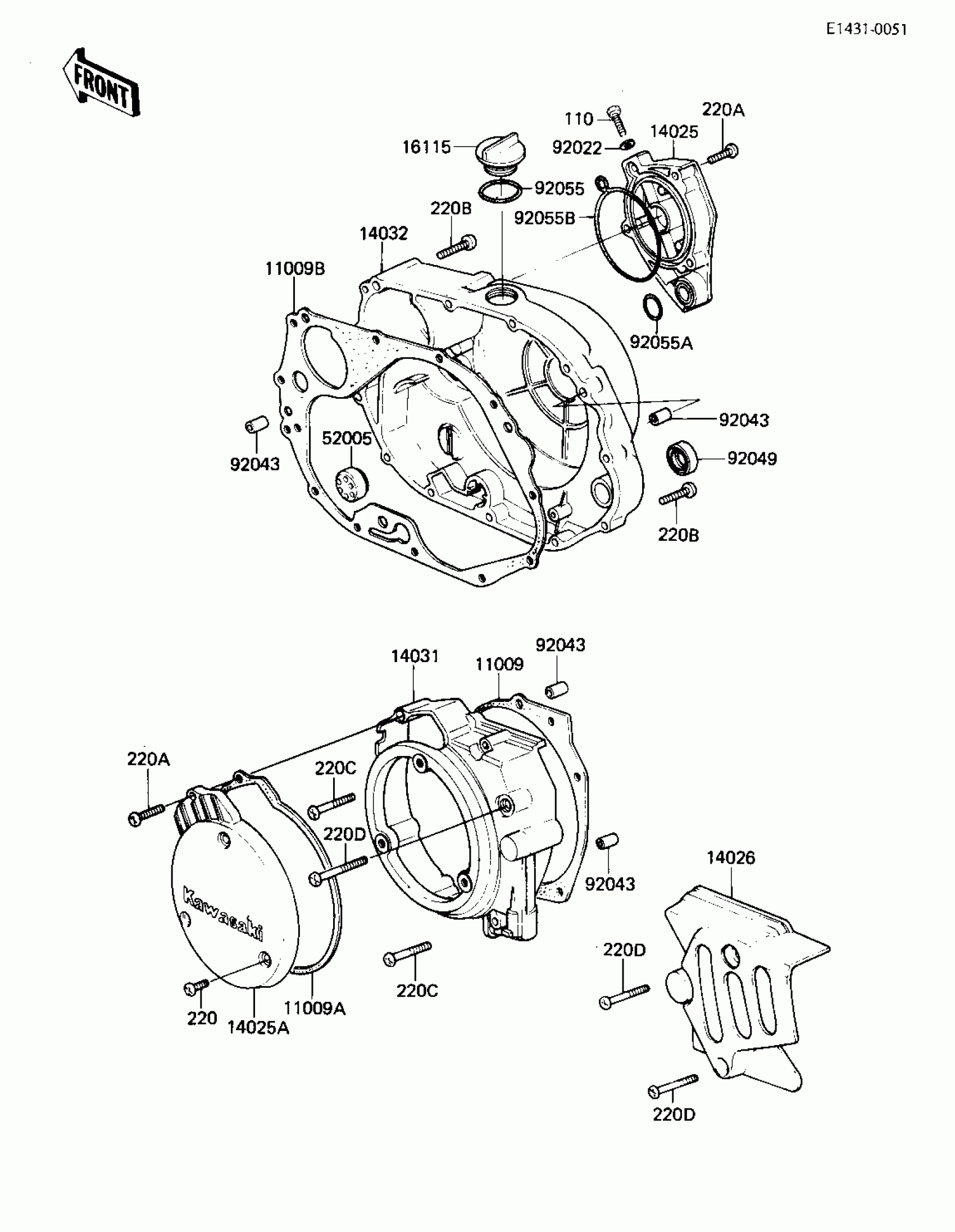

Kawasaki KLR250 ENGINE COVERS Diagram
#
Description
Price
11009
GASKET,GENERATOR CASE COVER
11060-1128
$26.56
11009A
GASKET,GENERATOR COVER
11060-1129
$17.75
11009B
GASKET,CLUTCH COVER
11060-1127
$38.17
11012
CAP
11012-1362
$8.79
11012A
CAP,TOP MARK
11012-1363
$6.51
13169
PLATE
13169-1879
$18.95
13169A
PLATE,GENERATOR LEAD
13169-1880
$9.58
14014
PLATE-POSITION
14014-1062
$8.10
14024
COVER,GENERATOR CASE
14025-1911
$222.45
14026
COVER-CHAIN
14026-1112
$56.68
14031
COVER-GENERATOR
14031-1238
$204.37
14032
COVER-CLUTCH
14032-1171
Unavailable
14032A
COVER-CLUTCH
14032-1277
$311.65
16115
CAP-OIL FILLER
16115-1009
$14.30
16130
VALVE-ASSY-RELIEF
16130-1001
Unavailable
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92037
CLAMP,WIRING HARNESS,L=60
92037-1069
Unavailable
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92049
SEAL-OIL
92049-1191
$24.41
92049A
SEAL-OIL
92050-078
$8.58
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,62.6X66X3.1
92055-1221
$8.86
92066
PLUG,DRAIN
92066-1156
$9.20
120
BOLT-SOCKET
120P0608
$2.89
120A
BOLT-SOCKET,6X10
120P0610
$1.60
132
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
132A
BOLT-FLANGED-SMALL,6X30
132J0630
$3.84
132B
BOLT-FLANGED-SMALL
132J0645
$4.44
220
SCREW-PAN-CROS,6X8
220B0608
$0.59
670
O RING,11MM
670B2011
$1.28
670A
O RING,18MM
670B2018
$1.42
671
O RING,40MM
671B2540
$6.22
