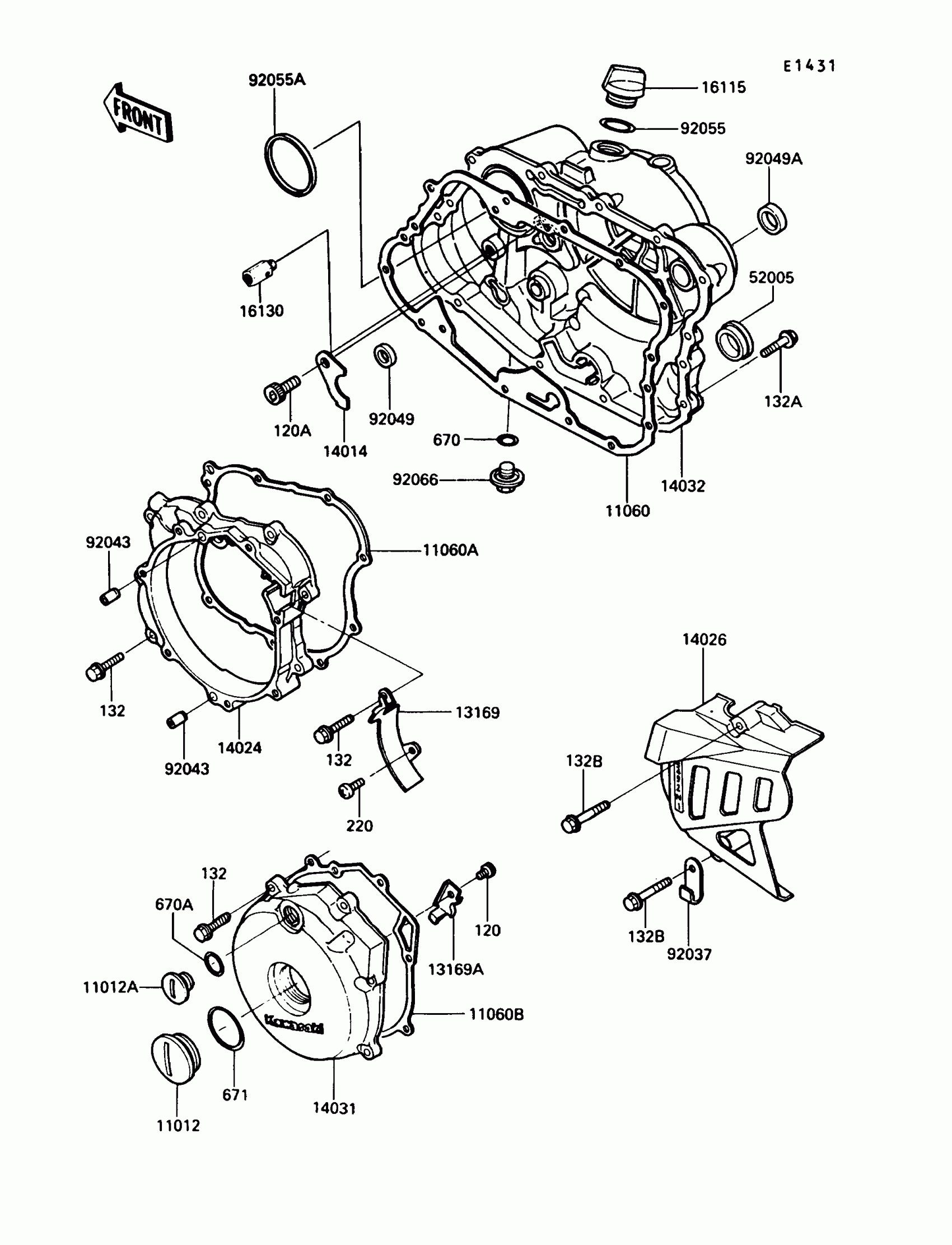

Kawasaki KLR250 Engine Cover Diagram

#

Description
Price

11012

CAP

11012-1362

$8.79

11012A

CAP,TOP MARK

11012-1363

$6.51

11060

GASKET,CLUTCH COVER

11060-1127

$38.17

11060A

GASKET,GENERATOR CASE COVER

11060-1128

$26.56

11060B

GASKET,GENERATOR COVER

11060-1129

$17.75

13169

PLATE

13169-1879

$18.95

13169A

PLATE,GENERATOR LEAD

13169-1880

$9.58

14014

PLATE-POSITION

14014-1062

$8.10

14024

COVER,GENERATOR CASE

14025-1911

$222.45

14026

COVER-CHAIN

14026-1112

$56.68

14031

COVER-GENERATOR

14031-1238

$204.37

14032

COVER-CLUTCH

14032-1277

$311.65

16115

CAP-OIL FILLER

16115-1009

$14.30

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92043

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL

92049-1191

$24.41

92049A

SEAL-OIL

92050-078

$8.58

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,62.6X66X3.1

92055-1221

$8.86

92066

PLUG,DRAIN

92066-1156

$9.20

120

BOLT-SOCKET

120P0608

$2.89

120A

BOLT-SOCKET,6X10

120P0610

$1.60

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

132A

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

132B

BOLT-FLANGED-SMALL

132J0645

$4.44

220

SCREW-PAN-CROS,6X8

220B0608

$0.59

670

O RING,11MM

670B2011

$1.28

670A

O RING,18MM

670B2018

$1.42

671

O RING,40MM

671B2540

$6.22
