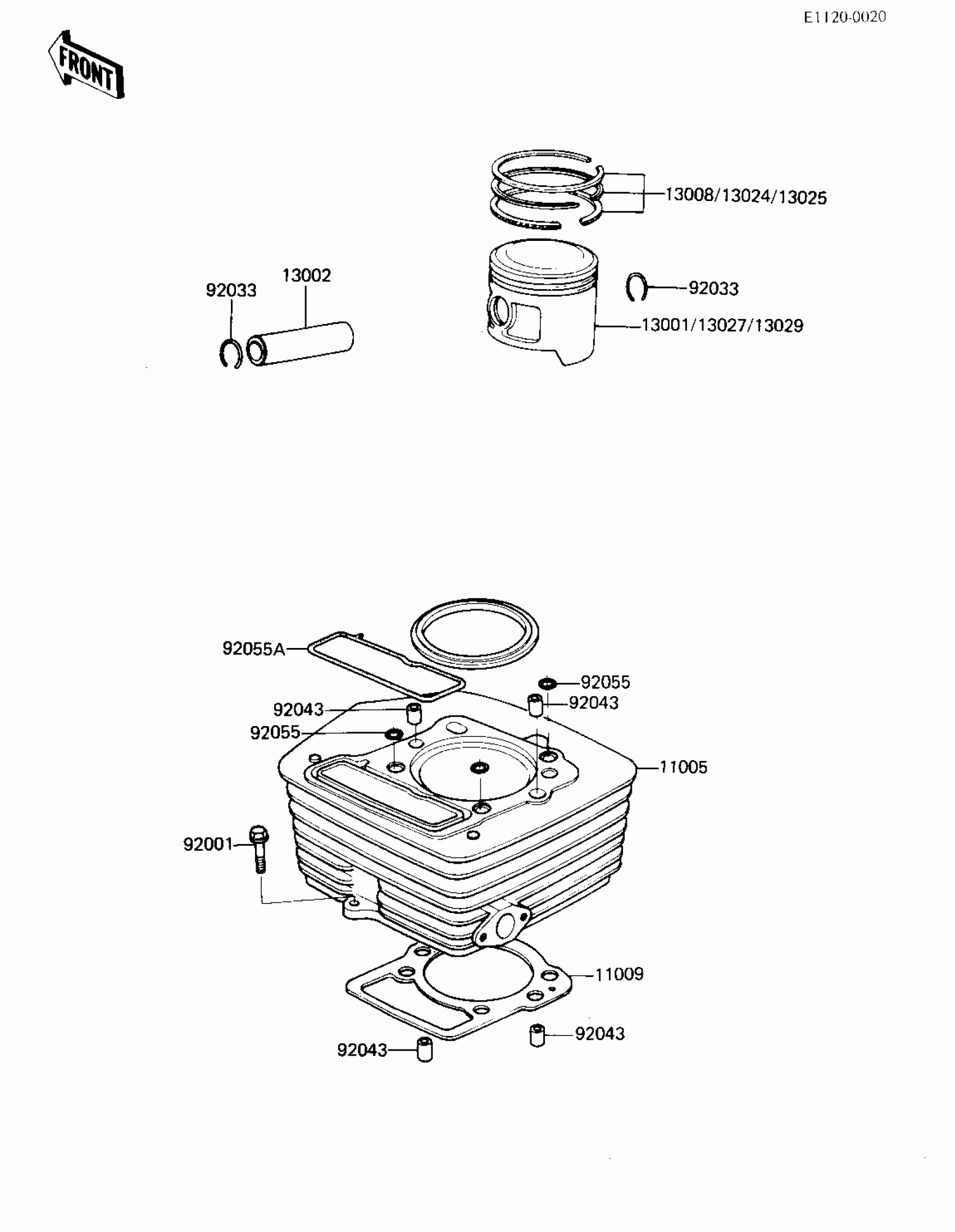

Kawasaki KLR250 CYLINDER/PISTON Diagram

Description

Price

11005

CYLINDER ASSY,F.BLACK

11006-1002

Unavailable

11009

GASKET,CYLINDER BASE

11009-043

Unavailable

13001

PISTON,S.T.D

13001-1037

Unavailable

13002

PIN-PISTON

13002-1013

$6.66

13008

RING SET,STD

13008-5012

$151.39

13024

RING SET,0.040"O/S

13024-5008

$116.76

13025

RING SET,0.020"O/S

13025-5007

$144.46

13027

PISTON,0.040 O/S

13027-1005

Unavailable

13029

PISTON,0.020 O/S

13029-1003

$190.48

92001

BOLT,FLANGED,6X28

92003-202

Unavailable

92033

CIRCLIP,PISTON PIN

92036-021

$0.49

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92055

RING-O,10MM

92055-1149

$6.57

92055A

"0" RING

92055-105

$52.25
