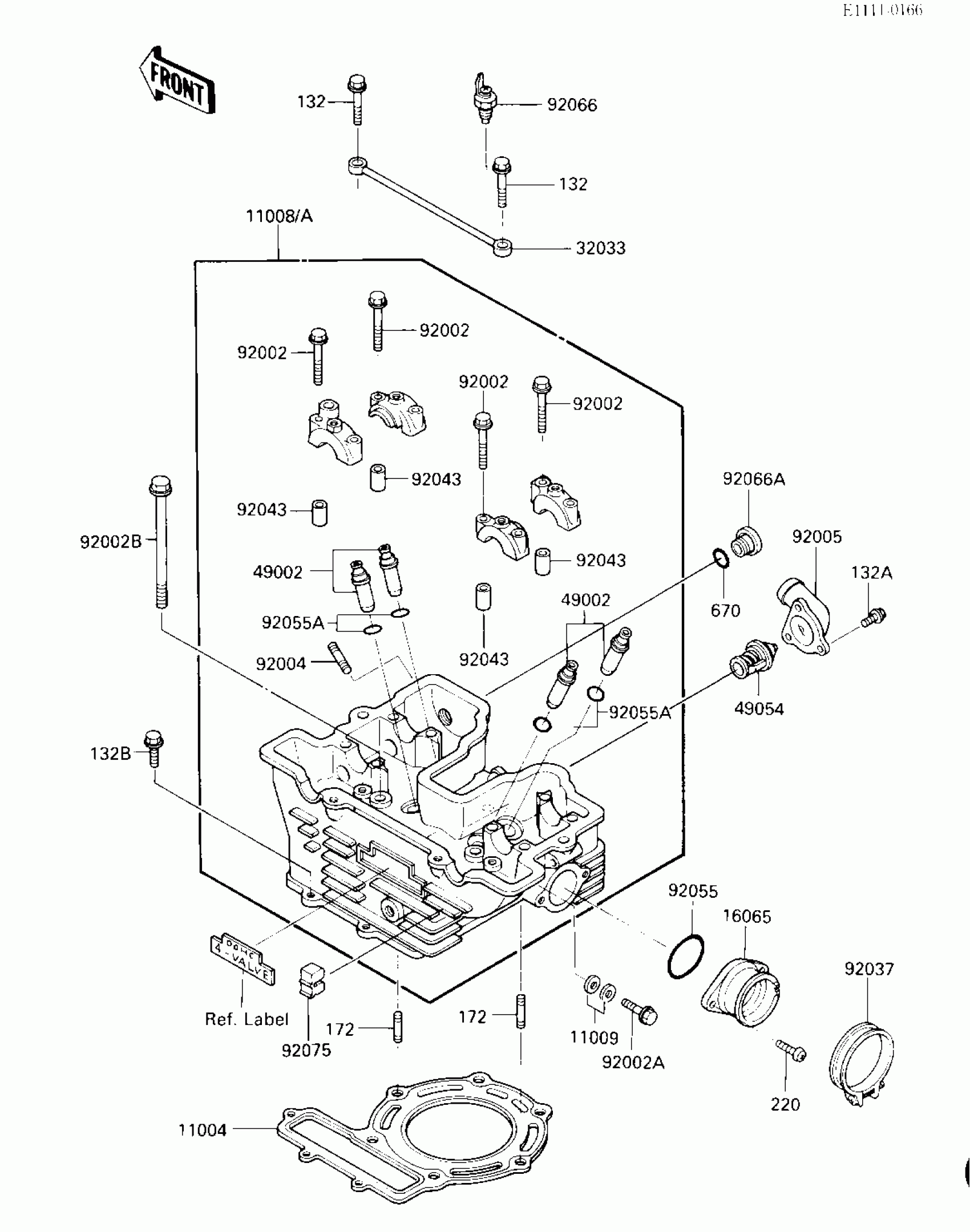

Kawasaki KLR250 CYLINDER HEAD (-E/NO. 011776) Diagram
#
Description
Price
11004
GASKET-HEAD
11004-1121
$41.33
11008
HEAD-COMP-CYLINDER
11008-1124
Unavailable
11008A
HEAD-COMP-CYLINDER
11008-1181
Unavailable
11009
GASKET,10X14.5X1.5
11009-1105
$6.51
16065
HOLDER-CARBURETOR
16065-1143
$50.64
32033
PIPE,OIL
32033-1402
$72.14
49002
GUIDE-VALVE
49002-1052
$38.19
49054
THERMOSTAT
49054-1003
$61.04
92002
BOLT,6X46
92001-1872
$4.31
92002A
BOLT,BANJO,10X25
92002-1170
$9.51
92002B
BOLT,L=162
92002-1328
$22.14
92004
STUD,8X25
92004-1008
$3.70
92005
FITTING
92005-1121
$36.12
92037
CLAMP,ID=53,BLACK
92037-1304
$10.28
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92055
RING-O
92055-1255
$18.57
92055A
RING-O,11.7MM
92055-1265
$10.62
92066
PLUG,SENSOR,WATER
92066-1118
$69.04
92066A
PLUG,ROCKER SHAFT
92066-1188
$16.93
92075
DAMPER
92075-1710
$9.05
132
BOLT-FLANGED-SMALL
132G0625
Unavailable
132A
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
132B
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
172
BOLT-STUD,8X22
172G0822
$2.12
220
SCREW-PAN-CROS,6X16,BLACK
220C0616
$4.15
670
O RING,20MM
670B2020
$1.22
