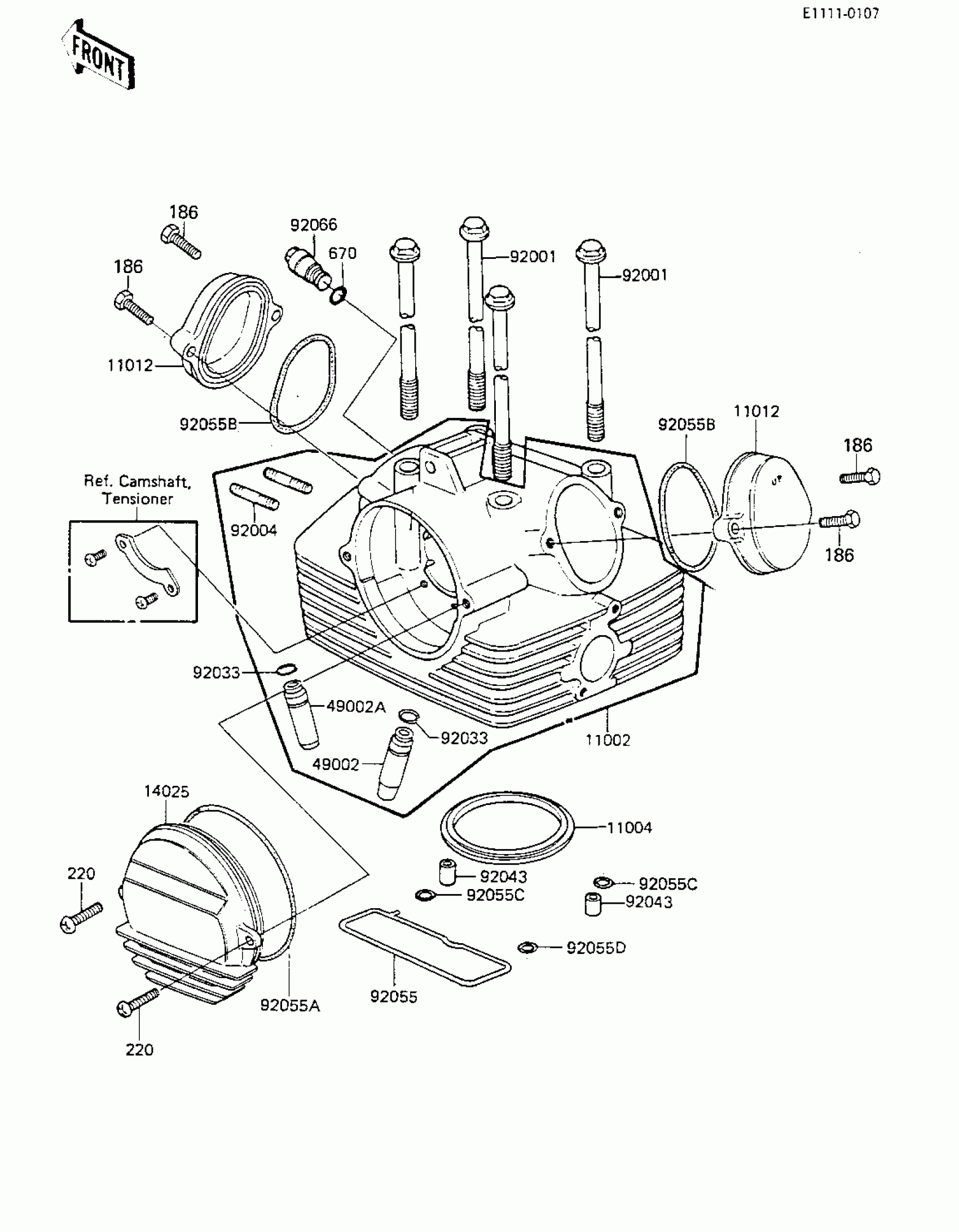

Kawasaki KLR250 CYLINDER HEAD/COVERS Diagram

Description

Price

11002

HEAD-ASSY-CYLINDER

11002-5028

Unavailable

11004

GASKET,CYLINDER HEAD

11004-1002

Unavailable

11012

CAP,ROCKER,F.BLACK

11012-1270

Unavailable

14025

COVER,CAMSHAFT,F.BLAC

14025-1549

Unavailable

49002

GUIDE-VALVE,INTAKE

12013-009

$27.29

49002A

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,8X233

92003-220

$17.92

92004

STUD,8X30

92004-1069

$7.51

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92055

"0" RING

92055-105

$52.25

92055A

"O" RING,99M/M

92055-107

$10.37

92055B

RING-O,53.5X2.6

92055-112

$6.63

92055C

RING-O,10MM

92055-1149

$6.57

92055D

RING-O,9.8X2.4

92055-1150

$8.10

92066

PLUG,TACHOMETER GEAR

92066-060

Unavailable

186

BOLT-UPSET-WP

186G0625

$0.83

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

670

O RING,10MM

670D1510

$4.69
