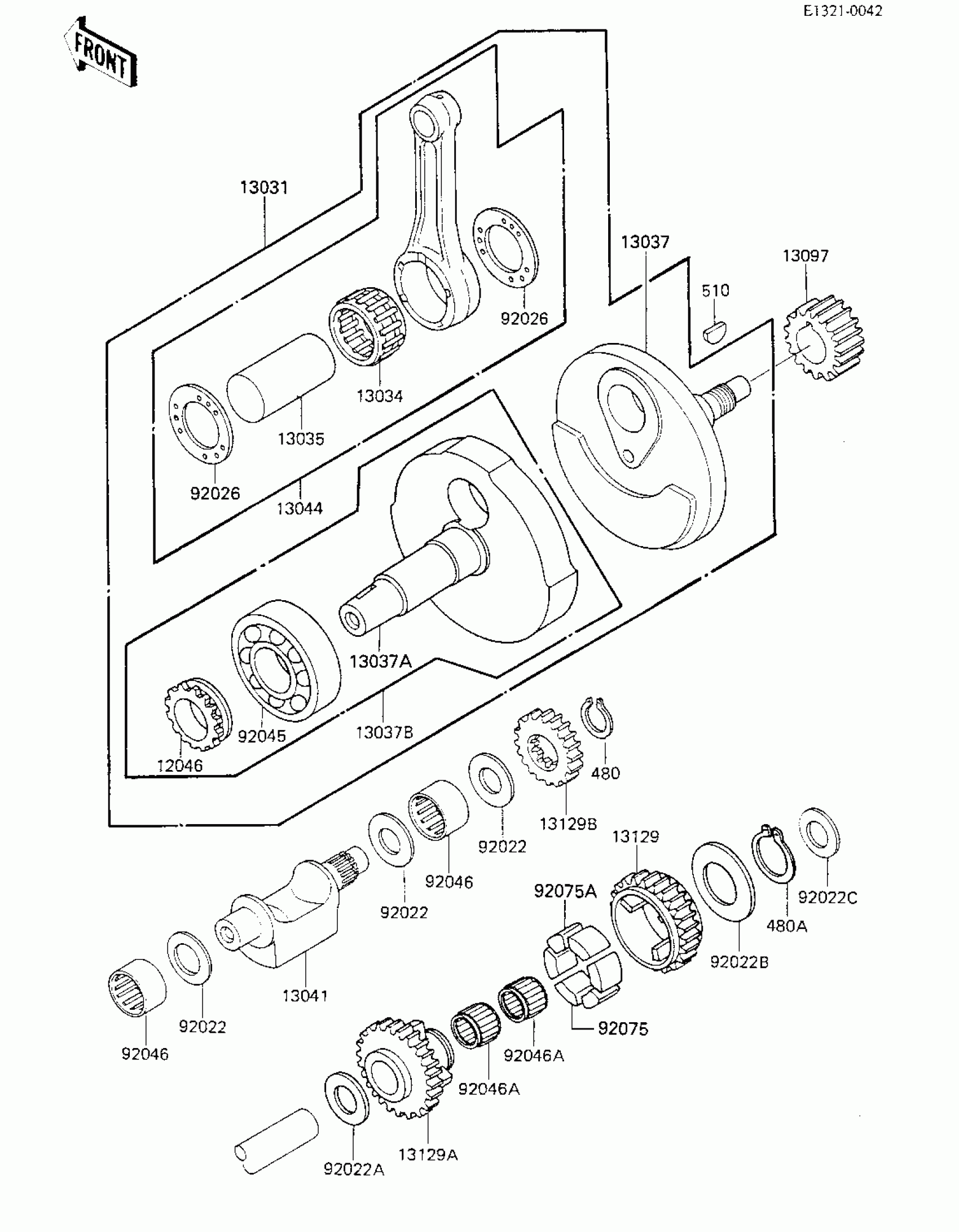

Kawasaki KLR250 CRANKSHAFT/BALANCER Diagram
#
Description
Price
12046
SPROCKET,16T
12046-1038
$52.69
13031
CRANKSHAFT-COMP
13031-1081
Unavailable
13034
BEARING-BIG END
13034-1013
Unavailable
13035
PIN-CRANK
13035-1009
Unavailable
13037
CRANKSHAFT,RH
13037-1151
Unavailable
13037A
CRANKSHAFT,LH
13037-1152
Unavailable
13037B
CRANKSHAFT,LH
13037-5008
Unavailable
13041
BALANCER
13041-1003
Unavailable
13044
SET-CONNECTING ROD
13044-5026
Unavailable
13097
GEAR-PRIMARY SPUR,21T
13097-1067
Unavailable
13129
GEAR-TRANSMISSION SPU
13129-1364
Unavailable
13129A
GEAR-TRANSMISSION SPU
13129-1365
Unavailable
13129B
GEAR-TRANSMISSION SPU
13129-1366
Unavailable
92022
WASHER,20X36X1
92022-1366
Unavailable
92022A
WASHER,16X34X1
92022-1367
Unavailable
92022B
WASHER,25.3X44X1
92022-1390
$4.87
92022C
WASHER,16.3X25X1
92022-1391
Unavailable
92026
SPACER
92026-1070
$11.38
92045
BEARING-BALL,#6306
92045-037
$42.66
92046
BEARING-NEEDLE,NK20/1
92046-1183
$41.25
92046A
BEARING-NEEDLE,K16X20
92046-1053
Unavailable
92075
DAMPER,IDLER GEAR
92075-1595
Unavailable
92075A
DAMPER,IDLER GEAR
92075-1596
Unavailable
480
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
480A
CIRCLIP-TYPE-C,25MM
480J2500
$2.03
510
WOODRUFF KEY
510A5100
$2.70
