Description

Price

11034

BRACKET,THROTTLE CABL

11034-1747

Unavailable

11034A

BRACKET,STOP SCREW

11034-1748

Unavailable

11034B

BRACKET,FITTING

11034-1749

Unavailable

13168

LEVER,THROTTLE

13168-1063

Unavailable

16016

PLUNGER ASSY,STARTER

16016-1016

$50.63

16021

SCREW,THROTTLE STOP

16021-1026

$13.20

16065

HOLDER,CARBURETOR

16065-1018

Unavailable

92005

FITTING,CARBURETOR

92005-1023

Unavailable

92009

SCREW-CLAMP

16033-014

Unavailable

92009A

SCREW

16033-026

Unavailable

92022

WASHER,PLAIN

92022-1148

$4.04

92022A

WASHER,LOCK

92022-1191

$5.06

92037

CLAMP,TUBE

92037-072

$7.22

92037A

CLAMP

92037-1006

$17.72

92037B

CLAMP,BREATHER TUBE

92037-174

$2.00

92059

TUBE,5.3X10.5X140

92059-1019

Unavailable

92059A

HOSE,AIR VENT,5X8X340

92059-1128

Unavailable

92059B

HOSE,OVERFLOW,5X270L

92059-1475

Unavailable

92081

SPRING,THROTTLE ADJST

16022-010

Unavailable

92081A

SPRING,THROTTLE RETRN

92081-1231

$10.92

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

315

NUT,8 M/M

315G0800

$3.22

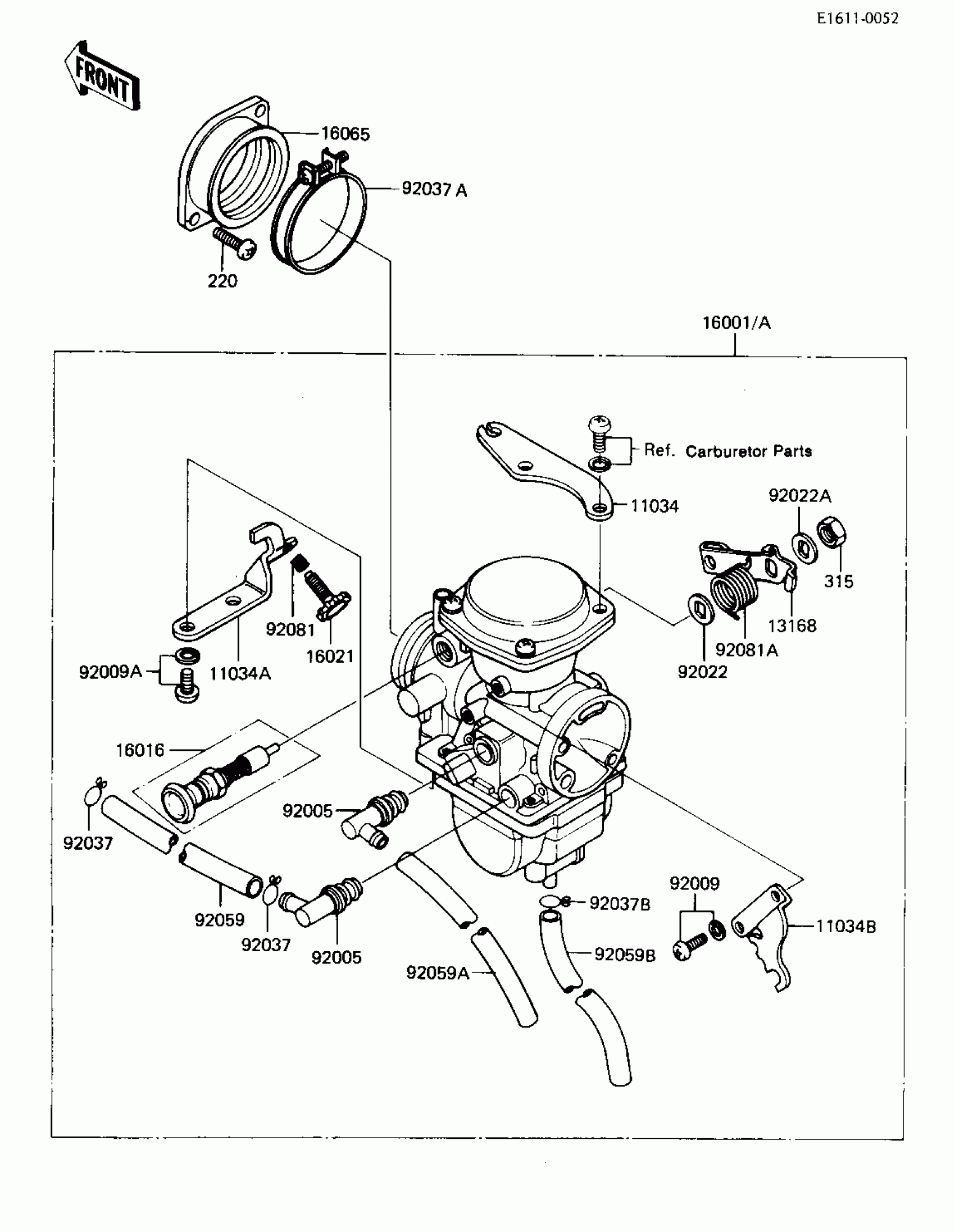

Kawasaki KLR250 CARBURETOR ASSY Diagram

BRACKET,THROTTLE CABL

BRACKET,STOP SCREW

BRACKET,FITTING

LEVER,THROTTLE

PLUNGER ASSY,STARTER

SCREW,THROTTLE STOP

HOLDER,CARBURETOR

FITTING,CARBURETOR

SCREW-CLAMP

SCREW

WASHER,PLAIN

WASHER,LOCK

CLAMP,TUBE

CLAMP

CLAMP,BREATHER TUBE

TUBE,5.3X10.5X140

HOSE,AIR VENT,5X8X340

HOSE,OVERFLOW,5X270L

SPRING,THROTTLE ADJST

SPRING,THROTTLE RETRN

SCREW-PAN-CROS,6X14

NUT,8 M/M
