Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

11043

BRACKET,CANISTER

11043-1180

$52.38

13091

HOLDER,CANISTER

13091-1176

$71.75

14024

COVER,CANISTER

14024-1063

$36.12

14073

DUCT,CANISTER

14073-1219

$20.80

16164

CANISTER

16164-1001

$145.42

16165

SEPARATOR

16165-1001

$90.01

92015

NUT,6MM

92015-1365

$5.00

92037

CLAMP,TUBE

92037-072

$7.22

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP,CANISTER

92037-1512

$6.57

92059

TUBE,5X9X860,BLUE

92059-1531

$22.69

92059A

TUBE

92059-1488

$19.09

92059B

TUBE,5X9X430,RED

92059-1534

$32.14

92059C

TUBE,7X12X660,GREEN

92059-1535

$25.35

92059D

TUBE,5X9X860,BLUE

92059-1531

$22.69

92059E

TUBE,14X20X470

92059-1571

$36.67

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=186

92072-056

$5.00

92072B

BAND,L=50

92072-066

$16.08

120

BOLT-SOCKET,6X16

120S0616

$1.23

130

BOLT-FLANGED

130C0608

$3.42

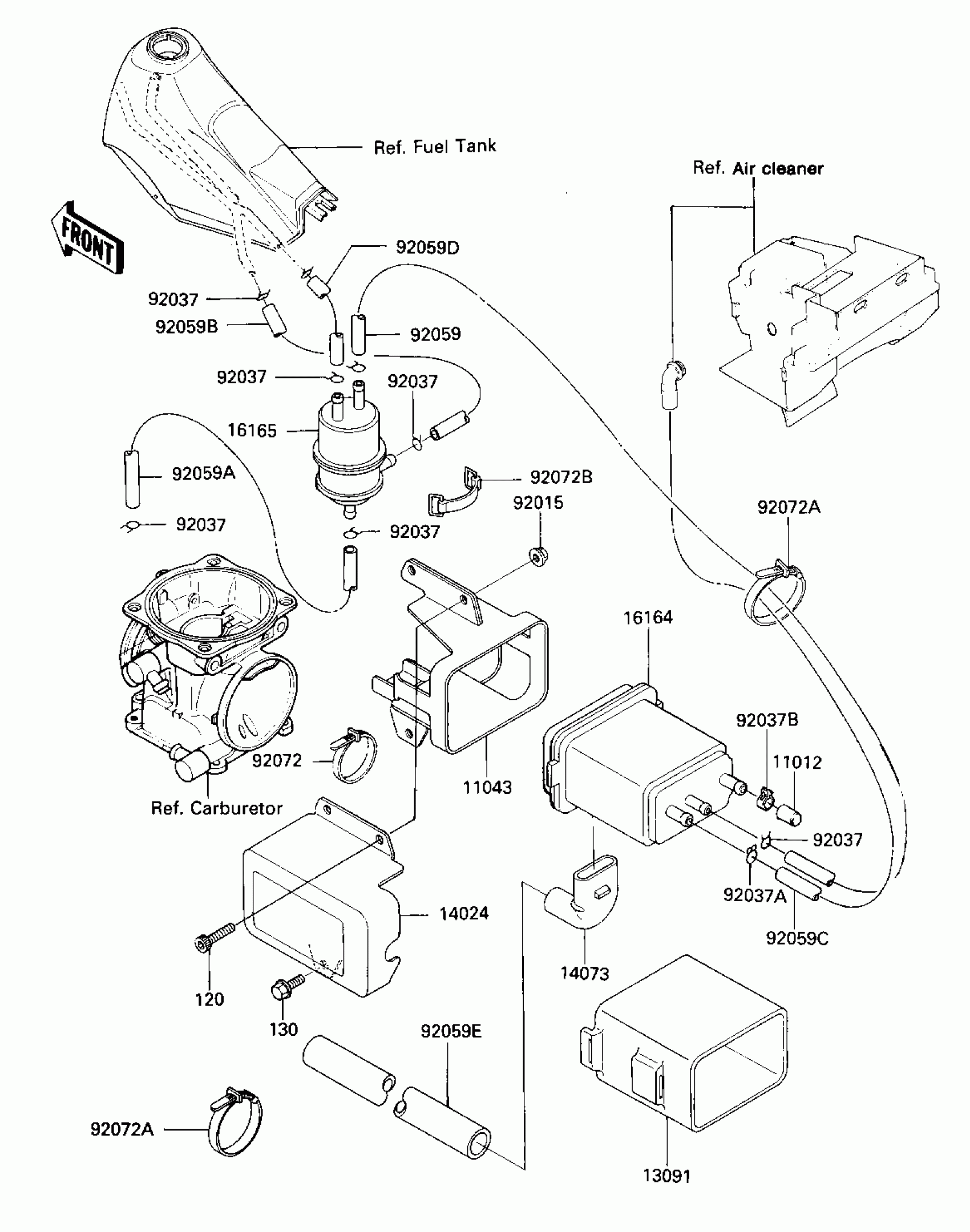

Kawasaki KLR250 CANISTER Diagram

CAP,CANISTER

BRACKET,CANISTER

HOLDER,CANISTER

COVER,CANISTER

DUCT,CANISTER

CANISTER

SEPARATOR

NUT,6MM

CLAMP,TUBE

CLAMP-HOSE

CLAMP,CANISTER

TUBE,5X9X860,BLUE

TUBE

TUBE,5X9X430,RED

TUBE,7X12X660,GREEN

TUBE,5X9X860,BLUE

TUBE,14X20X470

BAND,L=149

BAND,L=186

BAND,L=50

BOLT-SOCKET,6X16

BOLT-FLANGED
