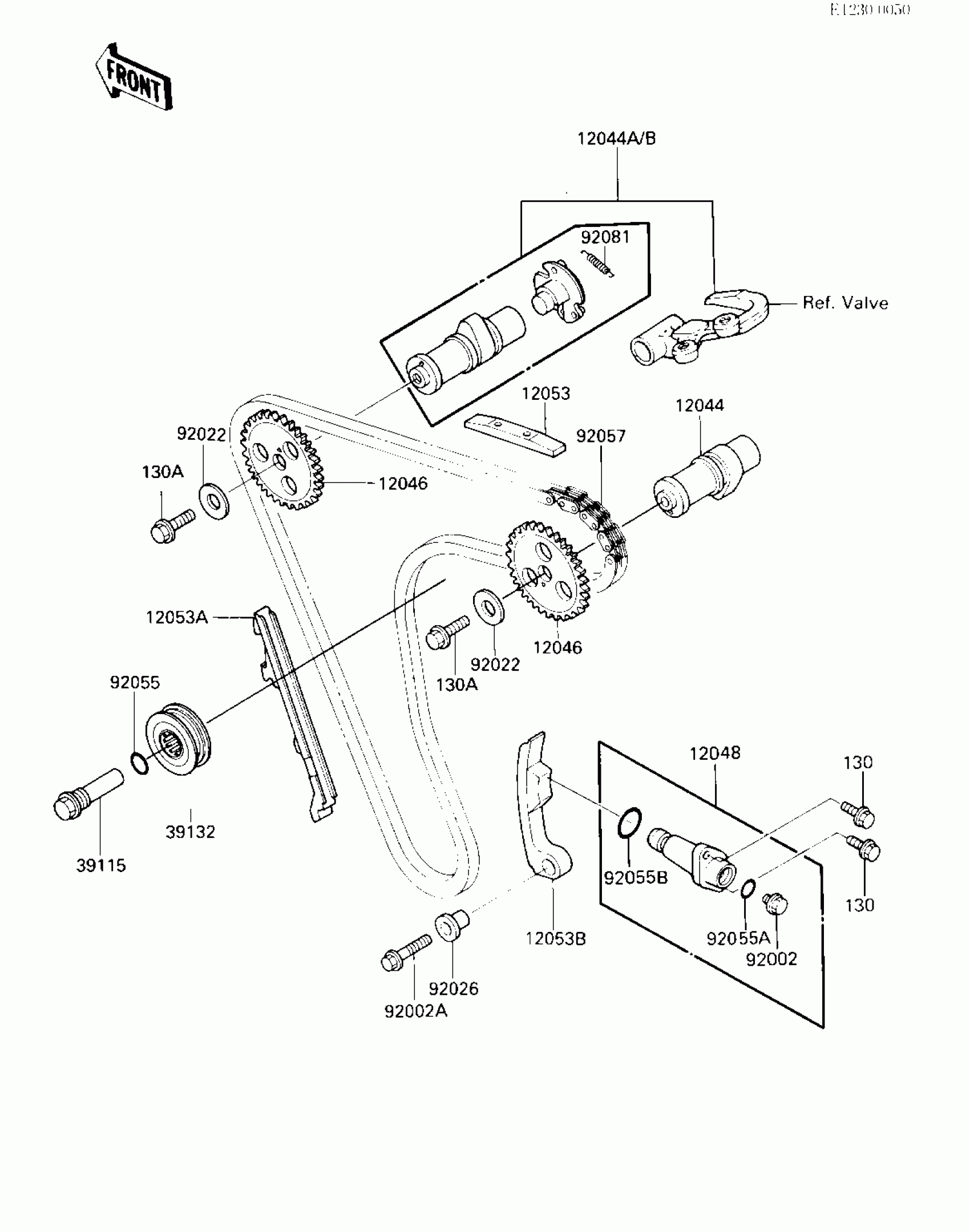

Kawasaki KLR250 CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT-VALVE,INTAKE

12044-1351

$306.56

12044A

CAMSHAFT-VALVE

12044-5005

Unavailable

12044B

CAMSHAFT-VALVE,EXHAUST

12044-5006

Unavailable

12046

SPROCKET,42T

12046-1063

$54.65

12048

TENSIONER-ASSY,CAM CHAIN

12048-1066

$134.13

12053

GUIDE-CHAIN,UPP

12053-1107

$19.45

12053A

GUIDE-CHAIN,FR

12053-1125

$56.16

12053B

GUIDE-CHAIN,RR

12053-1126

$91.10

39115

SHAFT-IDLER

39115-1051

$34.73

39132

SPROCKET-ASSY-IDLER

39132-1052

$79.26

92002

BOLT,TENSIONER

92002-1302

$7.69

92002A

BOLT

92002-1478

$7.24

92022

WASHER,10X22X3

92022-1365

$5.52

92026

SPACER,L=28.3

92026-1231

$19.27

92055

RING-O,ID=13.8

92055-1141

$3.92

92055A

O RING,10MM

670D2010

$1.94

92055B

O RING,21MM

670D2021

$6.85

92057

CHAIN,CAM,79RH2010-158L

92057-1170

$115.07

92081

SPRING,DECOMPRESSOR

92081-1626

$4.96

130

BOLT-FLANGED,10X25

130G1025

$3.17

130A

BOLT-FLANGED,6X25

130J0625

$2.62
