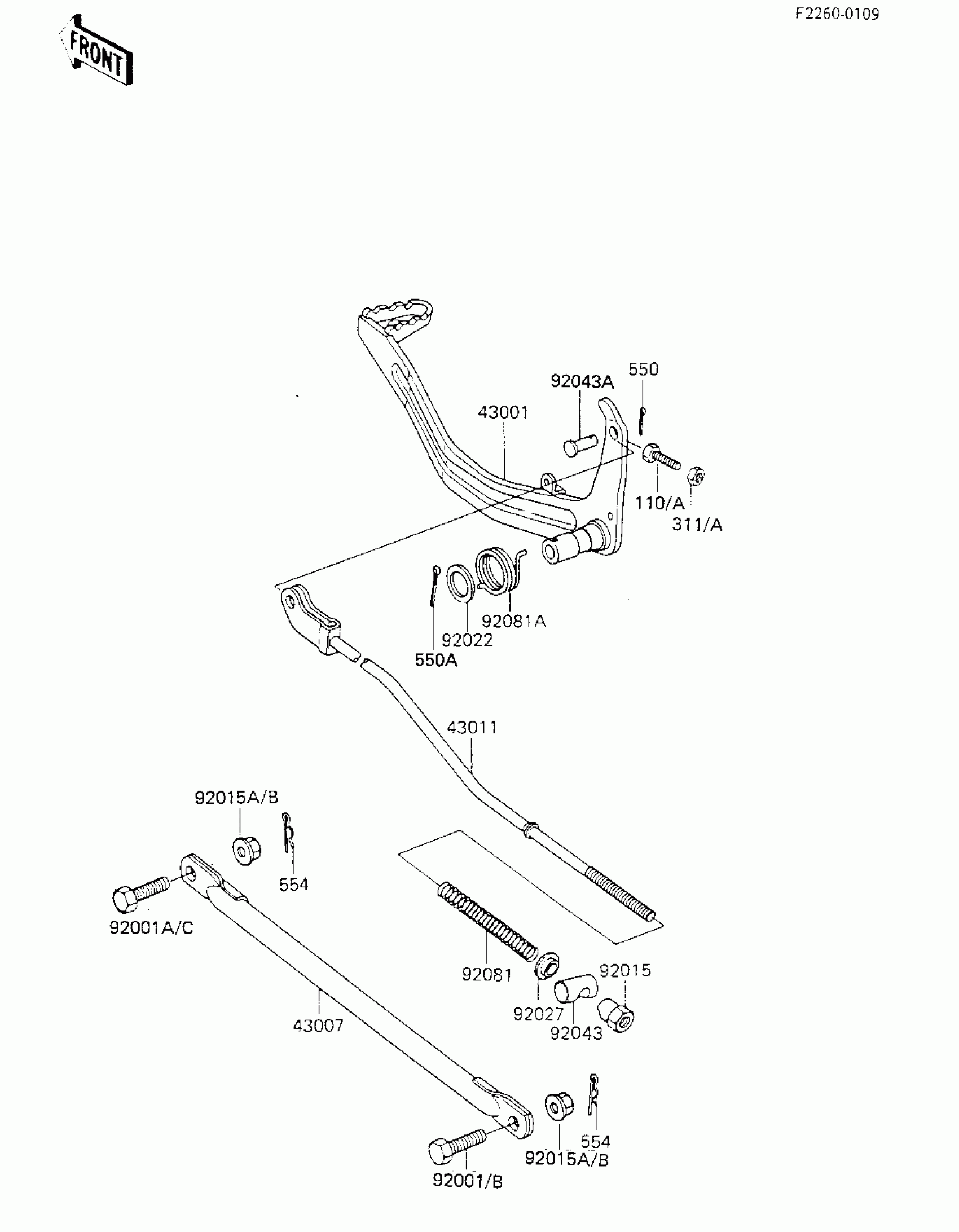

Kawasaki KLR250 BRAKE PEDAL/TORQUE LINK Diagram

Description

Price

43001

PEDAL,BRAKE

43001-1031

$90.80

43007

TORQUE LINK,REAR BRAK

43007-048

$26.40

43011

ROD,BRAKE

43011-1013

$21.98

92001

BOLT,10X32

92001-1671

$6.22

92001A

BOLT,10X25

92001-1672

Unavailable

92015

NUT,BRAKE ROD

92015-042

$6.22

92015B

NUT,FLANGED,10MM

92015-1180

$4.31

92022

WASHER,16.5X24X1.6

92022-1126

Unavailable

92027

COLLAR

92027-122

$8.60

92043

PIN,BRAKE ROD

92043-065

$5.57

92043A

PIN,6X11

92043-092

$4.69

92081

SPRING,BRAKE ROD

43012-001

$4.65

92081A

SPRING,BRAKE PEDAL

92081-1131

Unavailable

110A

* N.L.A.* (Canada)

110C0620

Unavailable

311A

NUT-HEX,6MM,BLACK

311C0600

$0.43

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN,COTTER,2.5X40

550D2540

$1.88

554

PIN-SNAP,8MM

554A0800

$1.26

Kawasaki KLR250 BRAKE PEDAL/TORQUE LINK Diagram

PEDAL,BRAKE

TORQUE LINK,REAR BRAK

ROD,BRAKE

BOLT,10X32

BOLT,10X25

NUT,BRAKE ROD

NUT,FLANGED,10MM

WASHER,16.5X24X1.6

COLLAR

PIN,BRAKE ROD

PIN,6X11

SPRING,BRAKE ROD

SPRING,BRAKE PEDAL

*** N.L.A.*** (Canada)

NUT-HEX,6MM,BLACK

PIN COTTER 2.0X15

PIN,COTTER,2.5X40

PIN-SNAP,8MM

* N.L.A.* (Canada)
