Description

Price

11011

CASE-AIR FILTER

11011-1275

$190.50

11011A

CASE-AIR FILTER

11011-1276

$169.87

11012

CAP,ELEMENT

11012-1661

$17.75

11013

ELEMENT-AIR FILTER

11013-1117

$19.21

13169

PLATE,ELEMENT

13169-1851

$45.33

14073

DUCT,CARBURETOR

14073-1184

$34.94

14073A

DUCT,INTAKE

14073-1185

$83.35

51044

TUBE-ASSY

51044-1087

$67.41

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP

92037-1886

$8.98

92055

RING-O,AIR FILTER

92055-1254

$9.48

92059

TUBE,BREATHER

92059-1482

$18.24

92071

GROMMET,AIR FILTER

92071-1114

$24.61

92075

DAMPER,AIR FILTER

92075-1513

$5.46

92081

SPRING,COIL

92081-1177

$9.95

92093

SEAL

92093-1187

$27.74

130

BOLT-FLANGED,6X12

130G0612

$1.69

224

SCREW-PAN-WP-CROS

224C0614

$3.84

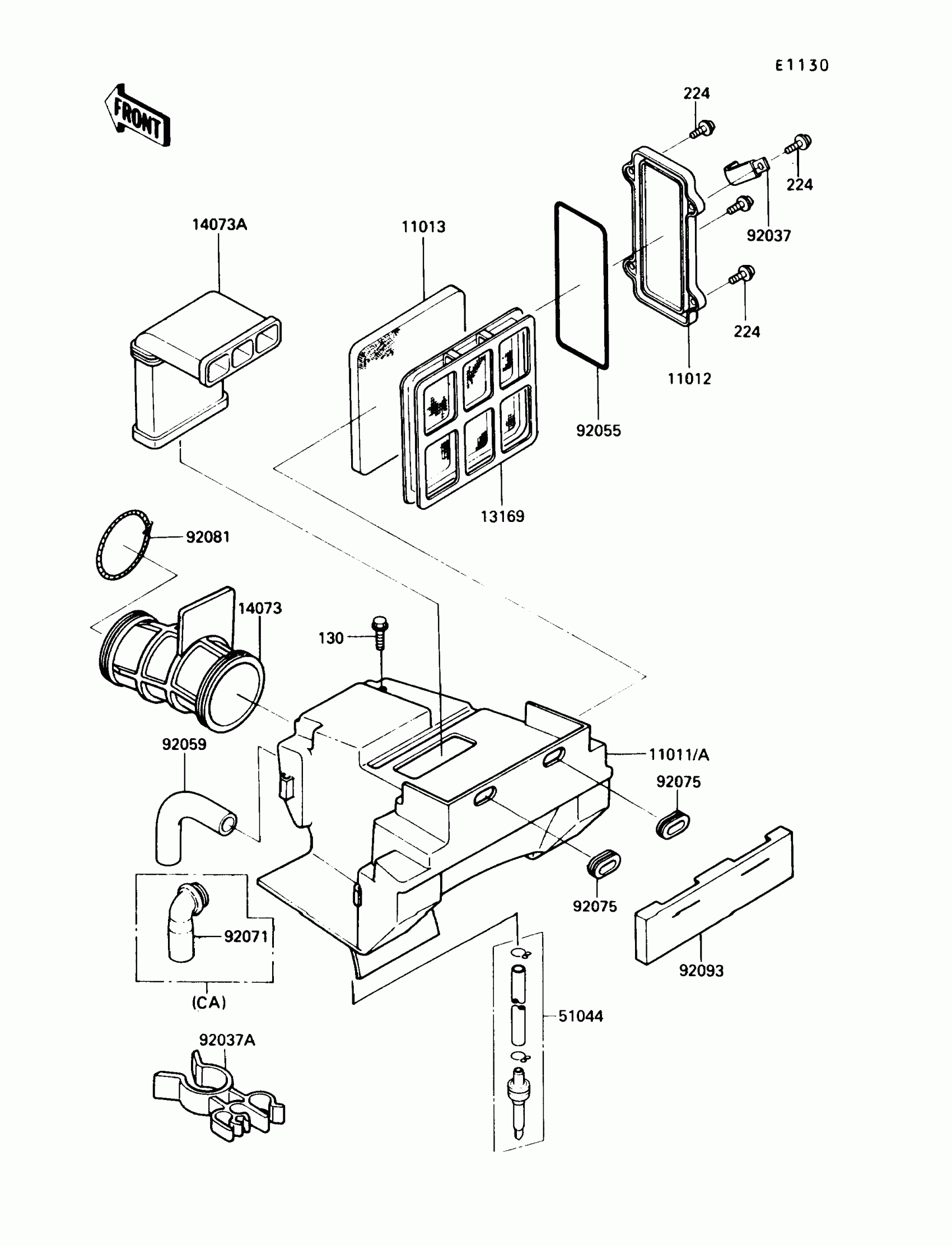

Kawasaki KLR250 Air Filter Diagram

CASE-AIR FILTER

CASE-AIR FILTER

CAP,ELEMENT

ELEMENT-AIR FILTER

PLATE,ELEMENT

DUCT,CARBURETOR

DUCT,INTAKE

TUBE-ASSY

CLAMP,WIRING HARNESS,L=60

CLAMP

RING-O,AIR FILTER

TUBE,BREATHER

GROMMET,AIR FILTER

DAMPER,AIR FILTER

SPRING,COIL

SEAL

BOLT-FLANGED,6X12

SCREW-PAN-WP-CROS
