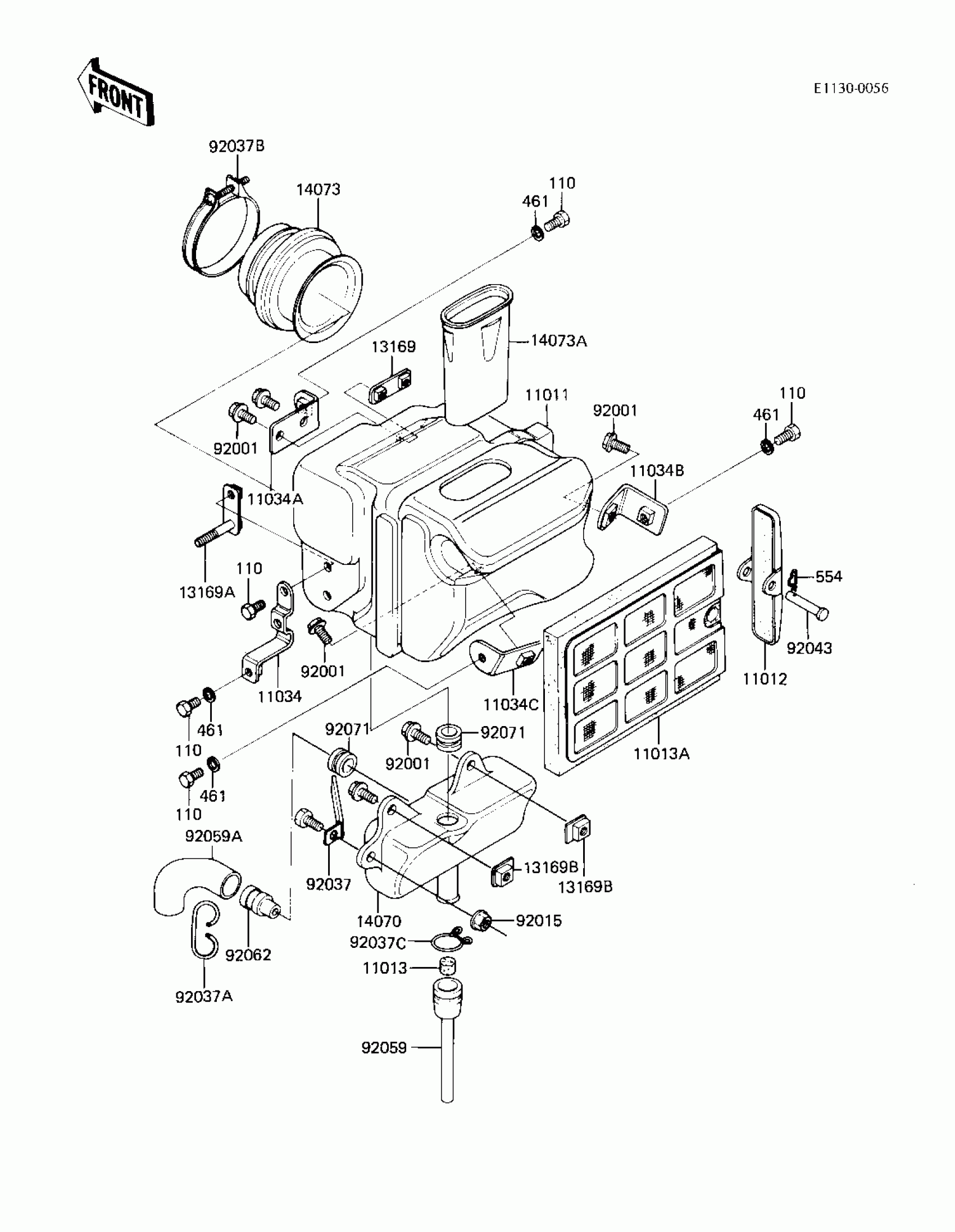

Kawasaki KLR250 AIR CLEANER (-- F/NO.044975) Diagram
#
Description
Price
11011
CASE,AIR FILTER
11011-1031
Unavailable
11012
CAP,AIR FILTER
11012-1221
Unavailable
11013
ELEMENT,AIR CLNR
11013-060
Unavailable
11013A
ELEMENT,AIR CLNR
11013-1018
Unavailable
11034
BRACKET,AIR FILTER
11034-1704
Unavailable
11034A
BRACKET,AIR FILTER
11034-1705
Unavailable
11034B
BRACKET,AIR FILTER
11034-1727
Unavailable
11034C
BRACKET,AIR FILTER
11034-1728
Unavailable
13169
PLATE,AIR FILTER
13169-1234
Unavailable
13169A
PLATE,AIR FILTER
13169-1606
Unavailable
13169B
PLATE,AIR FILTER
13169-1299
Unavailable
14070
BODY,BREATHER
14070-1005
Unavailable
14073
DUCT,AIR FILTER
14073-1025
Unavailable
14073A
DUCT,AIR FILTER CASE
14073-1041
$15.86
92001
BOLT,6X20
92001-1460
$3.92
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92037
CLAMP,WIRING HARNESS,L=60
92037-1069
Unavailable
92037A
CLAMP,MAGNETO LEAD
92037-1209
$5.27
92037B
CLAMP,AIR FILTER
92037-171
$12.95
92037C
CLAMP,TUBE
92037-213
$4.31
92043
PIN,AIR FILTER
92043-1080
$3.83
92059
TUBE,AIR CLNR DRAIN
92059-1020
$9.30
92059A
HOSE,BREATHER
92059-1158
Unavailable
92062
NOZZLE,BREATHER TUBE
92062-1010
$6.64
92071
GROMMET
92071-1010
$4.65
110
BOLT-UPSET,6X12
112G0612
$1.45
461
WASHER SPRING 6MM
461F0600
$0.69
554
PIN,SNAP
554A0600
$0.93
