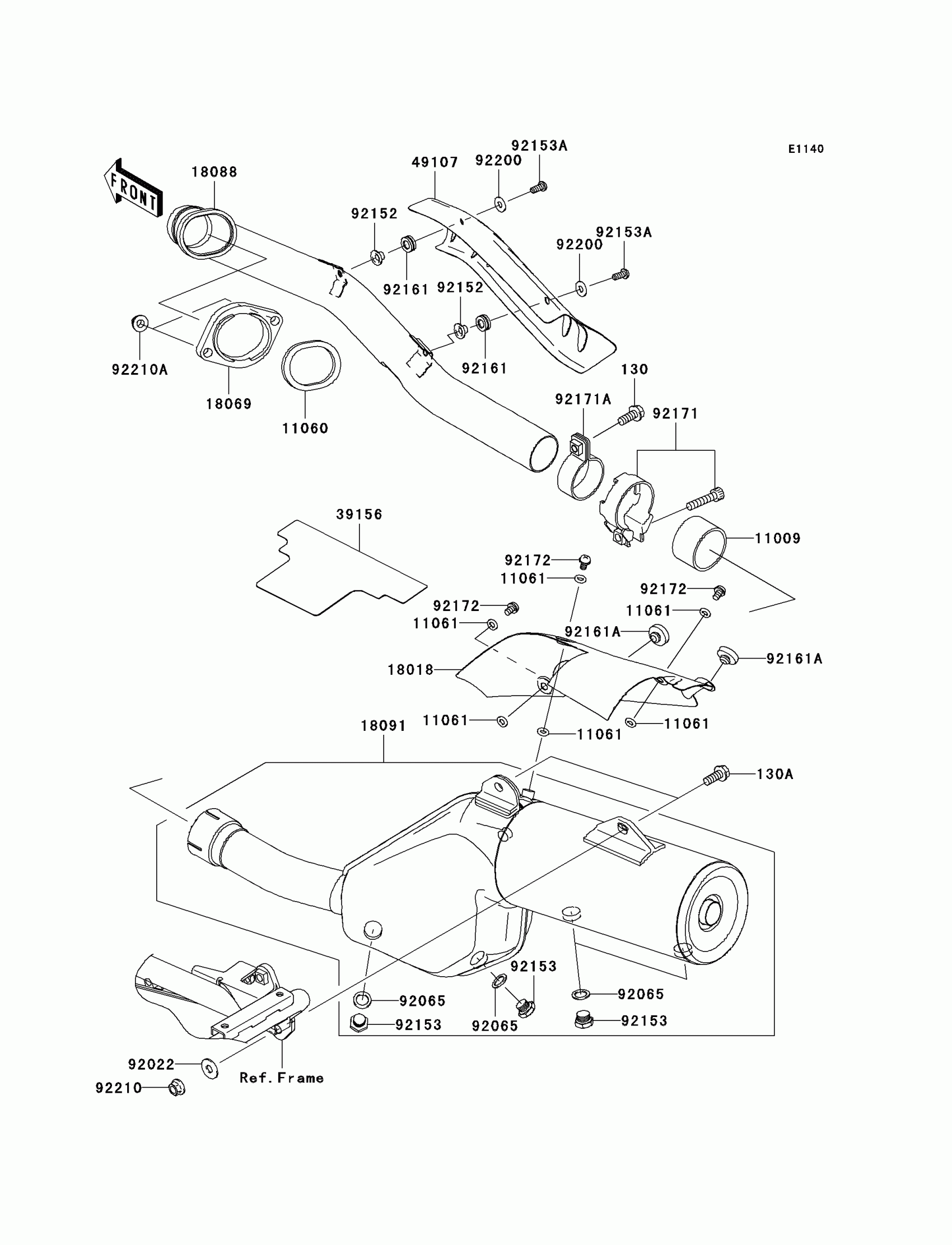

Kawasaki KLR™650 Muffler(s)(E8F/E9F) Diagram
#
Description
Price
130
BOLT-FLANGED,8X20
130BD0820
$2.80
130A
BOLT-FLANGED,FLANGED,8X20
130CC0820
$2.80
11009
GASKET,EXHAUST PIPE CONNECTING
11009-1666
$32.66
11060
GASKET,EXHAUST PIPE HOLDER
11060-1108
$9.20
11061
GASKET,6.2X11.5X1.5
11061-0372
Unavailable
18018
PLATE-HEAT GUARD
18018-0006
$107.92
18069
HOLDER-EXHAUST PIPE
18069-1063
$32.86
18088
PIPE-EXHAUST
18088-0262
Unavailable
18091
BODY-COMP-MUFFLER
18091-0510
Unavailable
39156
PAD
39156-0264
$51.86
49107
COVER-EXHAUST PIPE
49107-0112
$117.41
92022
WASHER,PLAIN
92022-3026
$3.60
92065
GASKET,12.5X18X1,DRAIN PLUG
92065-073
$4.07
92152
COLLAR
92152-0620
$4.69
92153
BOLT
92153-1813
Unavailable
92153A
BOLT,SOCKET,6X14
92153-1886
$2.97
92161
DAMPER
92161-0306
$5.65
92161A
DAMPER
92161-0336
$5.65
92171
CLAMP
92171-0139
Unavailable
92171A
CLAMP,43MM
92171-0752
$19.42
92172
SCREW,6X10
92172-0097
$2.43
92200
WASHER,6.5X16X1.0
92200-3712
$3.73
92210
NUT,FLANGED,LOCK,8MM
92210-0493
$7.60
92210A
NUT,CAP,8MM
92210-1132
$4.18
