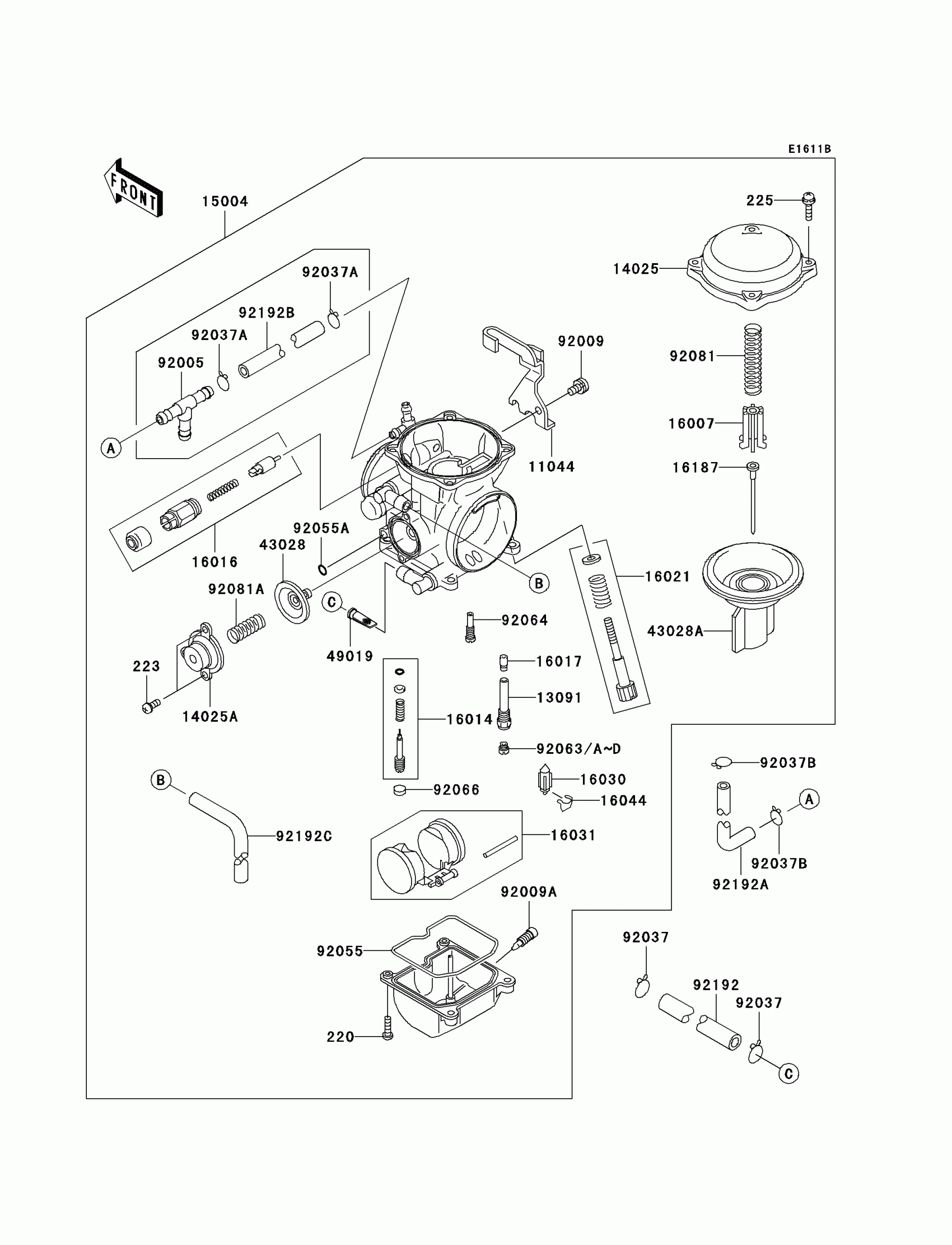

Kawasaki KLR™650 Carburetor(EAF)(CA) Diagram
#
11044
BRACKET,THROTTLE CABLE
11044-1353
$59.62
13091
HOLDER,NEEDLE JET
13091-1425
$29.68
14025
COVER,MIXING CHAMBER
14025-1890
$77.81
14025A
COVER,AIR CUT VALVE
14025-1903
$58.45
15004
CARBURETOR-ASSY,CVK40
15004-0072
$774.13
16007
SEAT-SPRING,DIAPHRAGM VALVE
16007-1113
$20.77
16014
SCREW-PILOT AIR
16014-1083
$22.90
16016
PLUNGER
16016-1087
$88.75
16017
JET-NEEDLE,#6
16017-1254
Unavailable
16021
SCREW-THROTTLE STOP
16021-1201
$46.93
16030
VALVE-FLOAT
16030-1057
$47.13
16031
FLOAT
16031-1077
$53.59
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16187
NEEDLE-JET,N6NJ
16187-0275
$36.91
43028
DIAPHRAGM,5.9MM,AIR CUT VALVE
43028-1053
Unavailable
43028A
DIAPHRAGM,VALVE
43028-1062
$210.38
49019
FILTER-FUEL
49019-1097
$9.23
92005
FITTING,FUEL,T-TYPE
92005-1112
$14.10
92009
SCREW,5X10
92009-1365
$7.34
92009A
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92037
CLAMP,12.5MM
92037-1271
$2.79
92037A
CLAMP,TUBE
92037-1477
$4.31
92037B
CLAMP
92037-1610
$2.00
92055
RING-O,FLOAT CHAMBER
92055-1222
$17.44
92055A
RING-O
92055-1245
$5.57
92063
JET-MAIN,#140
92063-1013
$14.10
92063A
JET-MAIN,#142
92063-1016
$14.10
92063B
JET-MAIN,#145
92063-1017
$14.10
92063C
JET-MAIN,#148
92063-1324
$14.10
92063D
JET-MAIN,#150
92063-1330
$14.10
92064
JET-PILOT,#40
92064-1108
$17.03
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92081
SPRING,DIAPHRAGM VALVE
92081-1718
$27.69
92081A
SPRING,AIR CUT VALVE
92081-1719
$12.62
92192
TUBE,FUEL,6.2X13.2X170
92192-0453
$27.47
92192A
TUBE,5X9X40&20
92192-0480
$17.13
92192B
TUBE,L=70
92192-0588
$15.35
92192C
TUBE,L=360
92192-0589
$29.37
220
SCREW-PAN-CROS,4X14
220AA0414
$4.60
223
SCREW-PAN-WS-CROS,4X8
223C0408
$1.20
225
SCREW-PAN-WSP-CROS,4X18
225AB0418
$4.34
