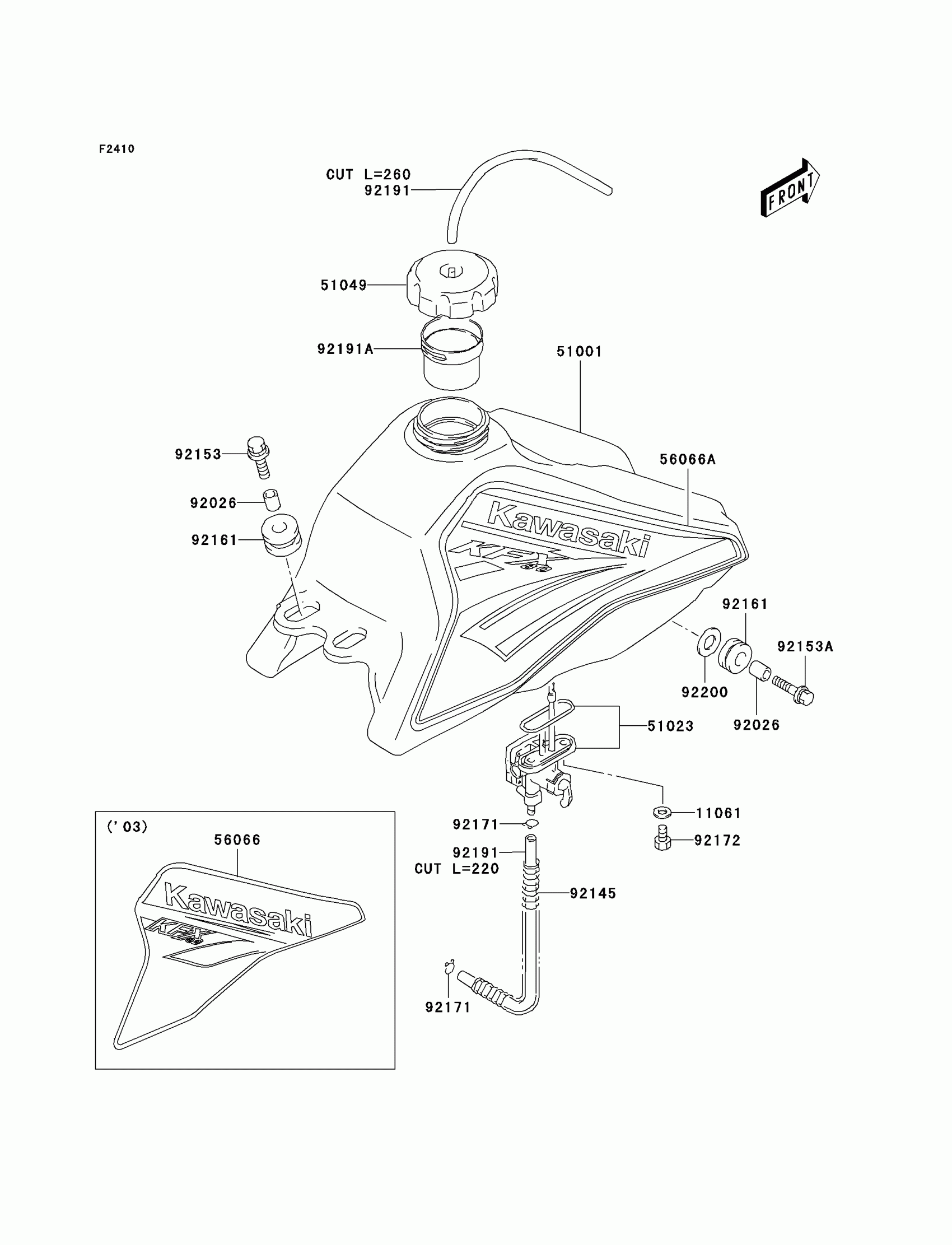

Kawasaki KFX80 Fuel Tank(KSF80-A1/A2) Diagram

Description

Price

11061

GASKET,6.4X11.5X0.8

11061-S002

$4.20

51001

TANK-COMP-FUEL,BLACK

51001-S006-504

$324.14

51023

TAP-ASSY

51023-S006

$124.76

51049

CAP-TANK

51049-S007

$46.69

56066A

PATTERN,SET,WHI/GLD/BLK/GRN

56066-S018-553

$126.78

92026

SPACER,FOOTREST

92026-S057

$3.19

92145

SPRING,FUEL HOSE

92145-S080

$4.69

92153

BOLT,FUEL TANK

92153-S222

$3.01

92153A

BOLT,FUEL TANK

92153-S223

$3.44

92161

DAMPER,FUEL TANK

92161-S076

$2.53

92171

CLAMP,OIL HOSE

92171-S062

$1.74

92172

SCREW,FUEL COCK

92172-S151

$2.16

92191

TUBE,FUEL TANK BREATHER

92191-S028

$9.59

92191A

TUBE,FUEL TANK FILLER

92191-S029

$8.18

92200

WASHER,FOOTREST

92200-S093

$3.12
