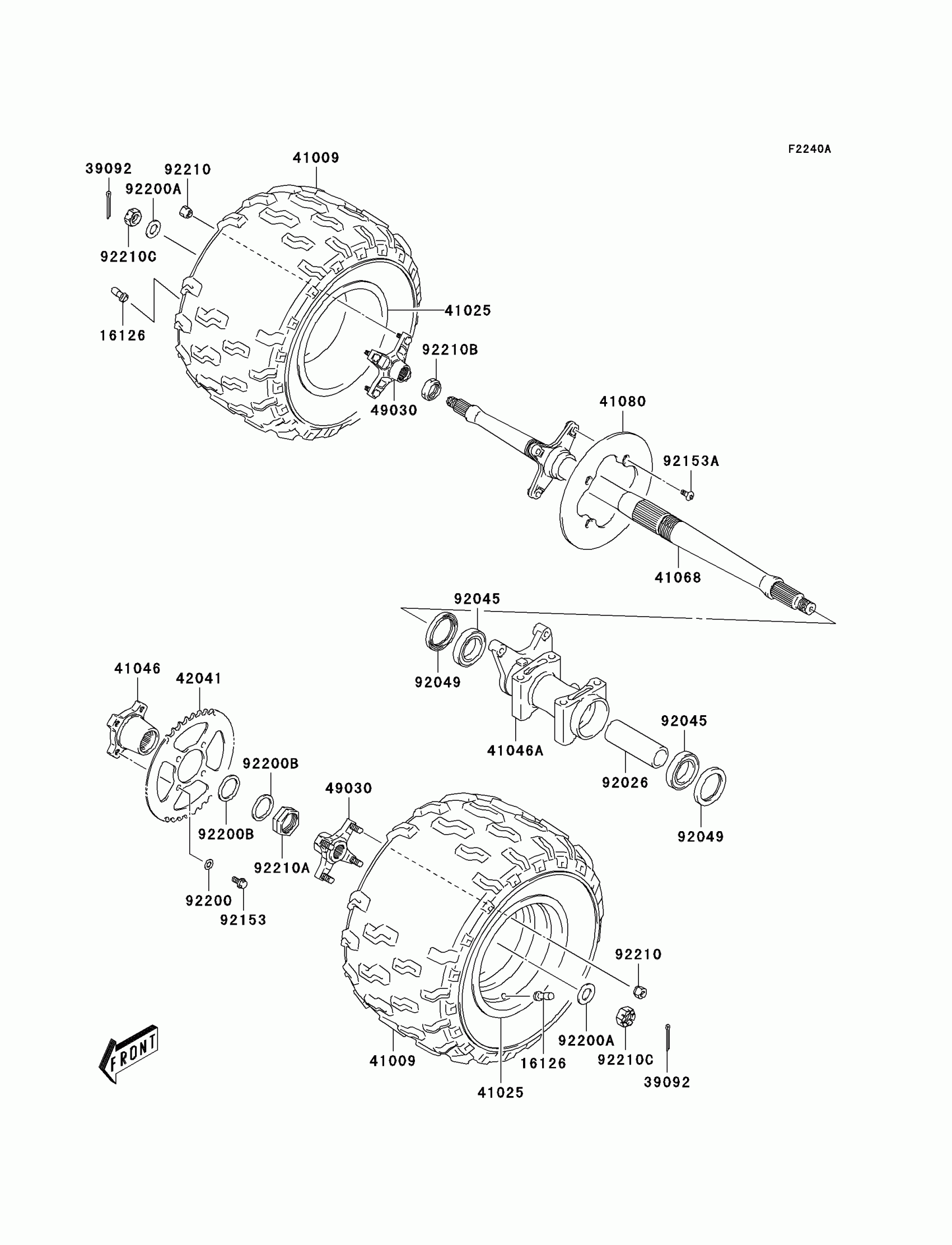

Kawasaki KFX400 Rear Hub(A2) Diagram

#

Description
Price

16126

VALVE,WHEEL RIM,TR412

16126-S002

$10.42

39092

PIN-HAIR,REAR HUB

39092-S010

Unavailable

41009

TIRE,RR

41009-S013

Unavailable

41025

RIM,REAR WHEEL,9X8.0AT

41025-S009

$414.10

41046

HOUSING-BEARING

41046-S004

$147.24

41046A

HOUSING-BEARING

41046-S006

$180.14

41068

AXLE,RR

41068-S015

$655.42

41080

DISC,REAR BRAKE

41080-S006

$181.20

42041

SPROCKET-HUB

42041-S006

$63.35

49030

HUB,RR,F.GRAY

49030-S004-563

$180.65

92026

SPACER,REAR AXLE

92026-S106

$50.29

92045

BEARING-BALL,REAR AXLE

92045-S049

$46.11

92049

SEAL-OIL,AXLE

92049-S052

$22.34

92153

BOLT,REAR SPROCKET

92153-S277

$5.03

92153A

BOLT

92153-S283

$4.60

92200

WASHER,REAR SPROCKET

92200-S139

$4.56

92200A

WASHER,REAR HUB

92200-S141

$4.22

92200B

WASHER,REAR AXLE

92200-S143

$6.47

92210

NUT,WHEEL

92210-S100

$2.53

92210A

NUT,REAR AXLE

92210-S109

$45.61

92210B

NUT,REAR AXLE

92210-S110

$22.59

92210C

NUT,REAR HUB

92210-S113

$6.25
